WORKING RANGE -MILLING-
x-axis traverse (110.32 " ) 2800 mm
y-axis traverse ( 78.8 " ) 2000 mm
z-axis traverse ( 78.8 " ) 2000 mm
w-axis traverse (16.548 " ) 420 mm

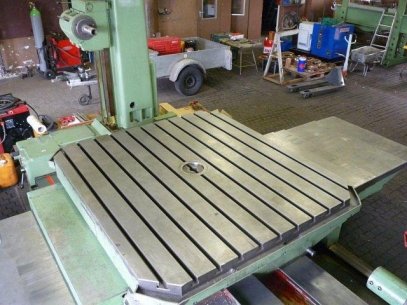

TABLE
clamping surface (left-right) ( 78.8 " ) 2000 mm
clamping surface (front-back) ( 70.92 " ) 1800 mm
rotation 360 °

WORKING SPINDLE /HEAD
spindle revolutions (min) 3.55 /min
spindle revolutions (max) 710 /min
number of gears 3
spindle diameter ( 4.925 " ) 125 mm
tool fixture ISO SK 50

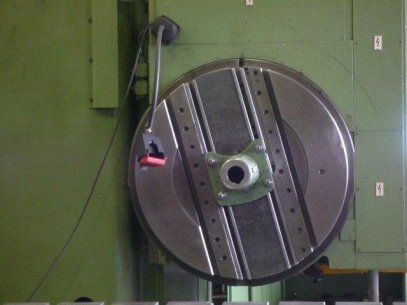

FACING PLATE (BORING MILL)
facing plate diameter (30.929 " ) 785 mm
spindle revolutions (min) 3.55 /min
spindle revolutions (max) 140 /min

DIMENSIONS / WEIGHTS
space requirements length (311.26 " ) 7900 mm
space requirements width (173.36 " ) 4400 mm
total height (191.88 " ) 4870 mm
total weight approx. ( 78278 lb ) 35500 kg

-
