turning diameter 480 mm
turning length 1000 mm

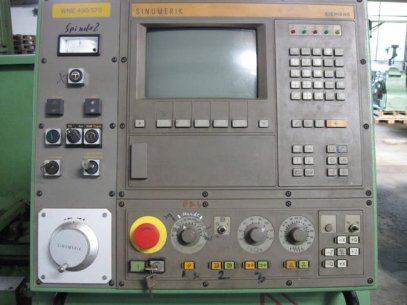

control Sinumerik 810 T
centre height 240 mm
greates pass round over bed 490 mm
swing diameter over face slide 195 mm
bed width 350 mm
spindle head DIN 55026/Gr.6
max. torque 736 Nm
turning speed range 16 - 3150 U/min
fuse protection -thermal 80 A
connected load 30 kW
rapid power traverse in X-and Z direction 7,5 m/min
feed in x and z - axis 1 - 7500 mm/Min.
spindle bore 63 mm
total power requirement 22 kW
weight of the machine ca. 3,2 t
dimensions of the machine ca. 3,0 x 2,1 x 1,8 m
Machinefeets
Electric 380 Volt
Cooling equipment
Electr. handwheel
Hydraulic-device

instruction handbook and instruction for the program
accessoirres : with control "Sinumerik 810 T"
Roehm-cluck diameter: DURO 250, push on jaws (hard and soft)
div. tool receiving
following and fixed centers
