turning diameter over bed 800 mm
turning diameter over slide rest 530 mm
turning length 2500 mm
turning diameter in the slot 920 mm
center height over bed 365 mm
bed width 710 mm
spindle head DIN 55022/11
spindle bore 90 mm
total power requirement 18,5 kW
weight of the machine ca. 8,6 t
dimensions of the machine ca. 6,52 x 1,6 x 1,5 m
Electric 380 Volt
Separate foot motor

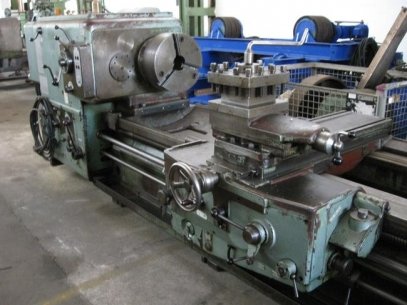

3-jaw chuck Forkardt F 400
Faceplate 800 mm diameter
Fourfold tool holder
Machinelight
1 Fixed steady passage 500 mm
1 Fixed steady passage 260 mm
1 Following steady passage 180 mm
2 boring bars

Machine in heavy carrying out.

Workpiece weights:
without rest to 4000 kg
with 1 rest to 5000 kg
with 2 rests to 6300 kg
