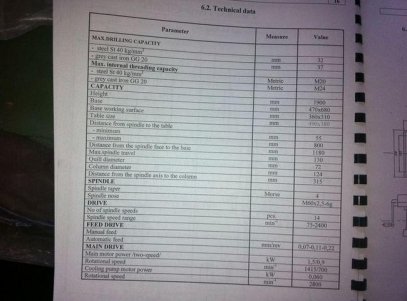

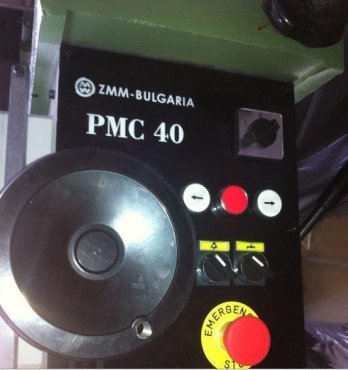

Machine is like new. Technical Data: Type: PMC 40 dB (A) I speed: 71 II: 71.53 thousand kilograms Max Drilling Capacity Steel St 40 kg / mm: 32 mm gray cast iron GG-20: 37 mm Maximum Internal Threading capacity: - steel St 40 kg / mm: M20 Metric gray cast iron GG 20: M24 Metric CAPACITY: Height: 1900mm Base: 470x680 mm Base working surface: 360 x 310 mm Table size: 490 x 380 mm Distance from spindle to the table - minimum: 55 mm maximum: 800 mm Distance from the spindle face to the base: 1180 mm Max spindle travel: 124 mm Distance from the column axis to the spindle: 130 mm Quill diameter: 72 mm Column diameter 315 mm Spindle: Spindle taper: 4 Morse Spindle nose: M60x2 ,5-6g DRIVE: No. of spindle speeds: 14 pcs. Spindle speed range: 75-2400 min-1 FEED DRIVE: Manual feed: Automatic feed: 0.07 0.11 0.22 mm / rev MAIN DRIVE: Main motor power / two-speed / 1.5 / 0.9 Rotational speed kW: 1415/700 min -1 cooling pump motor power: 0,060 kW Rotational speed: 2800 min-1 Supply voltage characteristics: voltage supply system: DD Rated voltage: 400V 3% - 10% Number of phrases: 3 Frequency : 50 Hz + / - 1 Hz data Environment: Humidity: Lower than 85% Altitude: 1000m Ambient temperature: 0-35 C Electrical equipment protection: rated current setting (A): 4 to 6.3 Switching off value 400 V ( KA): 6 415 V Switching off value (KA): 6 440 V Switching off value (KA): 3.5 I th (A): 4 to 6.3 Current value activating the automatic masts
