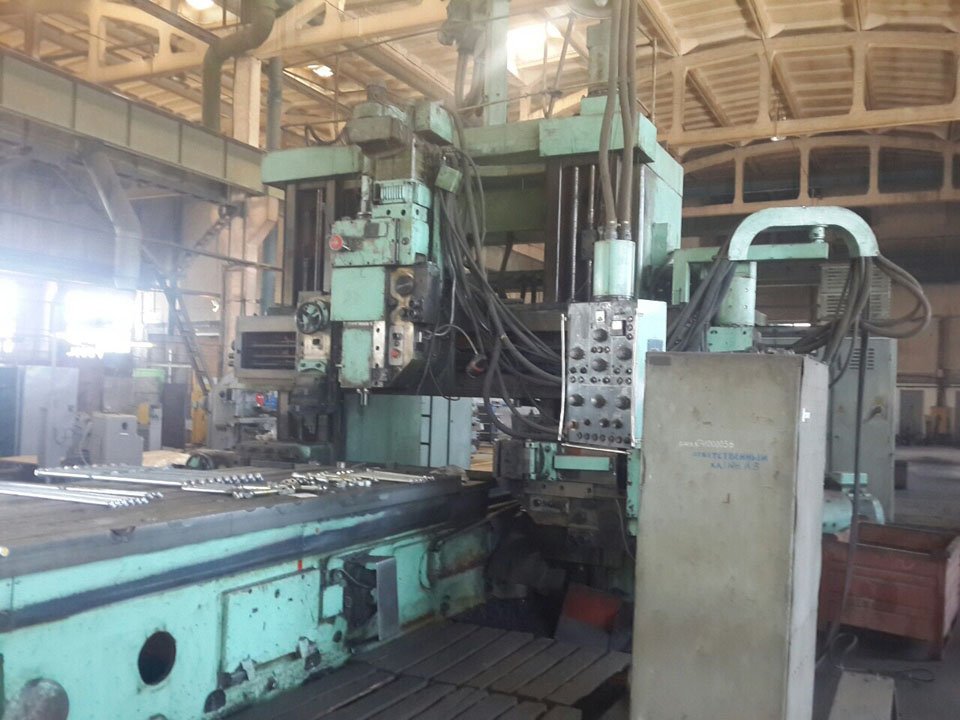

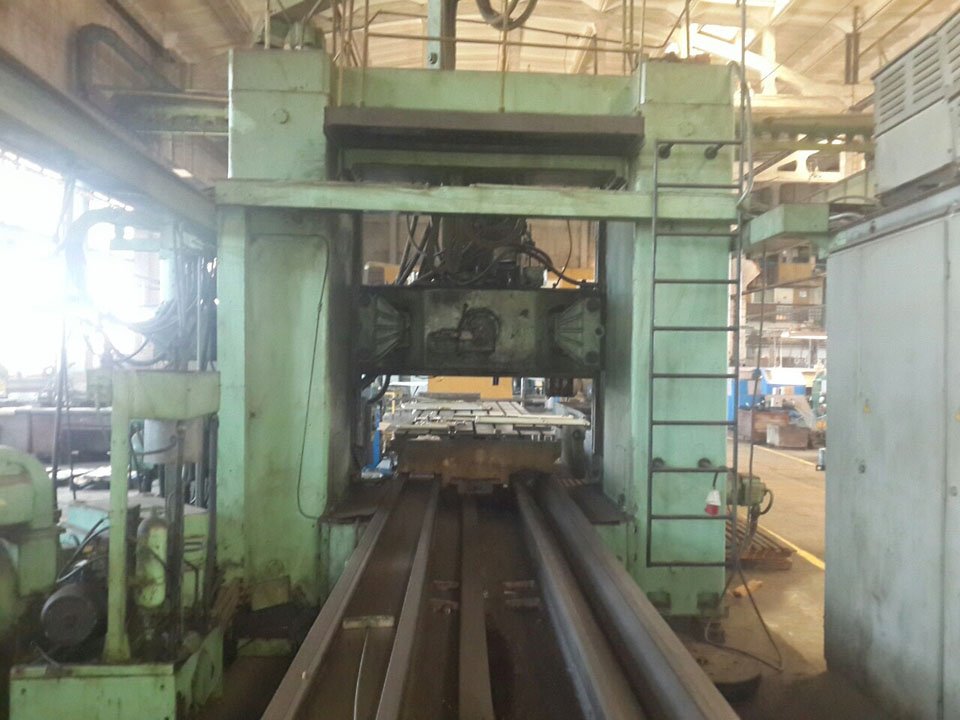

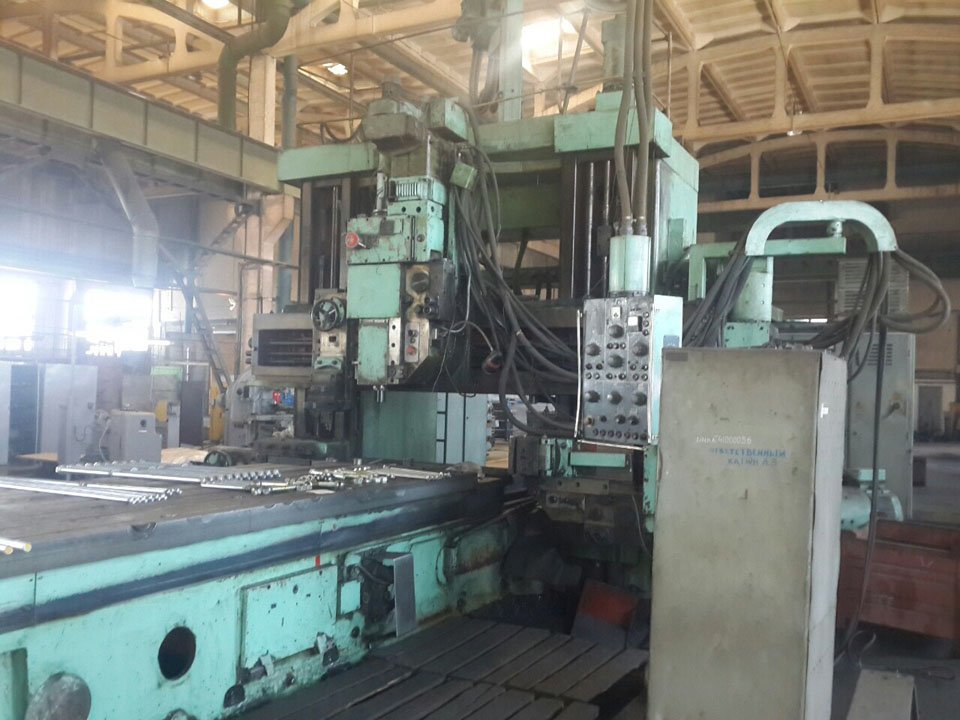

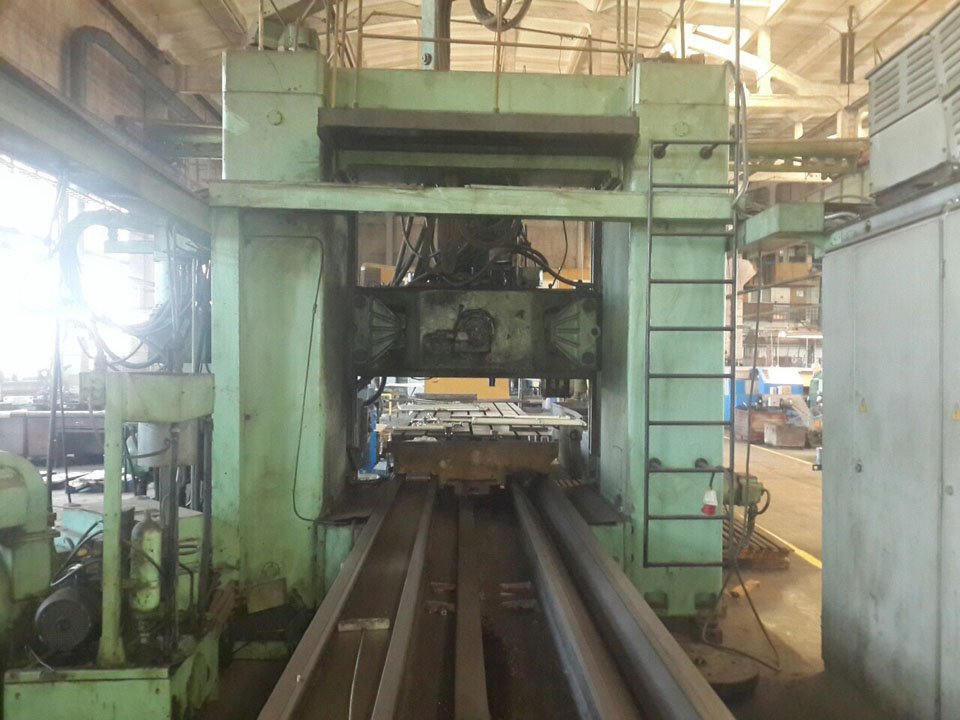

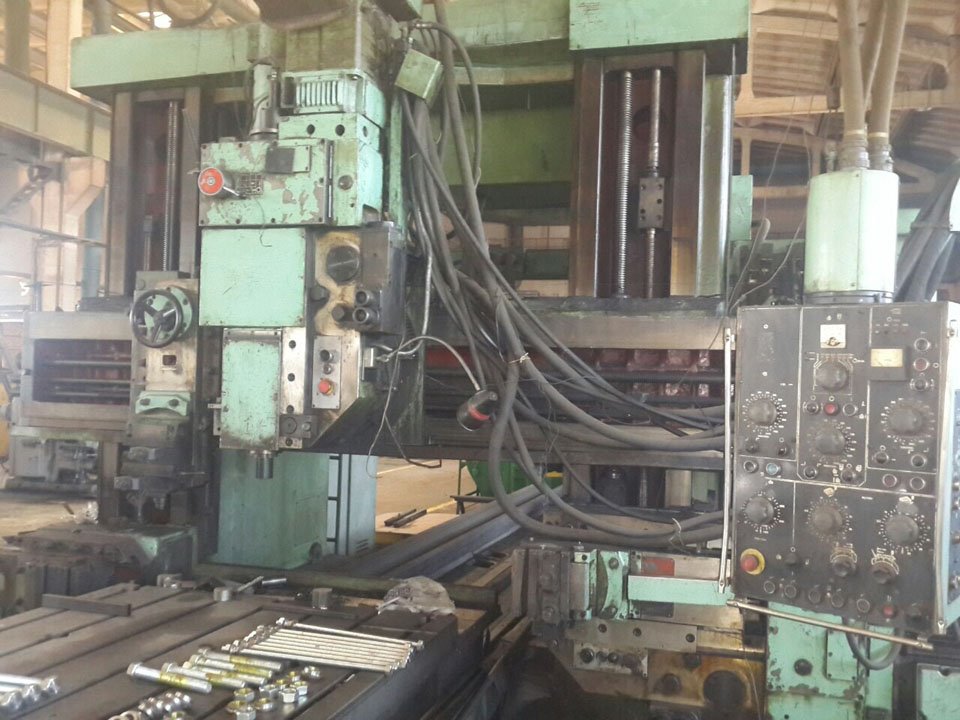

Longitudinal planing machine 7B216 made in Belarus.
Specifications:
Max. work-piece:
-Width: 1600 mm
-Height: 1400 mm
Dimensions of working table surface:
-Width: 1400 mm
-Length: 6000 mm
Max. work-piece weight on 1000 mm table length: 2500 kg
Range of table travel speed: 2000-80000 mm/min
Range of working feeds:
=Of supports: 0,2-32 mm/table stroke
-Of slides: 0,2-16 mm/table stroke
Range of spindle revs:
-Vertical (stepless): 5-1800 rpm
-Horizontal (4 speeds): 100, 200, 500, 1000 rpm
Range of working feeds at milling:
-Of table: 20-10000 mm/min
-Of milling headstocks: 5-1250 mm/min
-Of slides: 5-1250 mm/min
Max. spindle torque: 2 kgm
Stroke of slides: 300 mm
Main drive power of:
-Table: 90 kW
-Vertical spindle: 30 kW
-Horizontal spindle: 22/26 kW
