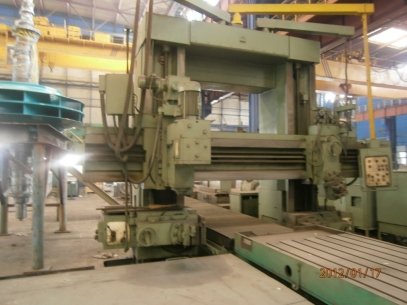

TECHNICAL DATA FOR THE PORTAL PLANNING AND MILLING
MODEL HZF 1600 X 1250 X 5000/4
Planning width 1600 mm
Milling width 1250 mm
Planning height 1250mm
Milling height 1000mm
Planning and Milling length 5000mm
Distance between columns 1790mm
Max. height under cross rail 1260mm
Machine total length 14400mm
Machine total width 5750mm
Machine total height 4570mm
Machine total weight ab. 47000 kg
Bed width 1000mm
TABLE
Length 6450mm
Width 1250mm
Min/max stroke 1000/5800mm
Clamping surface 5250x1250mm
Number of T-channels 8
Max. weight of work piece
On table 15.750 kg
Table feed (continuous) 5,6…80m/min
MILLING HEAD
Milling feed 25…2500mm/min
Rapid feed 10.000mm/min
Motor power 10 kw
PLANNING HEAD ON CROSS RAIL
Continuous Horizontal feed 0,1…32mm/str.
Continuous Vertical feed 0,05…16mm/str.
Rotation of the head +/- 600
Cutting tool dimension 70x70mm
PLANNING HEAD ON COLUMN
Continuous Horizontal feed 0,1…10mm/str.
Continuous Vertical feed 0,1…10mm/str.
Rotation of the head +/- 600
Cutting tool dimension 70x70mm
