For Sale Listings

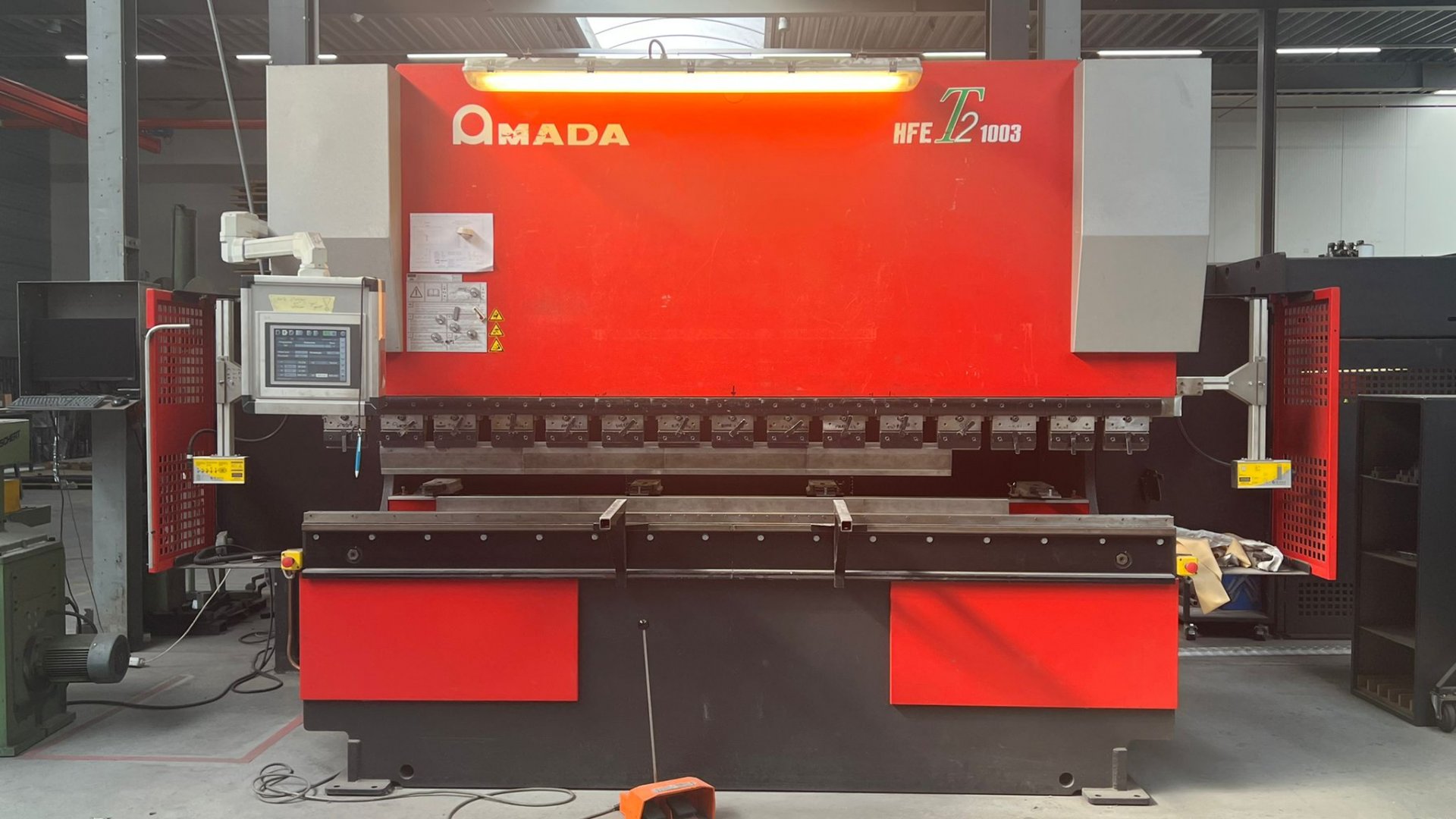

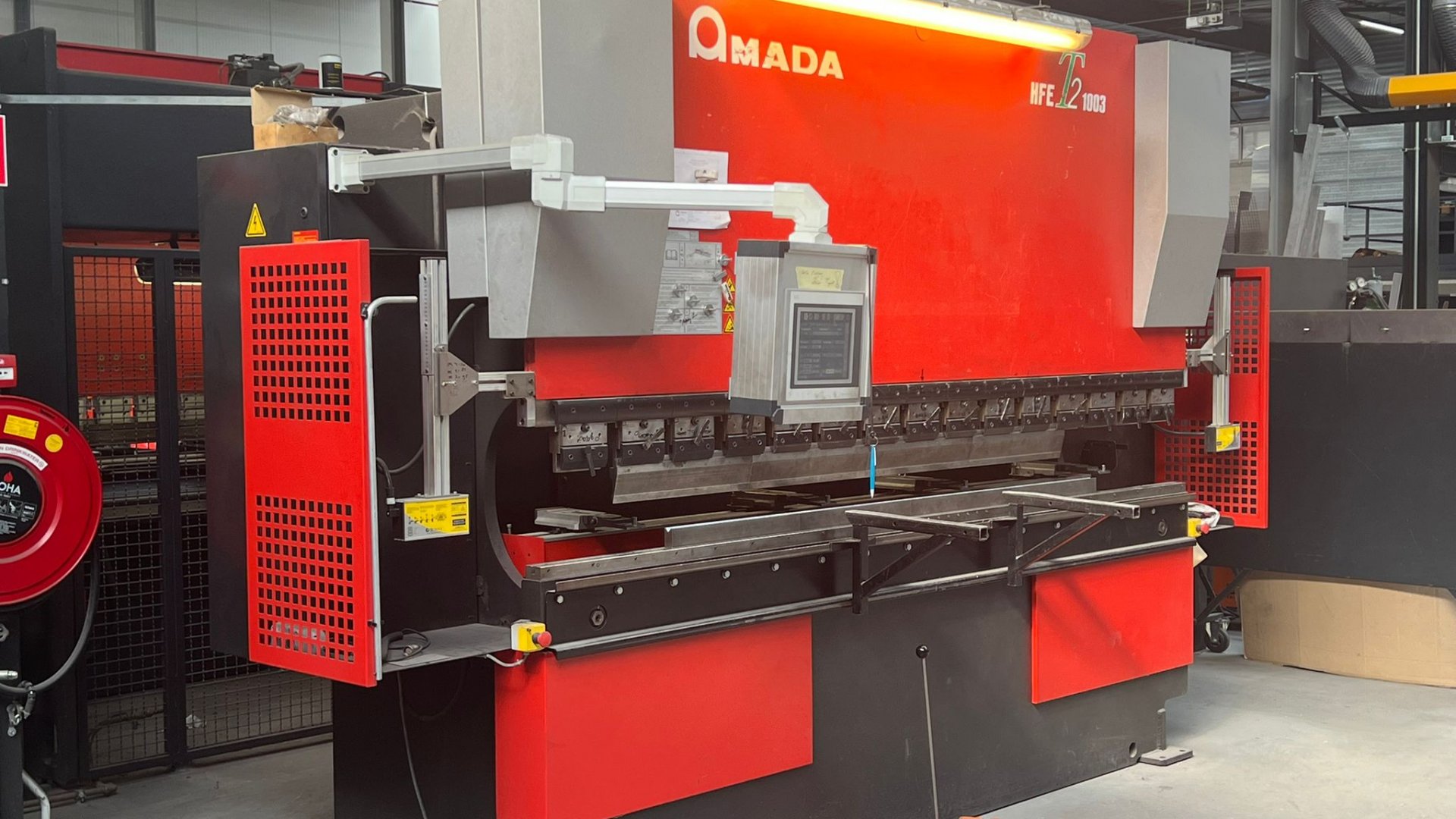

AMADA, HFE T2 1003, HYDRAULIC, PRESS BRAKES
  • Condition:Used
  • Category:PRESS BRAKES
  • Type:HYDRAULIC
  • Manufacturer:AMADA
  • Model:HFE T2 1003
  • YOM:2014
  • Location:Netherlands, BABBERICH
  • Price:On request
  • Stock No:7020
  • Control:CNC
  • ID:AS29256
Description:
Max. bending length: 3110mm
Distance between column: 2705mm
Max. pressing force: 100T
Dis. Beam - Table: 470mm
Beam stroke: 200mm
Troth beam: 420mm
Approch speed: 100mm/min.
Working speed: 10mm/min.
Return speed: 100mm/min.
Adjustment X-Axis back gauge:1000mm
Number of controlled axis: 4 (Y/X/R/Z-Axis)
Control: AMADA AB Pad 10,4" TOUCH
Power: 10,5kW
Height: 2700mm
Width: 2430mm
Length: 4400mm
Weight: 6100kg
Specifications:
Max. bending length: 3110mm
Distance between column: 2705mm
Max. pressing force: 100T
Dis. Beam - Table: 470mm
Beam stroke: 200mm
Troth beam: 420mm
Approch speed: 100mm/min.
Working speed: 10mm/min.
Return speed: 100mm/min.
Adjustment X-Axis back gauge:1000mm
Number of controlled axis: 4 (Y/X/R/Z-Axis)
Control: AMADA AB Pad 10,4" TOUCH
Power: 10,5kW
Height: 2700mm
Width: 2430mm
Length: 4400mm
Weight: 6100kg
Dealer name:
Mach4Metal Netherlands, Babberich
