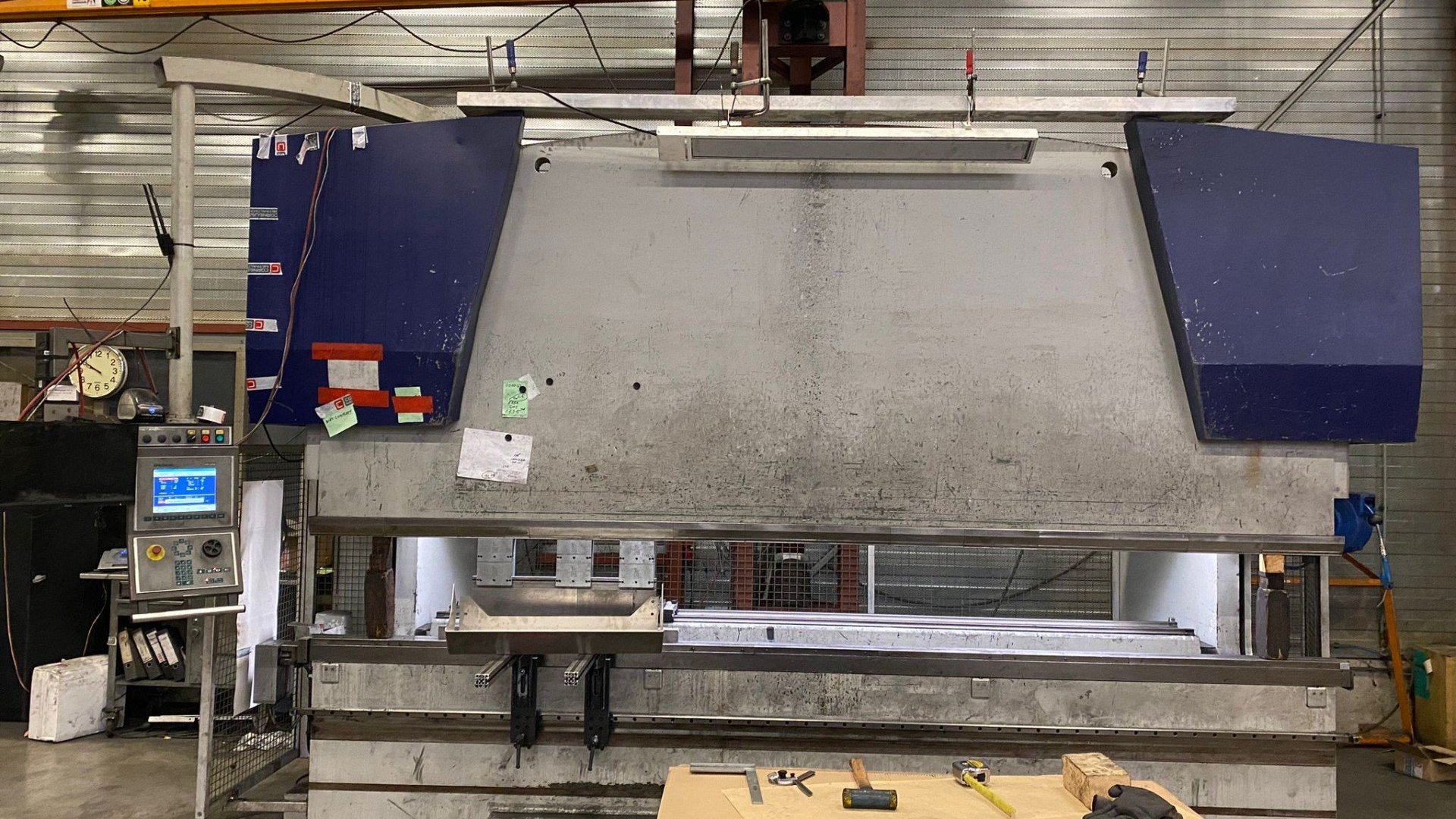

Pressbrake

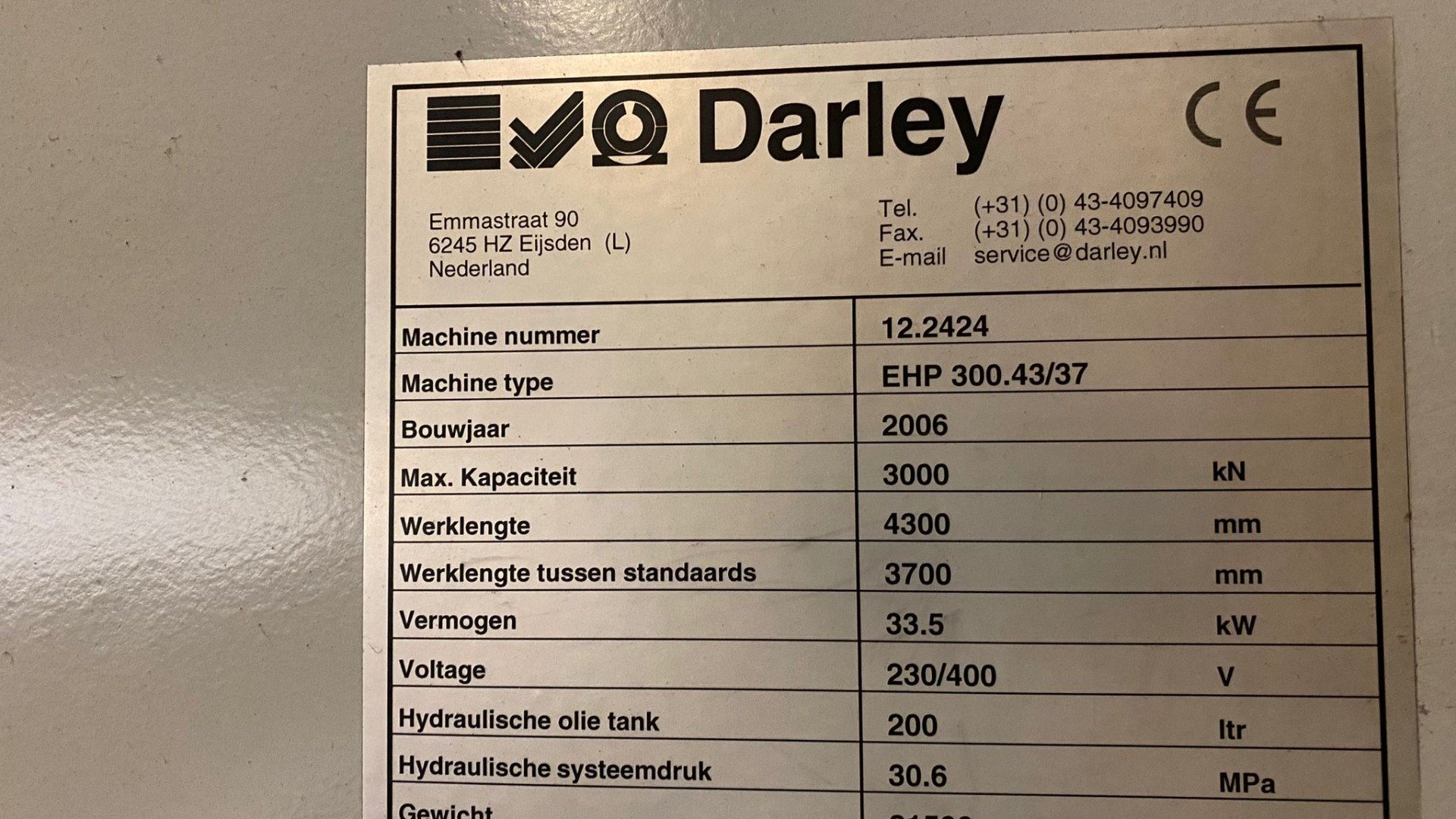

DARLEY - EHP 300 43/37 Max. bending length: 4300mm
Distance between column: 3700mm
Max. pressing force: 300T
Dis. Beam - Table: 485mm
Beam stroke: 300mm
Table Width: 250mm
Troth beam: 400mm
Approch speed: 80mm/min.
Working speed: 10mm/min.
Return speed: 80mm/min.
Adjustment X-Axis back gauge:1000mm
Number of controlled axis: 5
Crowning: Yes
Hydraulic toolclamping: Yes
Power: 33,5kW
Length: 5200mm
Width: 2200mm
Height: 3600mm
Weight: 21500kg
