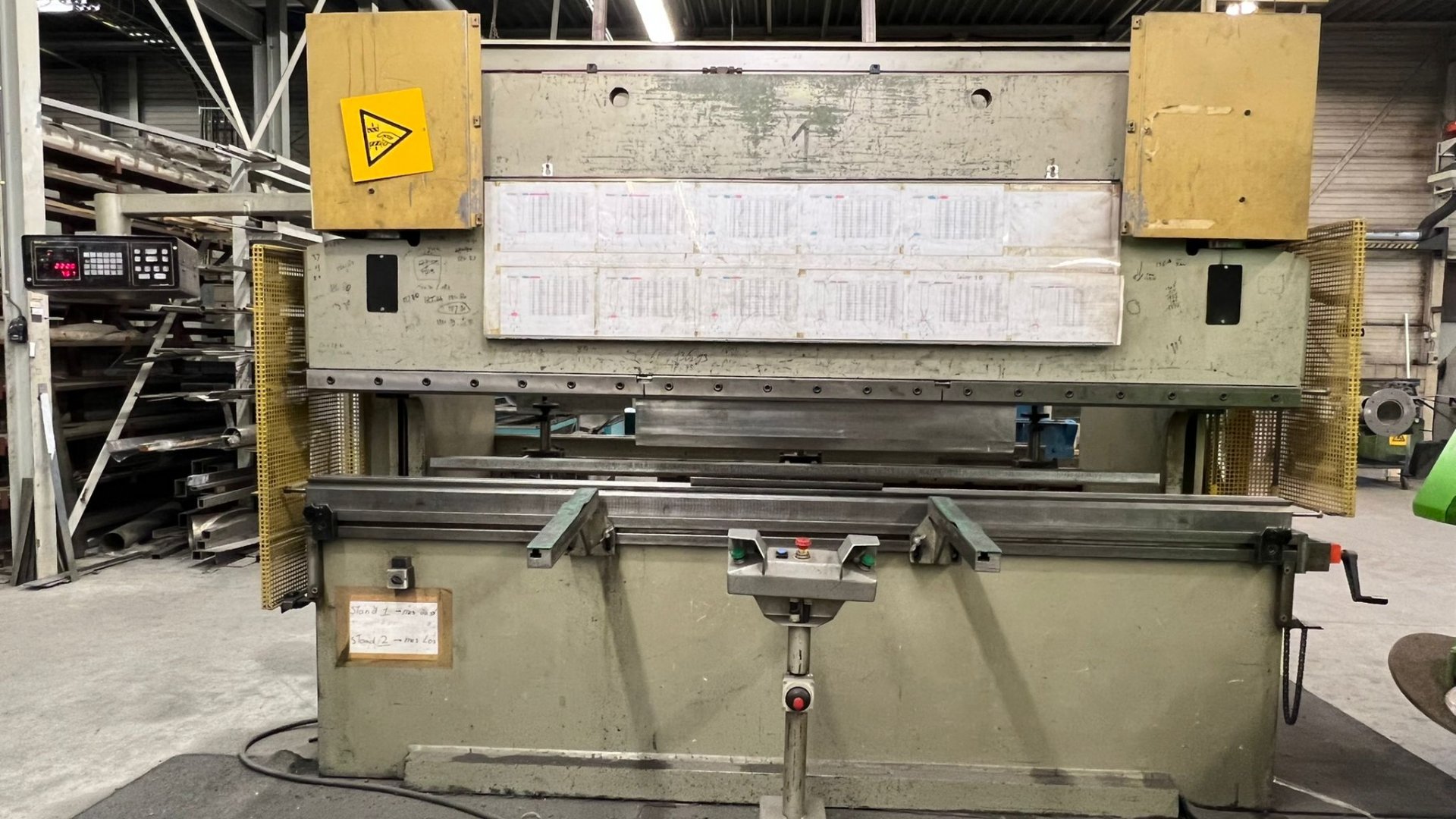

DARLEY, EHP 80/31, HYDRAULIC, PRESS BRAKES

Condition:-
Category:PRESS BRAKES
Type:HYDRAULIC
Manufacturer:DARLEY
Model:EHP 80/31
YOM:1987
Location:Netherlands, BABBERICH
Price:On request
Stock No:6892
Control:NC
ID:AS29202

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

DARLEY - EHP 80 / 31 Hydraulic Pressbrake 3100 x 80 T 6892 = Mach4metal
hydraulic tool clamping
crowing device
several tools included ( upper knives)
Max. bending length: 3.100mm
Distance between column: 2.550mm
Max. pressing force: 80T
Dis. Beam – Table: 375mm
Beam stroke: 150mm
Table Width: 160mm
Troth beam: 250mm
Approch speed: 100mm/min.
Working speed: 8,5 mm/min.
Return speed: 62mm/min.
Adjustment X-Axis back gauge:1.000mm
Number of controlled axis: 3
Crowning: Yes
Hydraulic toolclamping: Yes
Power: 5.5kW
Length: 3.220 mm
Width: 1.270 mm
Height: 2.440 mm
Weight: 8.150 kg

Specifications:

DARLEY - EHP 80 / 31 Hydraulic Pressbrake 3100 x 80 T 6892 = Mach4metal
hydraulic tool clamping
crowing device
several tools included ( upper knives)
Max. bending length: 3.100mm
Distance between column: 2.550mm
Max. pressing force: 80T
Dis. Beam – Table: 375mm
Beam stroke: 150mm
Table Width: 160mm
Troth beam: 250mm
Approch speed: 100mm/min.
Working speed: 8,5 mm/min.
Return speed: 62mm/min.
Adjustment X-Axis back gauge:1.000mm
Number of controlled axis: 3
Crowning: Yes
Hydraulic toolclamping: Yes
Power: 5.5kW
Length: 3.220 mm
Width: 1.270 mm
Height: 2.440 mm
Weight: 8.150 kg

Dealer name:

Mach4Metal Netherlands, Babberich
