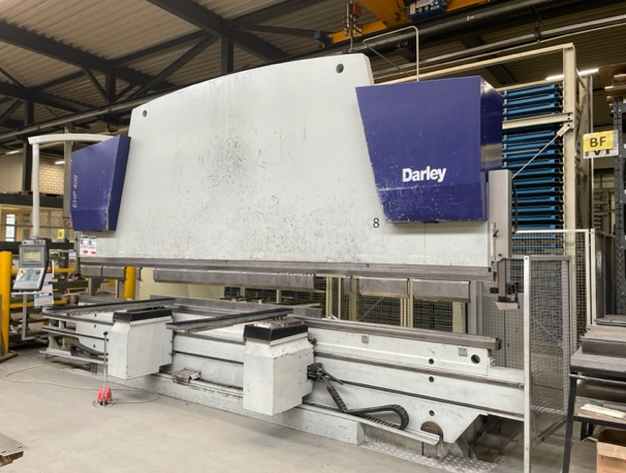

DARLEY, EHP-LS 400.62/51, HYDRAULIC, PRESS BRAKES

Condition:Used
Category:PRESS BRAKES
Type:HYDRAULIC
Manufacturer:DARLEY
Model:EHP-LS 400.62/51
YOM:2008
Location:Netherlands, BABBERICH
Price:On request
Stock No:7752

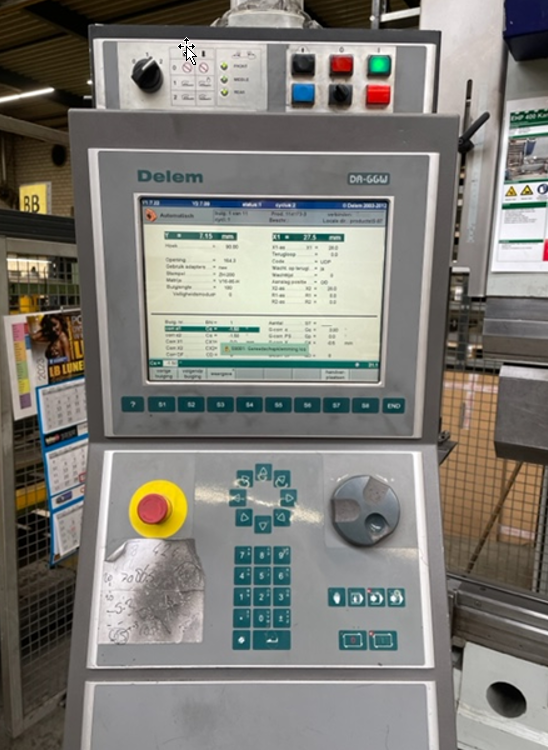

Control:CNC
ID:AS29599

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

Pressbrake
DARLEY - EHP-LS 400.62/51
MACH-ID 7752
CNC Crowning
Hydraulic tool clamping

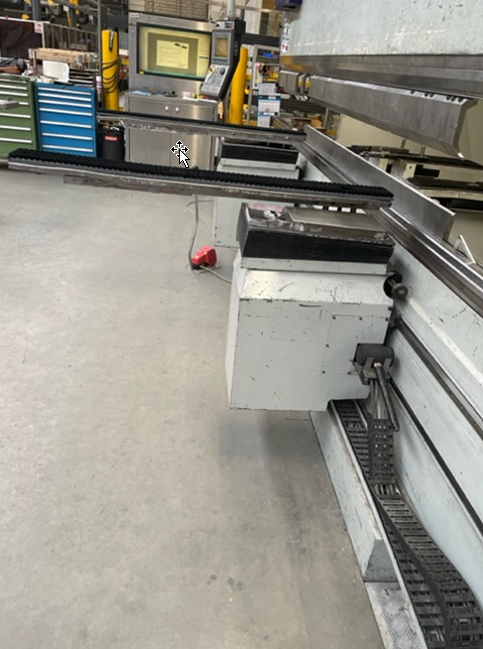

Bending help front arm over CNC

Max. bending length: 6200mm
Distance between column: 5100mm
Max. pressing force: 400T
Dis. Beam - Table: 675mm
Beam stroke: 500mm
Table Width: 300mm
Troth beam: 400mm

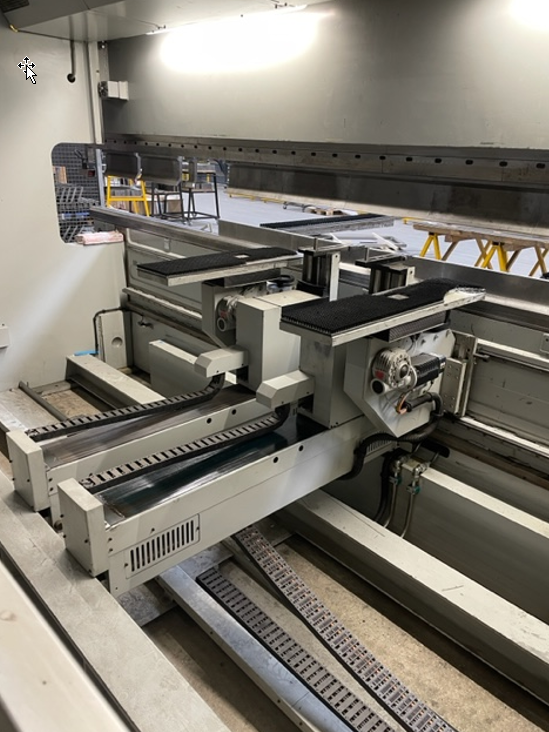

Adjustment X-Axis back gauge:1000mm
Number of controlled axis: 7
Crowning: Yes
Hydraulic toolclamping: Yes
Power: 65kW
Length: 8000mm
Width: 2800mm
Height: 3800mm
Weight: 45000kg

Specifications:

Pressbrake
DARLEY - EHP-LS 400.62/51
MACH-ID 7752
CNC Crowning
Hydraulic tool clamping
Bending help front arm over CNC

Max. bending length: 6200mm
Distance between column: 5100mm
Max. pressing force: 400T
Dis. Beam - Table: 675mm
Beam stroke: 500mm
Table Width: 300mm
Troth beam: 400mm
Adjustment X-Axis back gauge:1000mm
Number of controlled axis: 7
Crowning: Yes
Hydraulic toolclamping: Yes
Power: 65kW
Length: 8000mm
Width: 2800mm
Height: 3800mm
Weight: 45000kg

Dealer name:

Mach4Metal Netherlands, Babberich
