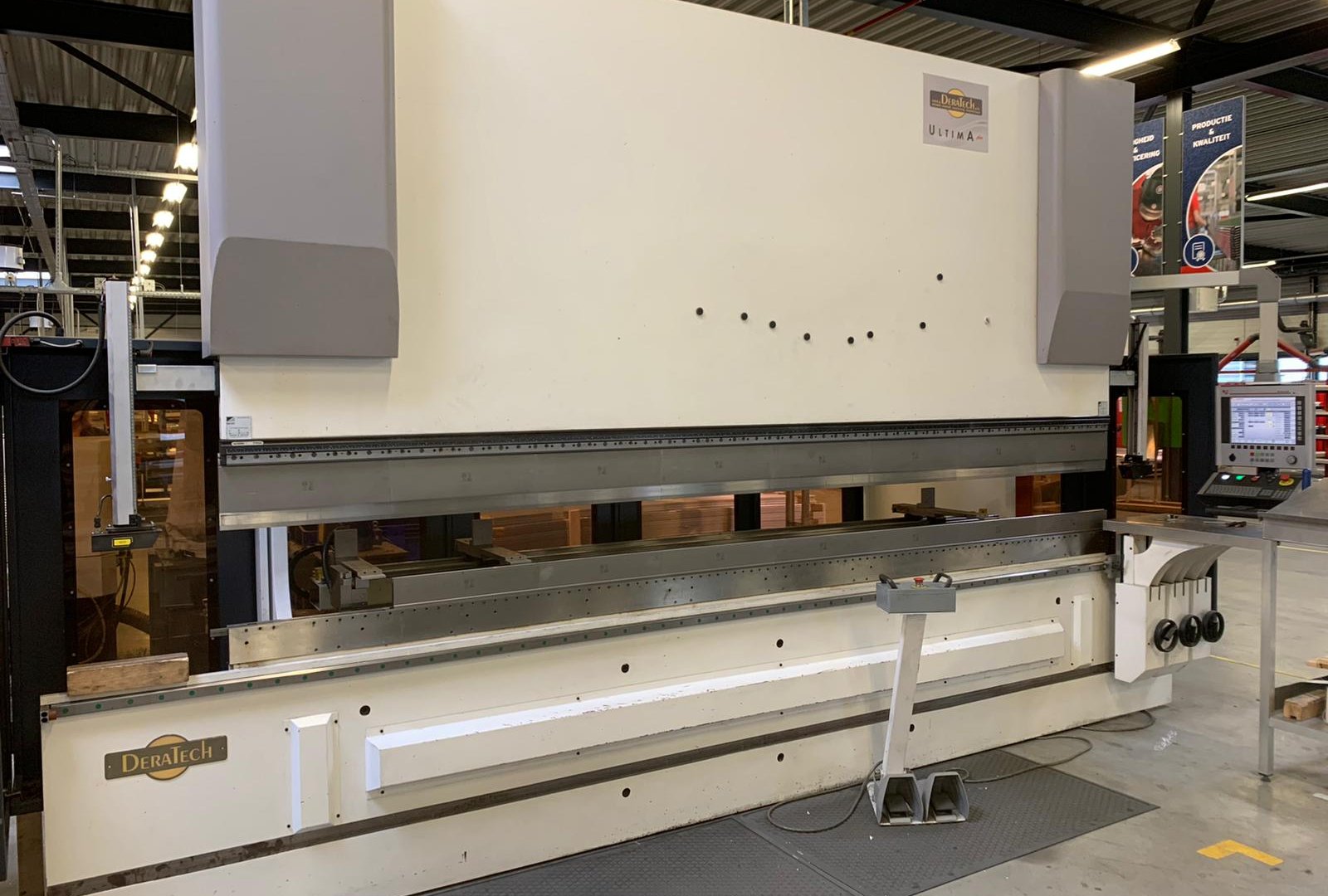

Press brake - DERATECH ULTIMA 130 – 4100 CNC Pressbrake 4100 x 110 T with Y1 / Y2 / X / R / V Axis
6041 = Mach4metal
Max. bending length 4.100 mm
Distance between column 3.600 mm
Max. pressing force 110 T
Dis. Beam – Table 440 mm
Beam stroke 250 mm
Troth beam 400 mm
Approch speed 200 mm
Working speed 10 mm
Return speed 165 mm

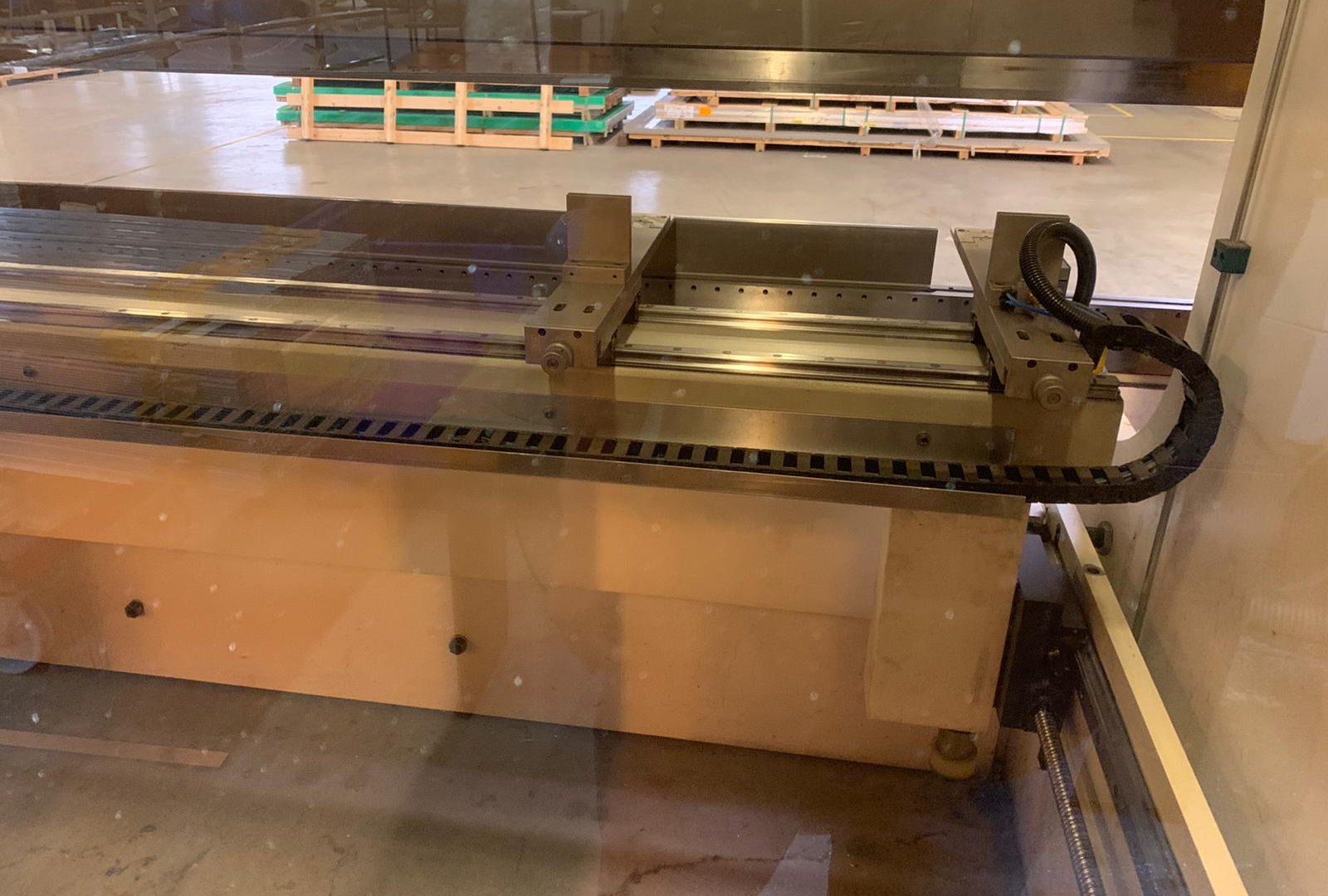

Adjustment X-Axis back gauge 1.000 mm
Number of controlled axisY1 / Y2 / X / Crowning

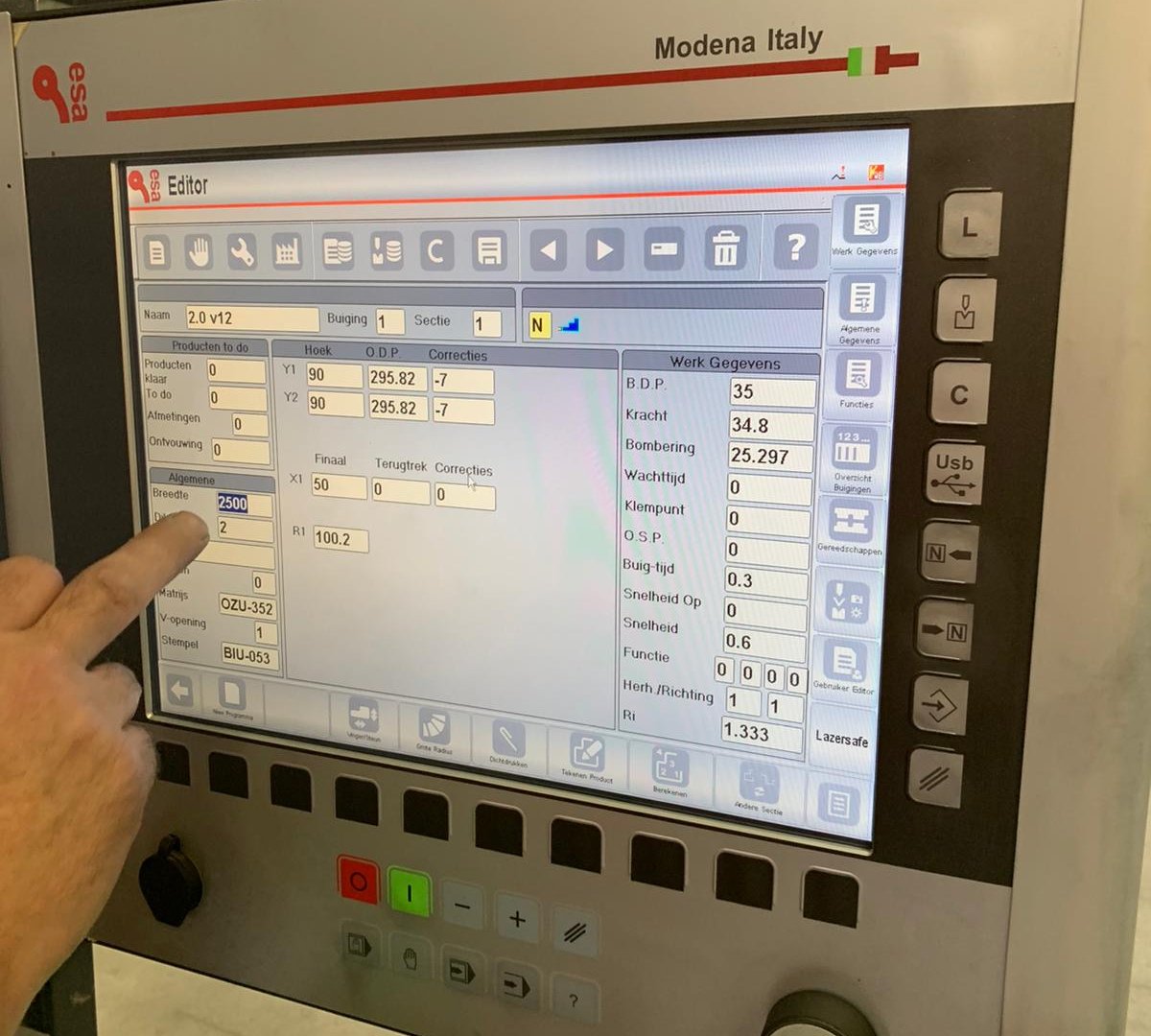

Control ESA 560
Crowning Yes
Power 11 kW
Specifications:
Press brake - DERATECH ULTIMA 130 – 4100 CNC Pressbrake 4100 x 110 T with Y1 / Y2 / X / R / V Axis
6041 = Mach4metal
Max. bending length 4.100 mm
Distance between column 3.600 mm
Max. pressing force 110 T
Dis. Beam – Table 440 mm
Beam stroke 250 mm
Troth beam 400 mm
Approch speed 200 mm
Working speed 10 mm
Return speed 165 mm
Adjustment X-Axis back gauge 1.000 mm
Number of controlled axisY1 / Y2 / X / Crowning
Control ESA 560
Crowning Yes
Power 11 kW
