ERMAKSAN, Micro-bend 1000/40, HYDRAULIC, PRESS BRAKES

Condition:Used
Category:PRESS BRAKES
Type:HYDRAULIC
Manufacturer:ERMAKSAN
Model:Micro-bend 1000/40
YOM:2016
Location:Netherlands, BABBERICH
Price:On request
Stock No:7372
Control:CNC
ID:AS29379

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

Pressbrake
ERMAK - MICRO-BEND 1000/40 Max. bending length: 1000mm
Distance between column: 800mm
Max. pressing force: 40T
Beam stroke: 100mm
Table Width: 90mm
Troth beam: 250mm
Approch speed: 110mm/min.
Working speed: 11mm/min.
Return speed: 105mm/min.

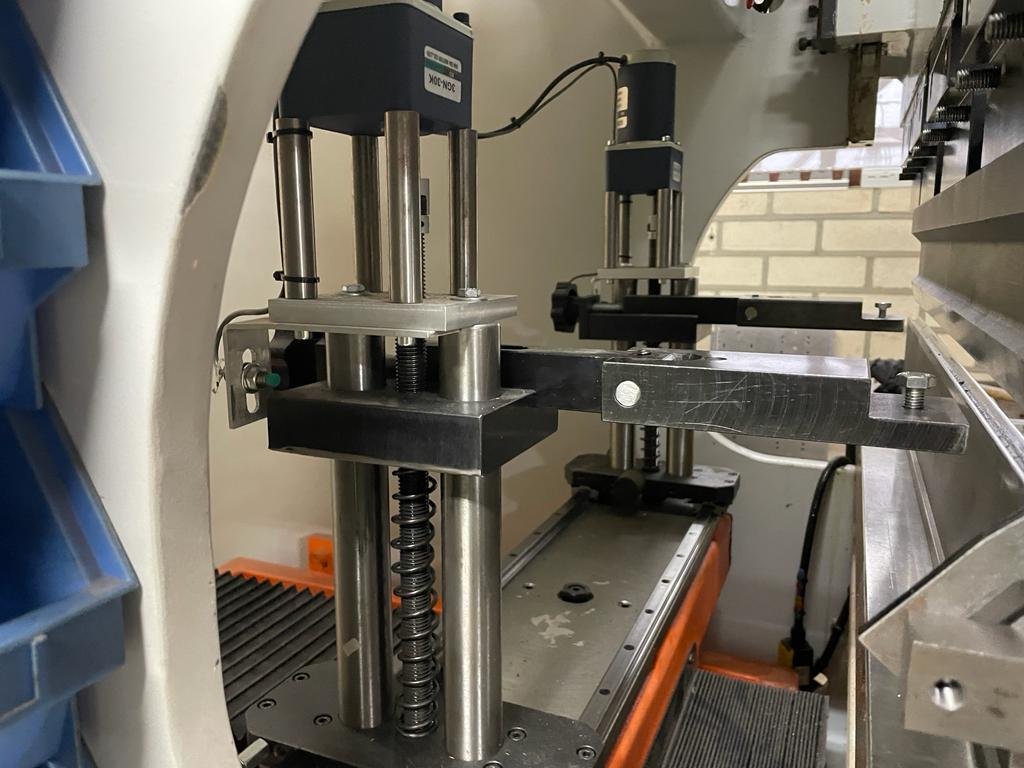

Adjustment X-Axis back gauge:1000mm
Number of controlled axis: 4
Power: 4,8kW
Length: 2300mm
Width: 1950mm
Height: 1860mm
Weight: 1850kg

Specifications:

Pressbrake
ERMAK - MICRO-BEND 1000/40 Max. bending length: 1000mm
Distance between column: 800mm
Max. pressing force: 40T
Beam stroke: 100mm
Table Width: 90mm
Troth beam: 250mm
Approch speed: 110mm/min.
Working speed: 11mm/min.
Return speed: 105mm/min.
Adjustment X-Axis back gauge:1000mm
Number of controlled axis: 4
Power: 4,8kW
Length: 2300mm
Width: 1950mm
Height: 1860mm
Weight: 1850kg

Dealer name:

Mach4Metal Netherlands, Babberich
