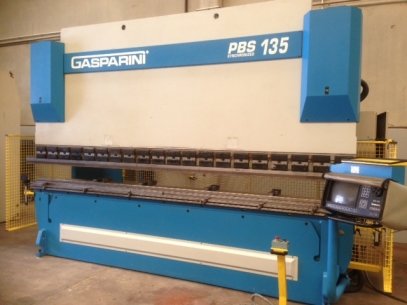

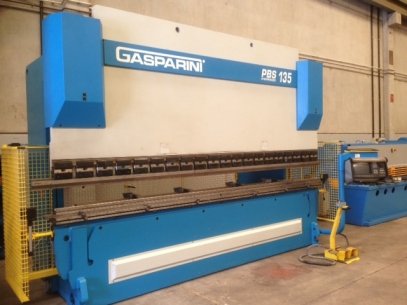

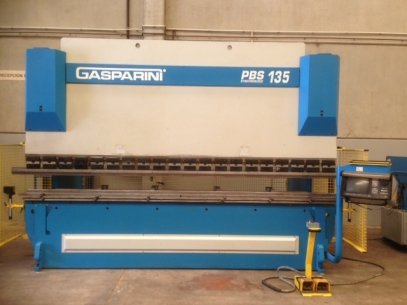

Press Brake CNC Gasparini 4 meters 135 tn, 4 axis CNC Delem DA 65
Bending length: 4100 mm.
Power: 135 Tn.

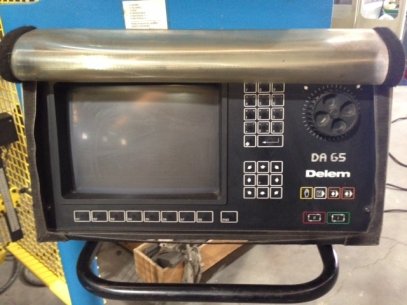

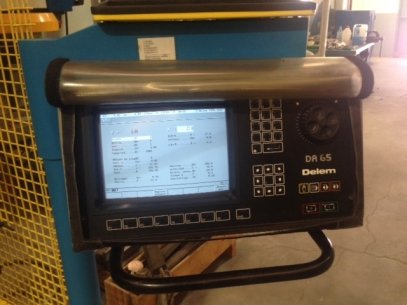

Control Delem DA 65
4 axes X, Y1, Y2, R
Return force: 120 kN
Maximum stroke: 250 mm.
Approach speed: 0 to 100 mm / s
Folding speed: 0 to 10 mm / s
Return speed: 0 to 120 mm / s
Distance between columns: 3600 mm.
Throat: 450 mm.
Height with open machine: 440 mm.
Power Output: 15 Kw
Weight: 14000 Kg.
Maximum operating pressure: 220 bar
Complete tooling
2001
CE
In perfect condition
Specifications:
Bending length: 4100 mm.
Power: 135 Tn.
Control Delem DA 65
4 axes X, Y1, Y2, R
Return force: 120 kN
Maximum stroke: 250 mm.
Approach speed: 0 to 100 mm / s
Folding speed: 0 to 10 mm / s
Return speed: 0 to 120 mm / s
Distance between columns: 3600 mm.
Throat: 450 mm.
Height with open machine: 440 mm.
Power Output: 15 Kw
Weight: 14000 Kg.
Maximum operating pressure: 220 bar
Complete tooling
2001
CE
In perfect condition
