HACO, ERM 30100, HYDRAULIC, PRESS BRAKES

Condition:Used
Category:PRESS BRAKES
Type:HYDRAULIC
Manufacturer:HACO
Model:ERM 30100
YOM:2002
Location:Netherlands, BABBERICH
Price:On request
Stock No:7413
Control:CNC
ID:AS29402

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

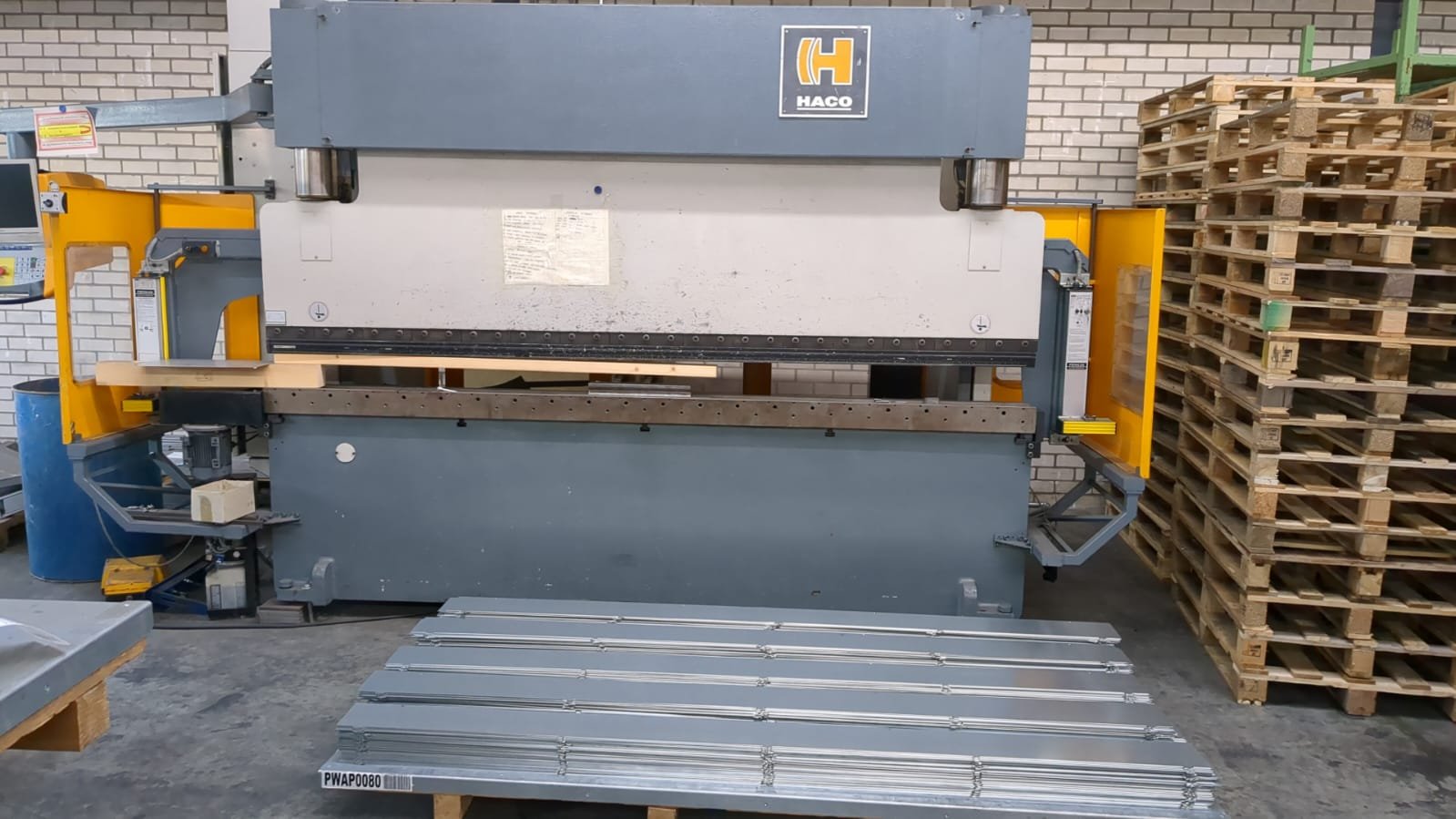

Pressbrake
HACO - ERM 30100 Max. bending length: 3100mm
Distance between column: 2550mm
Max. pressing force: 100T
Dis. Beam - Table: 400mm
Beam stroke: 200mm
Troth beam: 250mm
Approch speed: 100mm/min.
Working speed: 10mm/min.
Return speed: 100mm/min.

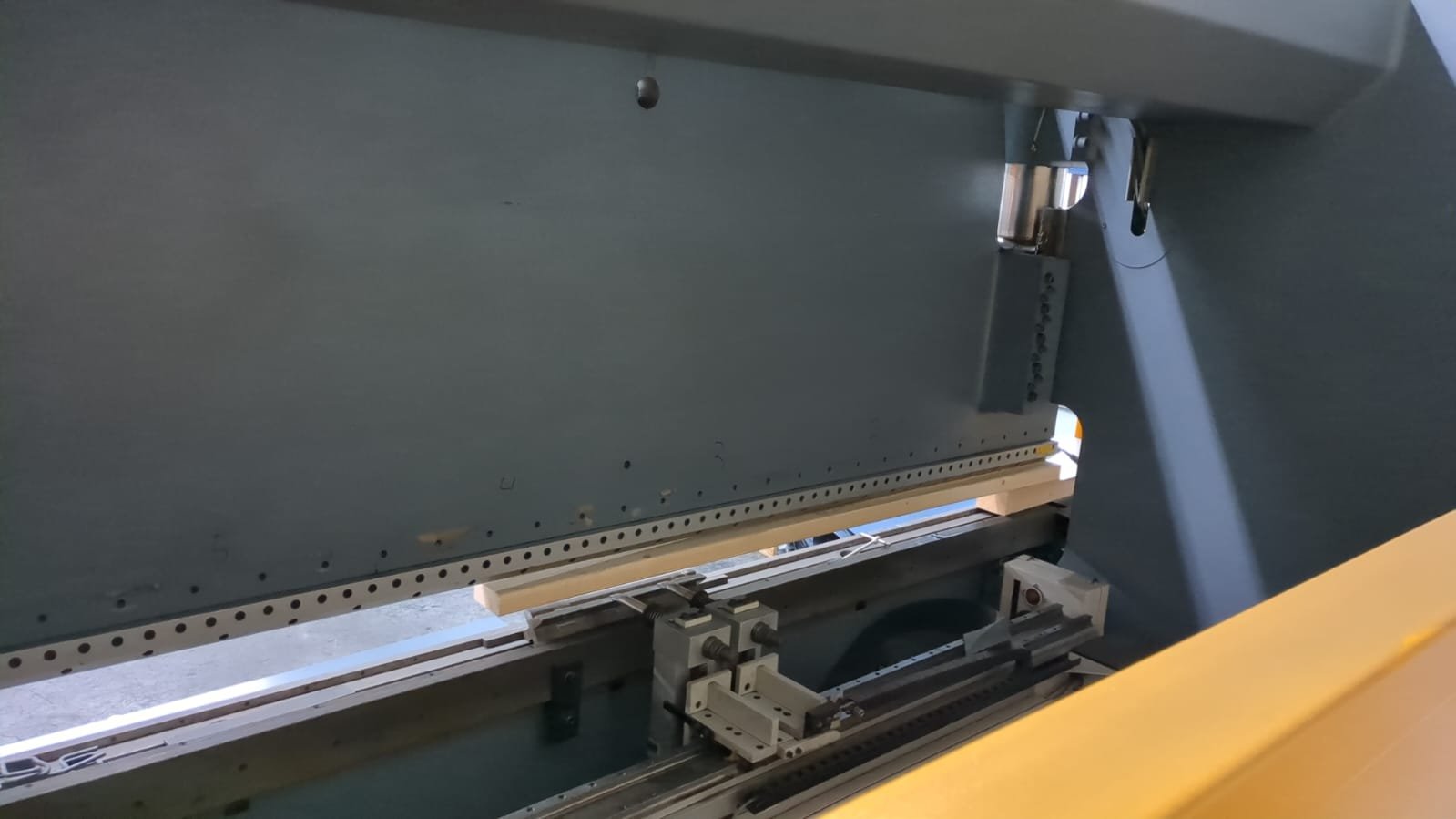

Adjustment X-Axis back gauge:1000mm
Control: BC 55 Graphics
Crowning: Yes

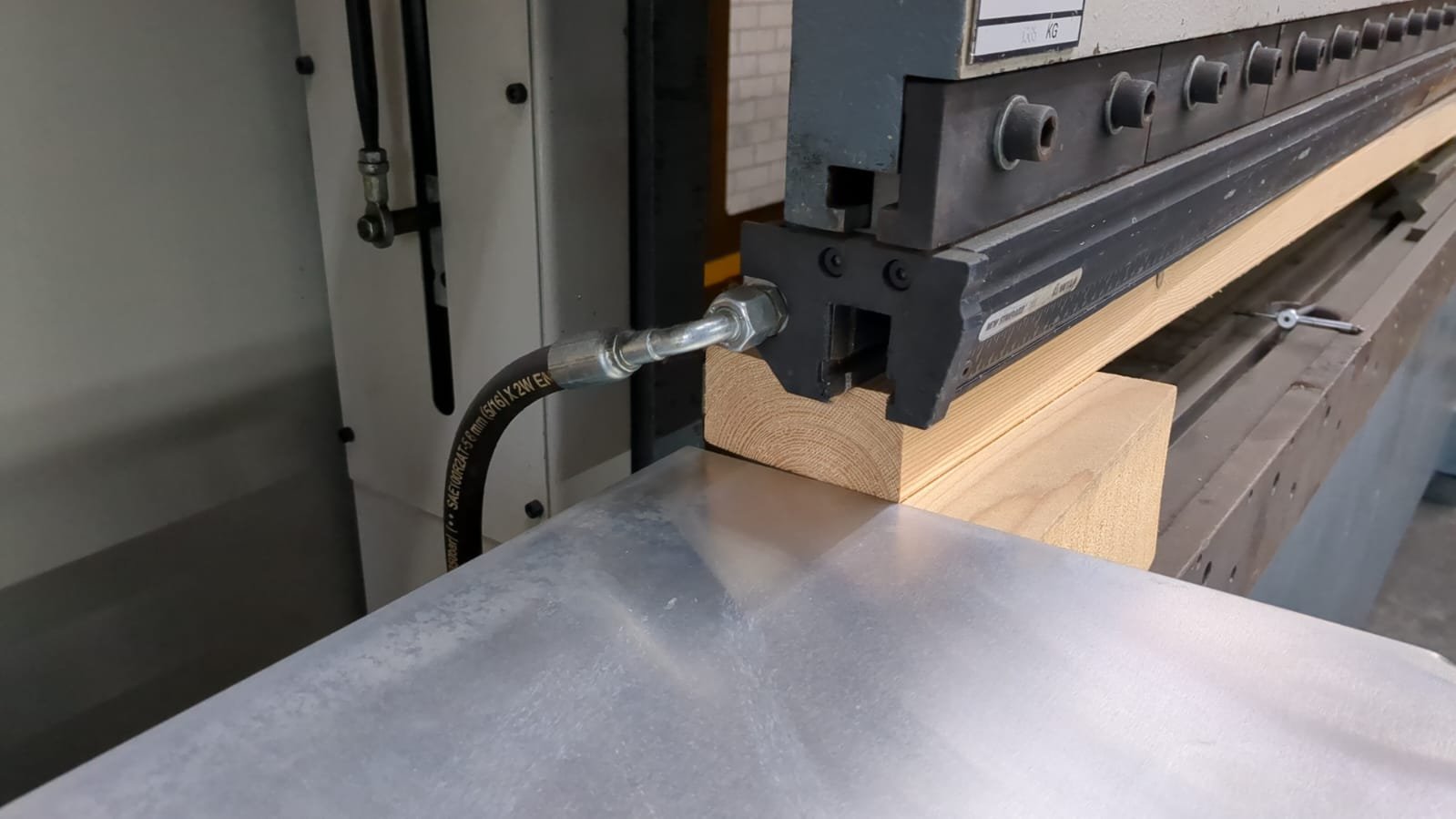

Hydraulic toolclamping: WILA New Standard 2
Power: 11,4kW
Length: 3500mm
Width: 1700mm
Height: 2500mm
Weight: 7400kg

Specifications:

Pressbrake
HACO - ERM 30100 Max. bending length: 3100mm
Distance between column: 2550mm
Max. pressing force: 100T
Dis. Beam - Table: 400mm
Beam stroke: 200mm
Troth beam: 250mm
Approch speed: 100mm/min.
Working speed: 10mm/min.
Return speed: 100mm/min.
Adjustment X-Axis back gauge:1000mm
Control: BC 55 Graphics
Crowning: Yes
Hydraulic toolclamping: WILA New Standard 2
Power: 11,4kW
Length: 3500mm
Width: 1700mm
Height: 2500mm
Weight: 7400kg

Dealer name:

Mach4Metal Netherlands, Babberich
