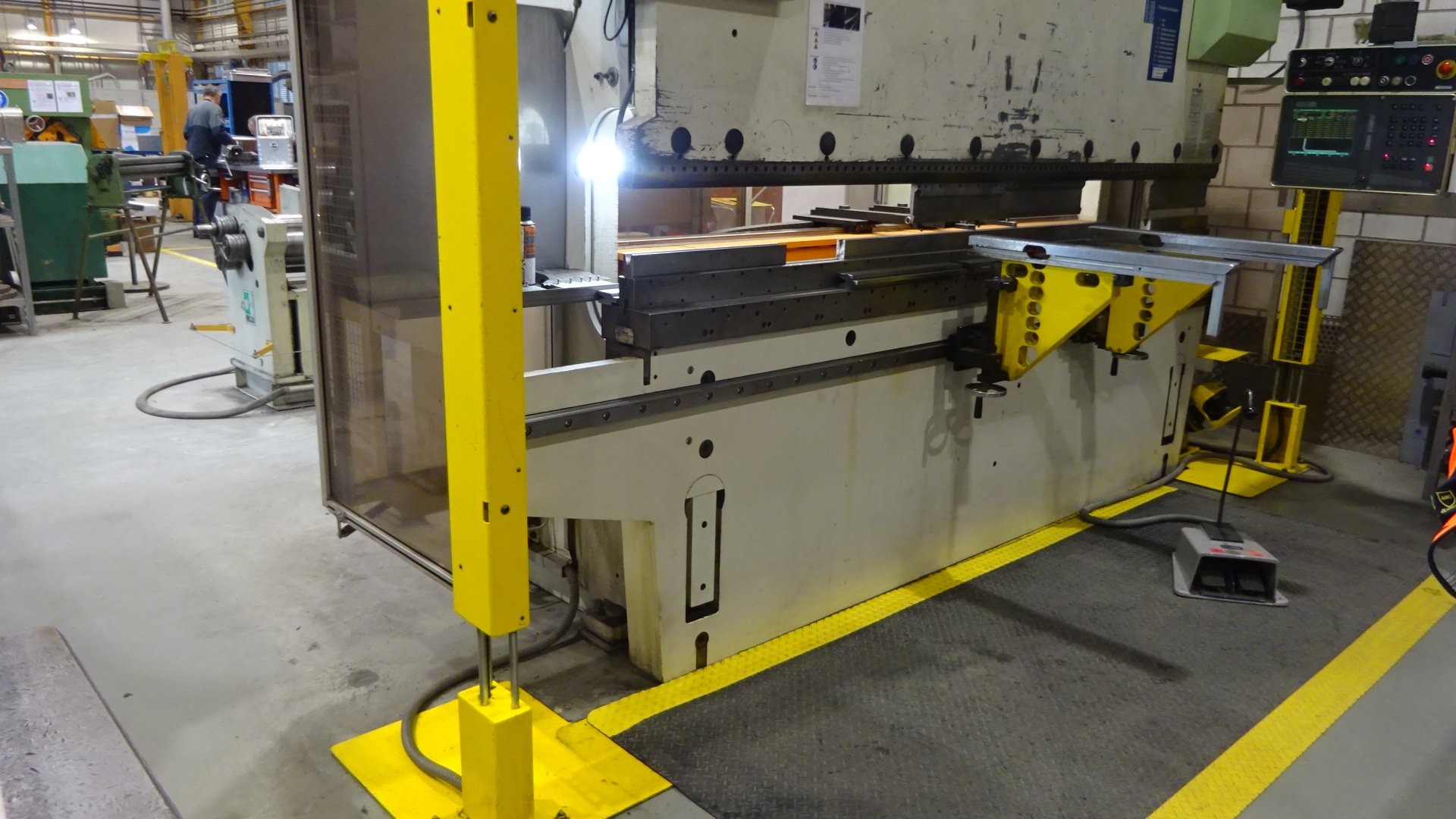

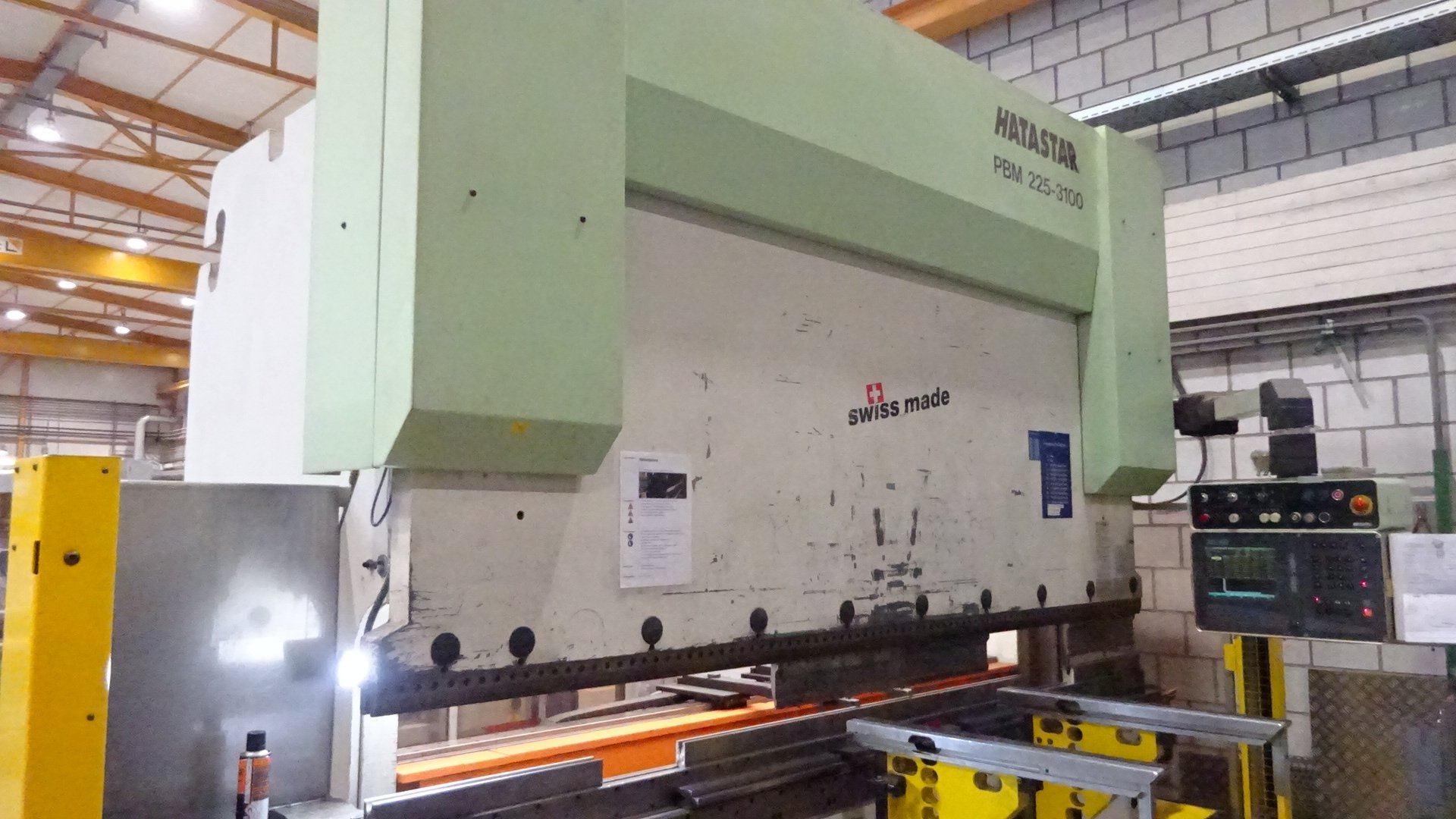

Hatastar, PBM 225 - 3100, HYDRAULIC, PRESS BRAKES

Condition:Used
Category:PRESS BRAKES
Type:HYDRAULIC
Manufacturer:Hatastar
Model:PBM 225 - 3100
YOM:1997
Location:Netherlands, BABBERICH
Price:On request
Stock No:8604
Control:CNC
ID:AS29771

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

Pressbrake
Hatastar - PBM 225 - 3100
Max. bending length: 3100mm
Distance between column: 2700mm
Max. pressing force: 225T
Dis. Beam - Table: 590mm
Beam stroke: 315mm
Troth beam: 460mm
Approch speed: 140mm/min.
Working speed: 10mm/min.
Return speed: 140mm/min.

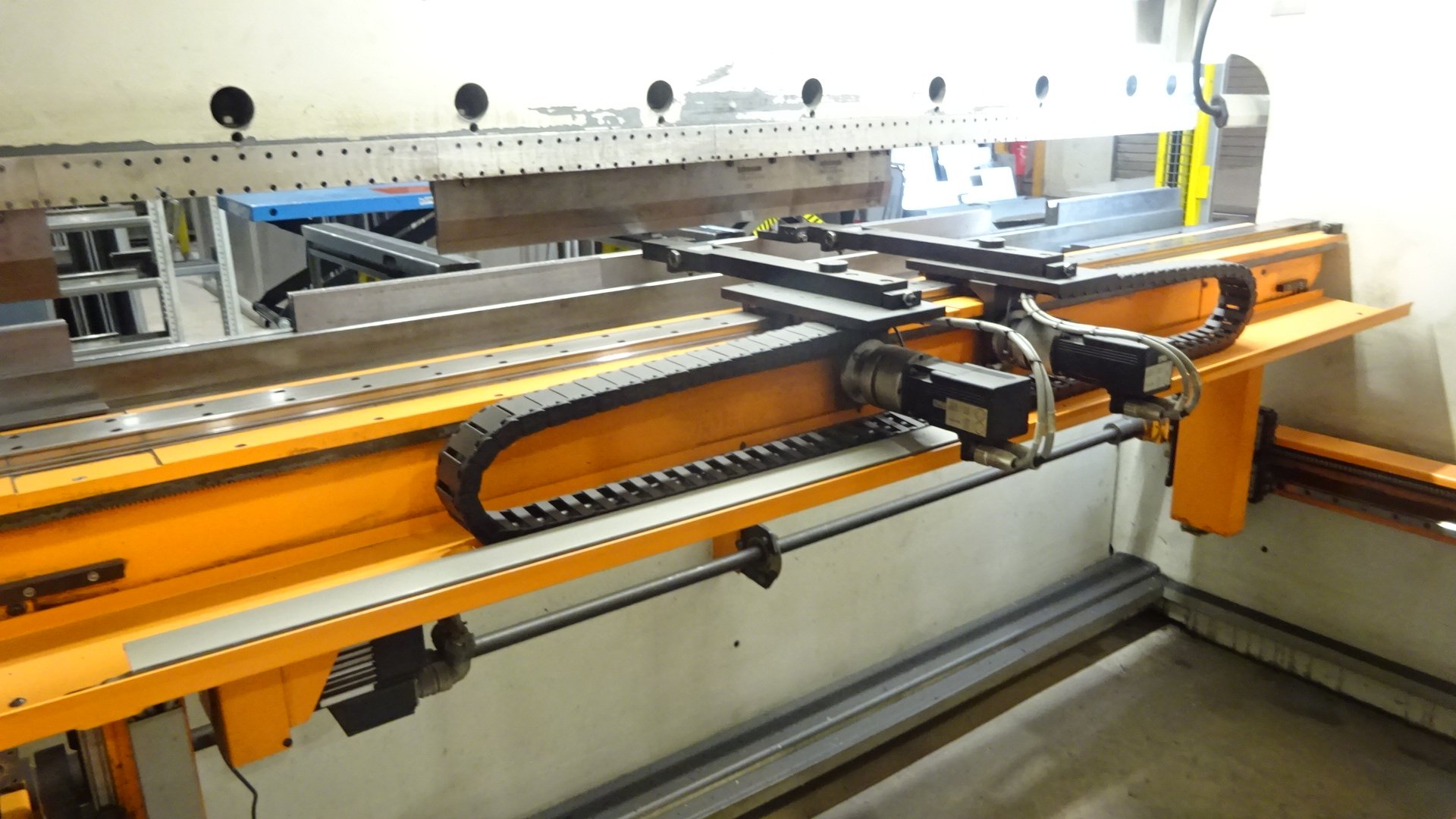

Adjustment X-Axis back gauge:1000mm
Number of controlled axis: 5
Power: 30kW
Length: 3945mm
Width: 1800mm
Height: 3040mm
Weight: 13500kg

Specifications:

Pressbrake
Hatastar - PBM 225 - 3100
Max. bending length: 3100mm
Distance between column: 2700mm
Max. pressing force: 225T
Dis. Beam - Table: 590mm
Beam stroke: 315mm
Troth beam: 460mm
Approch speed: 140mm/min.
Working speed: 10mm/min.
Return speed: 140mm/min.
Adjustment X-Axis back gauge:1000mm
Number of controlled axis: 5
Power: 30kW
Length: 3945mm
Width: 1800mm
Height: 3040mm
Weight: 13500kg

Dealer name:

Mach4Metal Netherlands, Babberich
