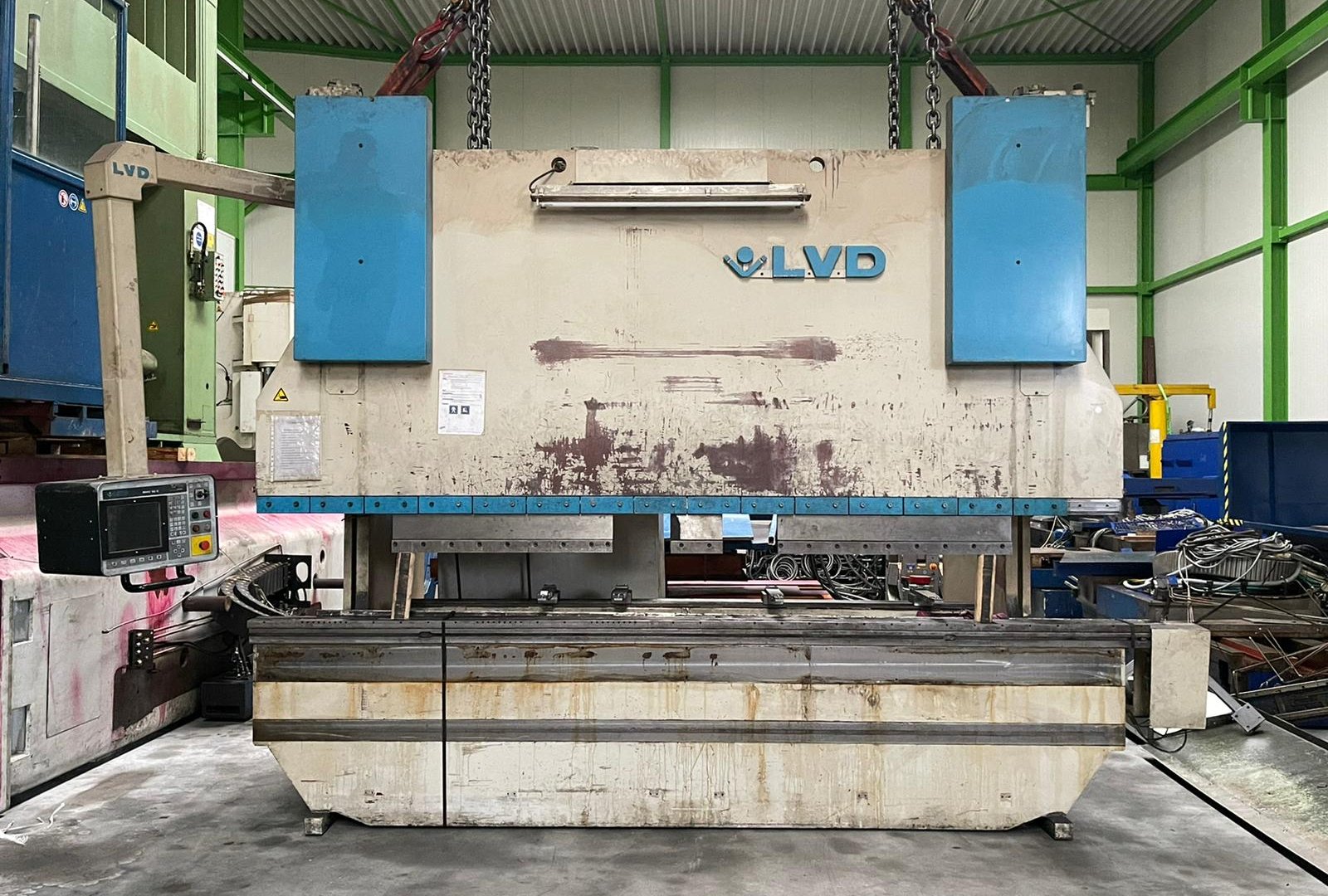

Press brake LVD - PPEB 220/40 MNC95 CNC Hydraulic 4000 x 220 Ton mm 6409 = Mach4metal
Max. bending length 4.000 mm
Distance between column 3.150 mm
Max. pressing force 220 T
Dis. Beam – Table 500 mm
Beam stroke 250 mm
Table Width 180 mm
Troth beam 350 mm
Approch speed 100 mm
Working speed 9 mm
Return speed 90 mm

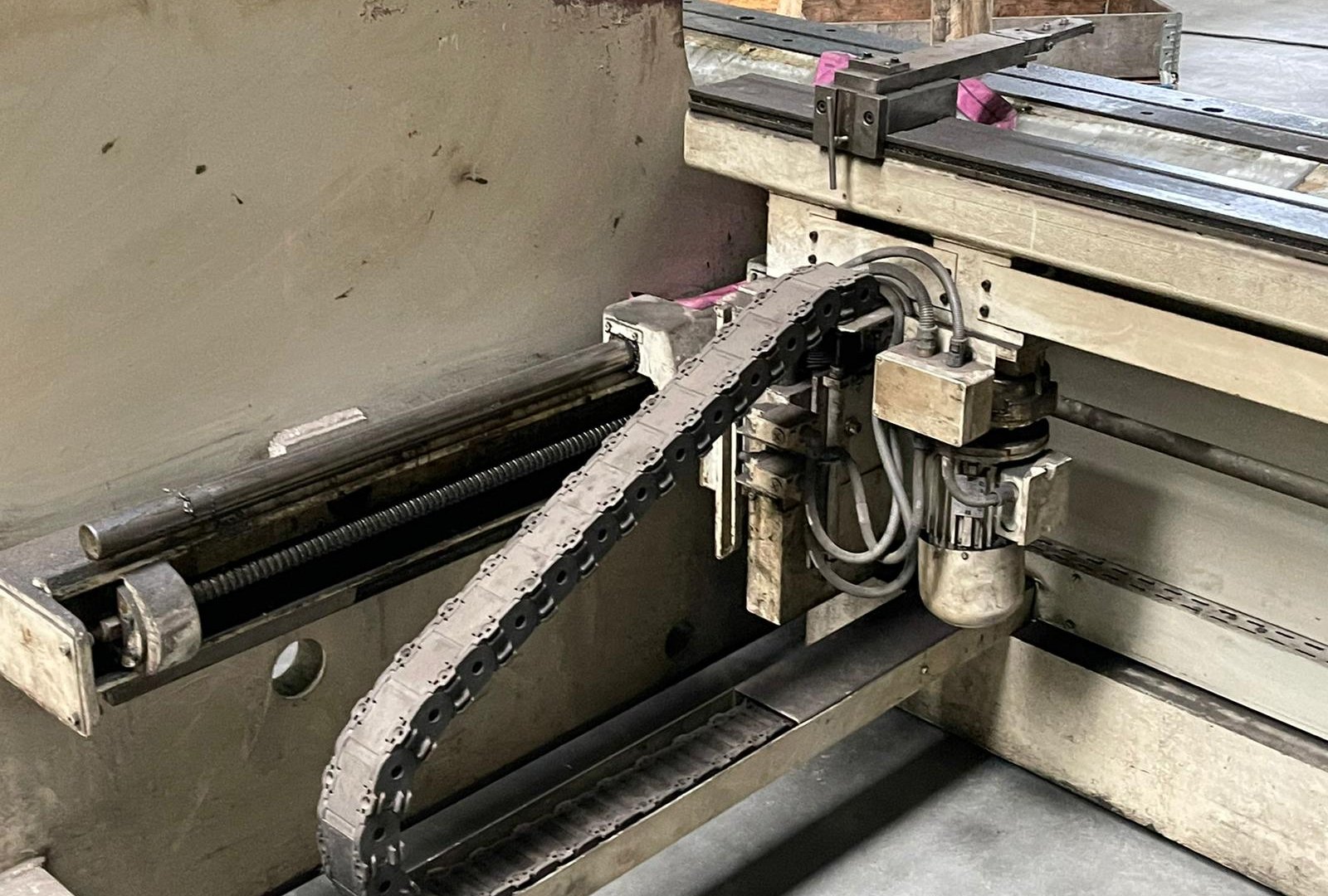

Adjustment X-Axis back gauge 1.000 mm
Number of controlled axis 4

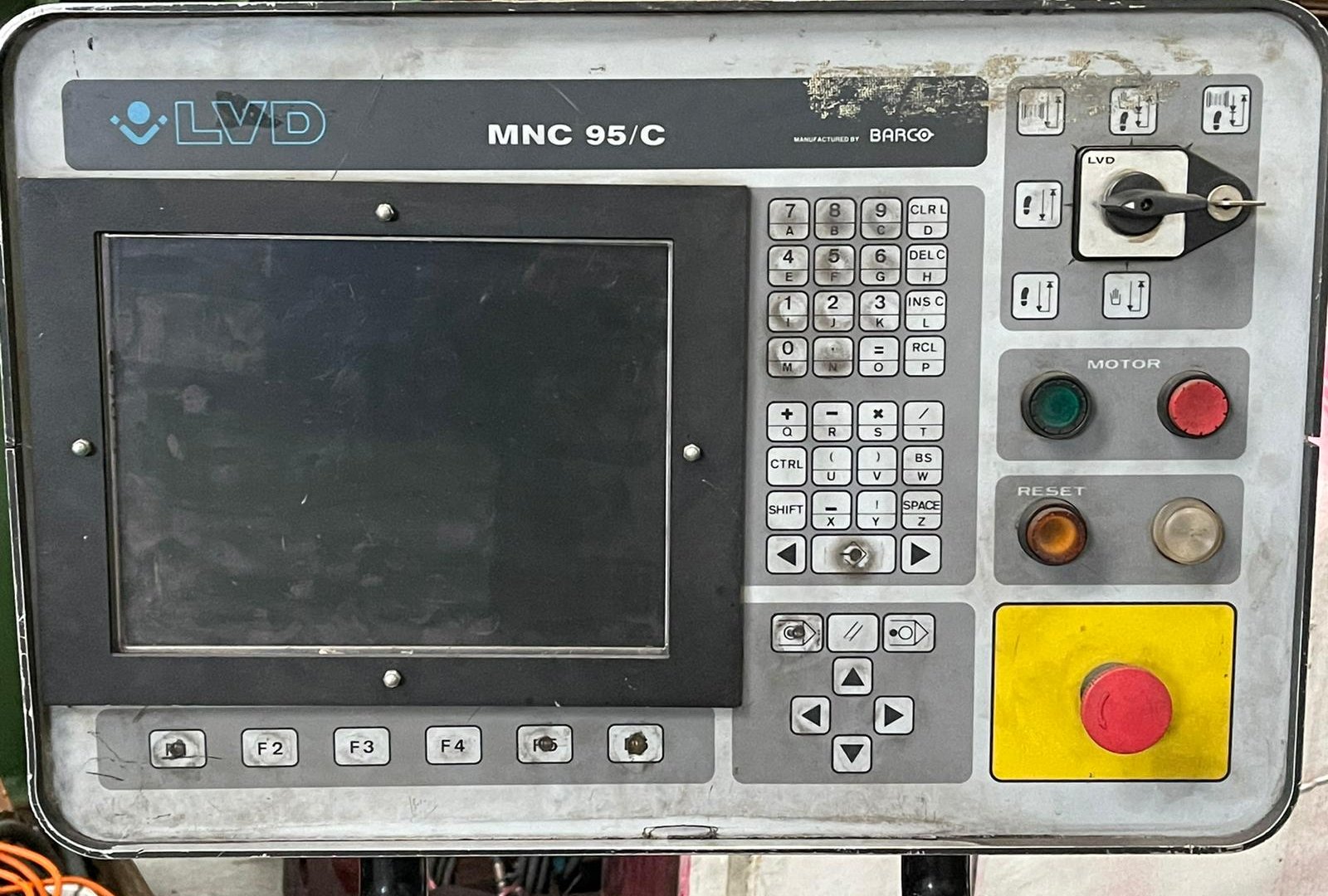

Control MNC 95
Crowning Yes
Power 27 kW
Specifications:
Press brake LVD - PPEB 220/40 MNC95 CNC Hydraulic 4000 x 220 Ton mm 6409 = Mach4metal
Max. bending length 4.000 mm
Distance between column 3.150 mm
Max. pressing force 220 T
Dis. Beam – Table 500 mm
Beam stroke 250 mm
Table Width 180 mm
Troth beam 350 mm
Approch speed 100 mm
Working speed 9 mm
Return speed 90 mm
Adjustment X-Axis back gauge 1.000 mm
Number of controlled axis 4
Control MNC 95
Crowning Yes
Power 27 kW
