SAFAN, H-Brake 240-4100, HYDRAULIC, PRESS BRAKES
  • Condition:Used
  • Category:PRESS BRAKES
  • Type:HYDRAULIC
  • Manufacturer:SAFAN
  • Model:H-Brake 240-4100
  • YOM:2007
  • Location:Netherlands, BABBERICH
  • Price:On request
  • Stock No:6950
  • Control:CNC
  • ID:AS29221
Description:

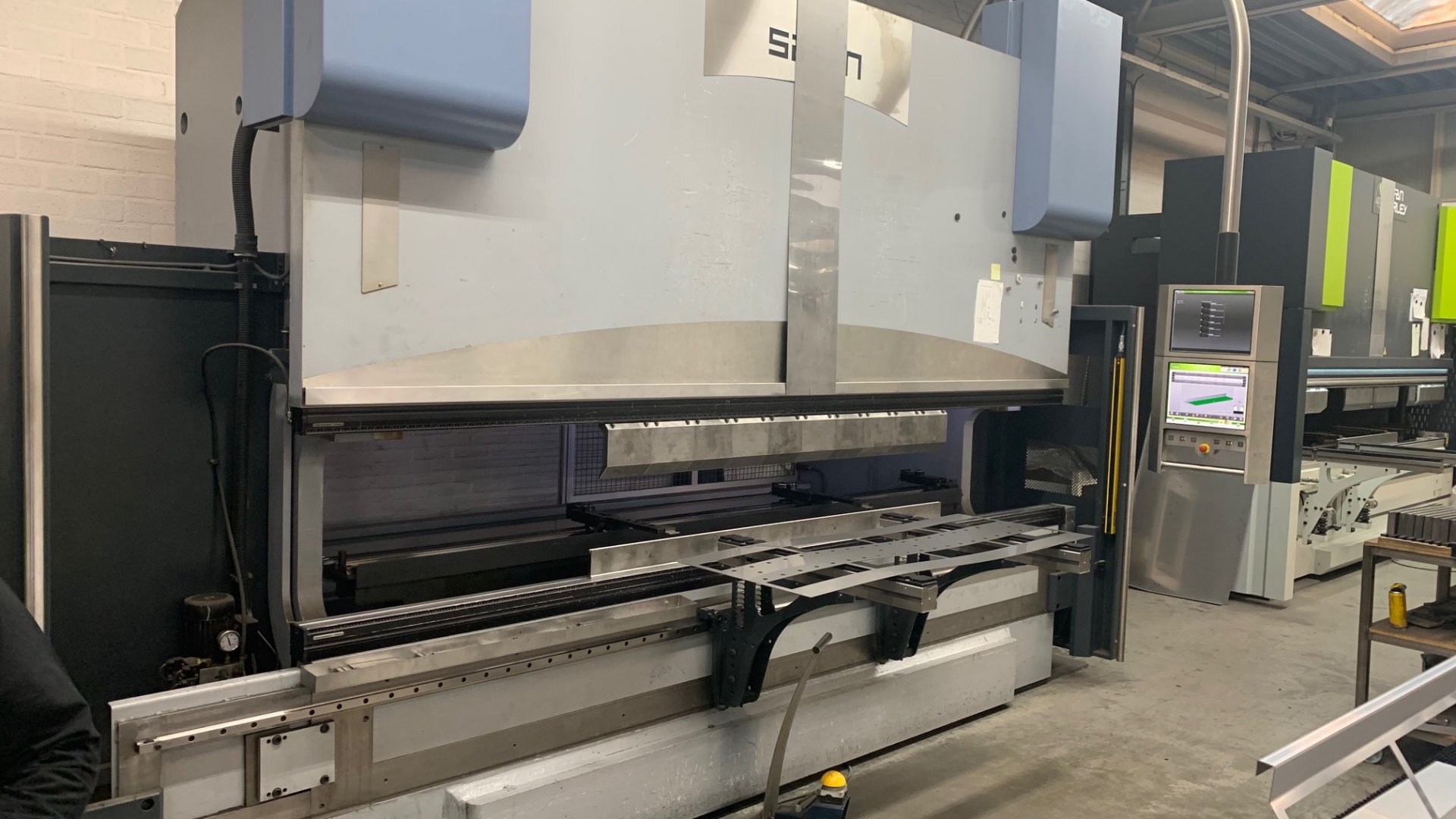

SAFAN DARLEY - H-Brake 240 – 4100 CNC Pressbrake 4100 x 240 T with 6 Axis = Mach4metal 6950
Max. bending length: 4.100mm
Distance between column: 3.600mm
Max. pressing force: 240T
Dis. Beam – Table: 725mm
Beam stroke: 335mm
Troth beam: 400mm
Approch speed: 140mm/min.
Working speed: 8mm/min.
Return speed: 100mm/min.

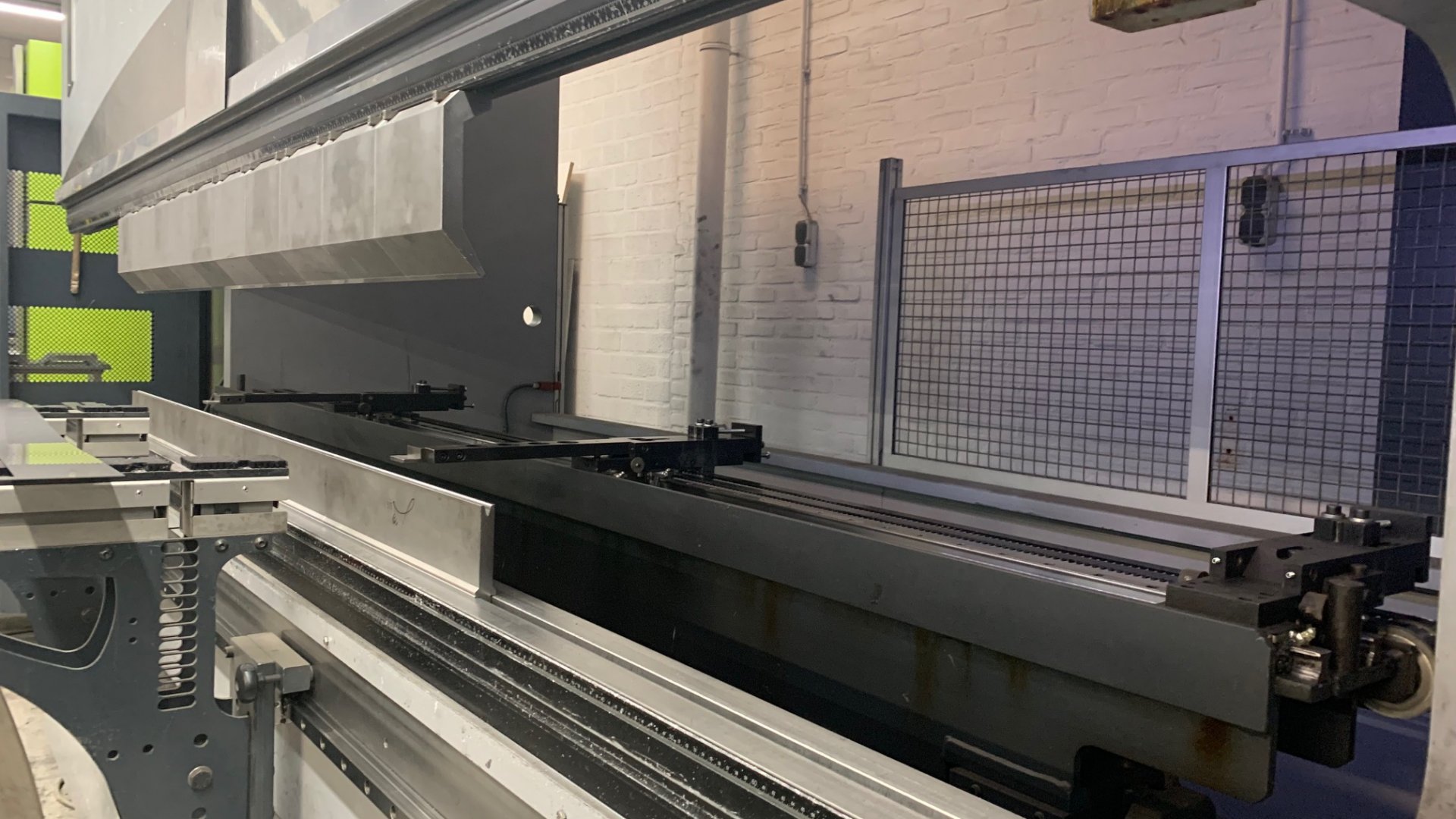

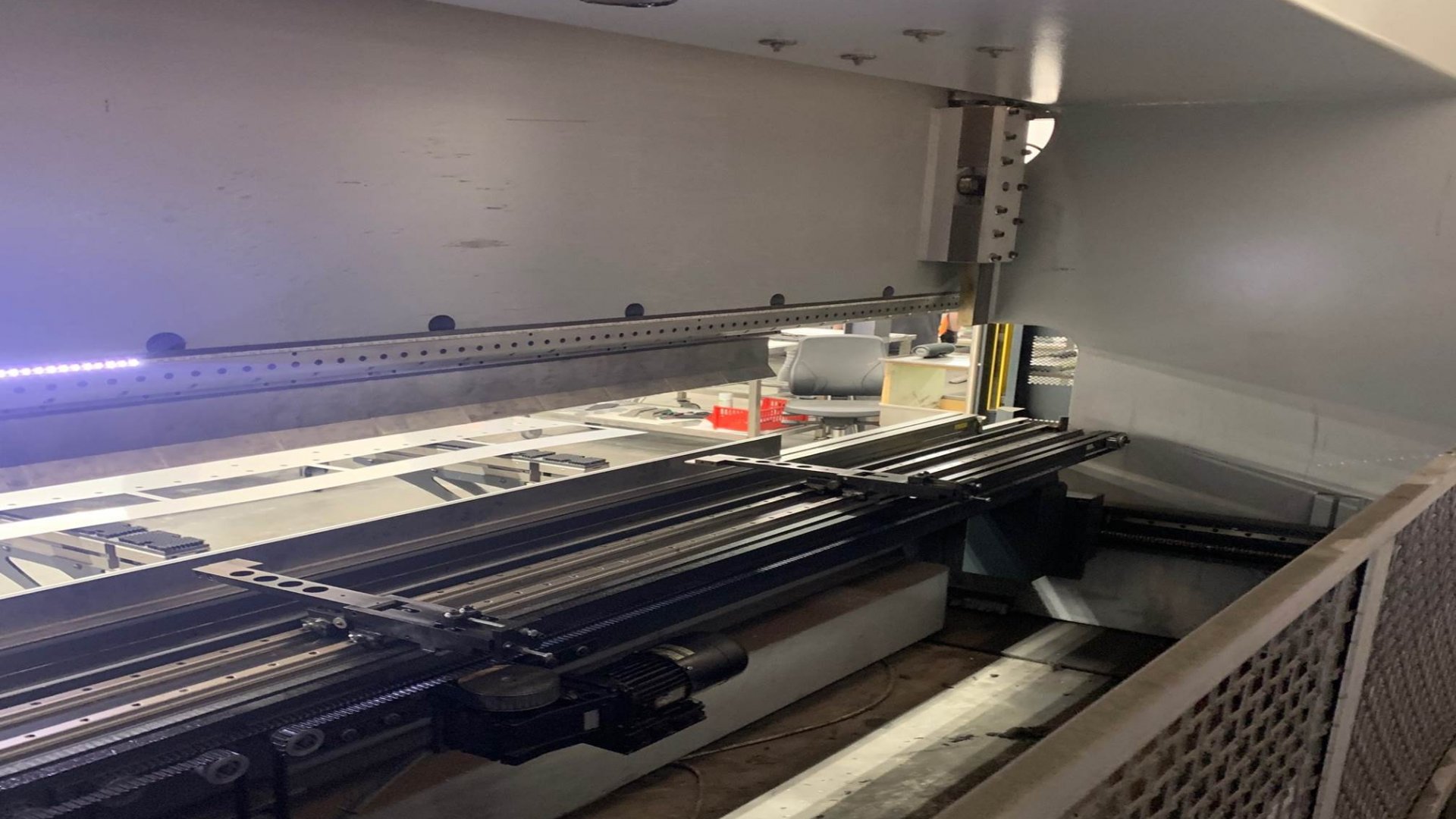

Adjustment X-Axis back gauge:1.000mm
Number of controlled axis: 6 = Y1/Y2/V/Z1/Z2/Delta
Control: E-Control Touchscreen
Crowning: Yes
Hydraulic toolclamping: Wila Newstandard
Power: 15kW
Length: 5.000 mm
Width: 1.900 mm
Height: 3.150 mm
Weight: 20.600 kg

Specifications:
SAFAN DARLEY - H-Brake 240 – 4100 CNC Pressbrake 4100 x 240 T with 6 Axis = Mach4metal 6950
Max. bending length: 4.100mm
Distance between column: 3.600mm
Max. pressing force: 240T
Dis. Beam – Table: 725mm
Beam stroke: 335mm
Troth beam: 400mm
Approch speed: 140mm/min.
Working speed: 8mm/min.
Return speed: 100mm/min.
Adjustment X-Axis back gauge:1.000mm
Number of controlled axis: 6 = Y1/Y2/V/Z1/Z2/Delta
Control: E-Control Touchscreen
Crowning: Yes
Hydraulic toolclamping: Wila Newstandard
Power: 15kW
Length: 5.000 mm
Width: 1.900 mm
Height: 3.150 mm
Weight: 20.600 kg

Dealer name:
Mach4Metal Netherlands, Babberich
