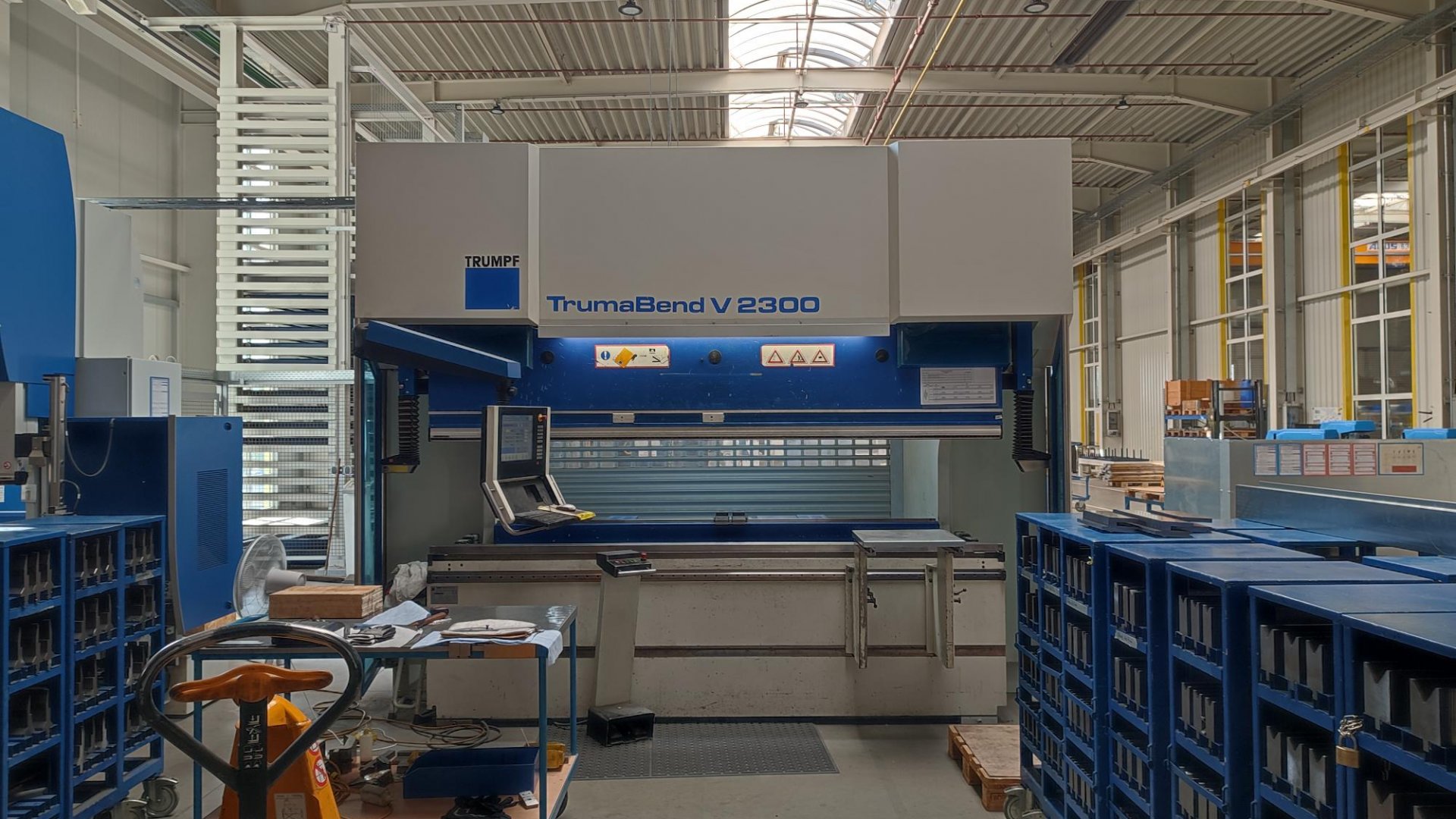

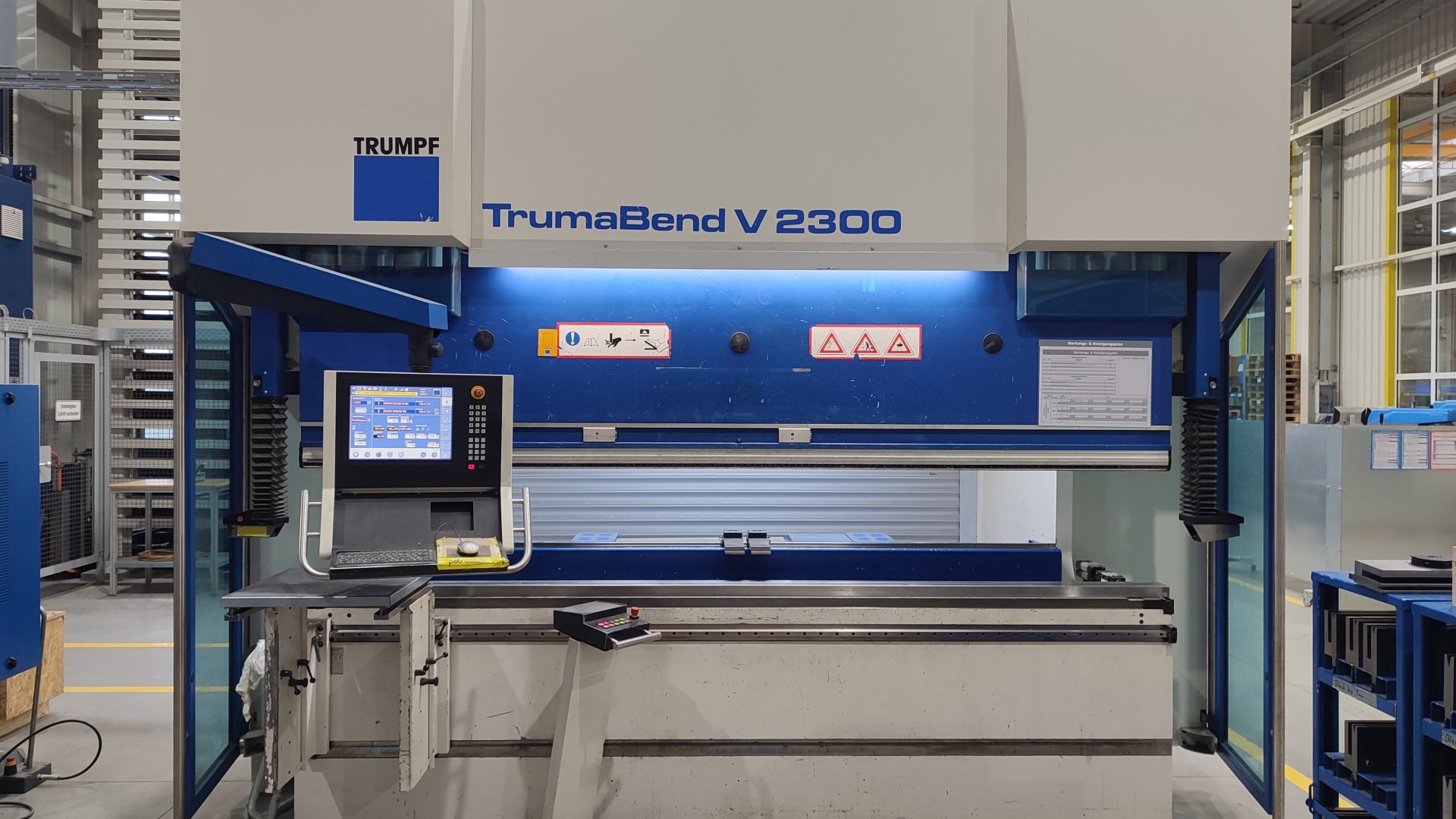

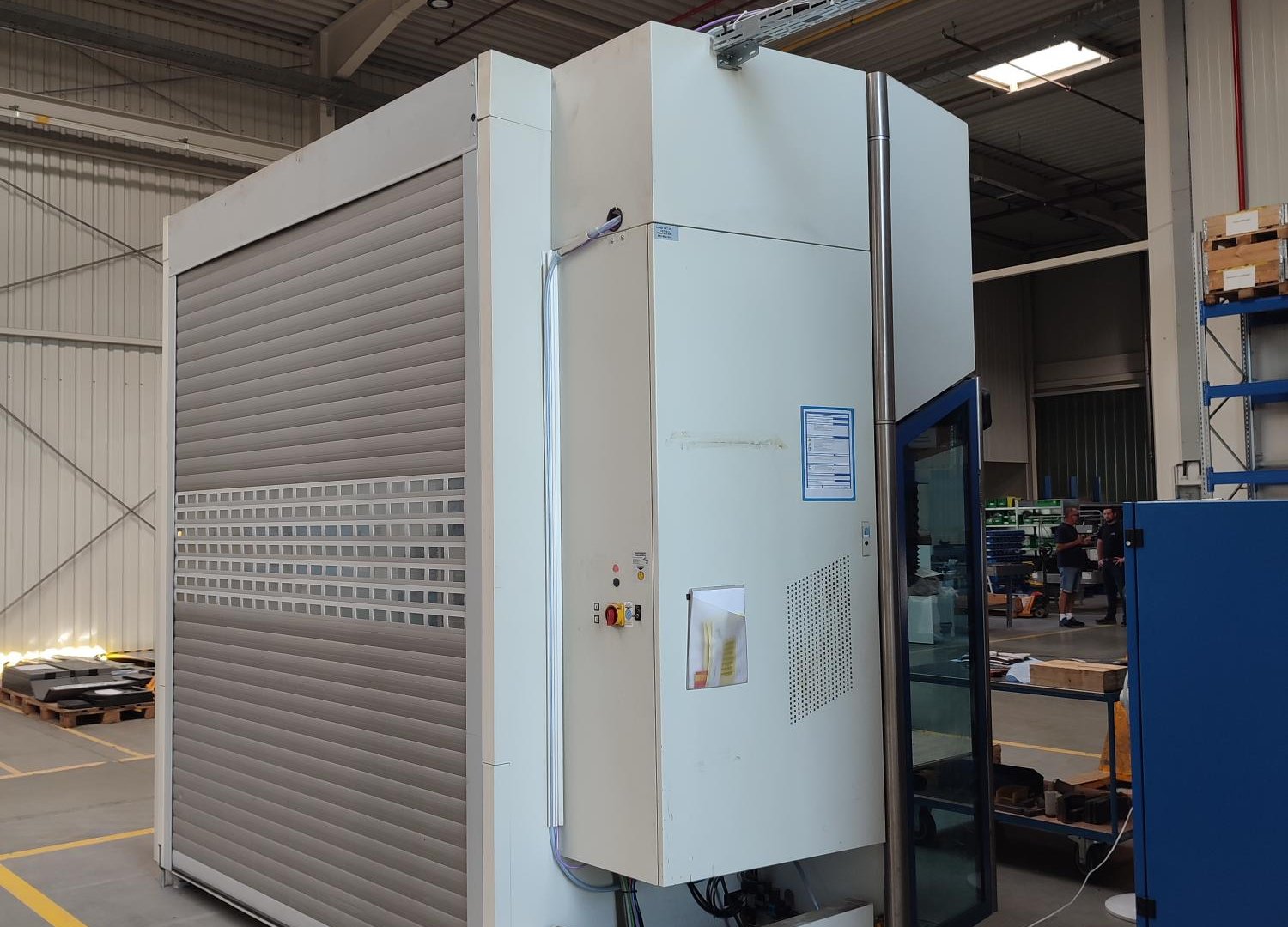

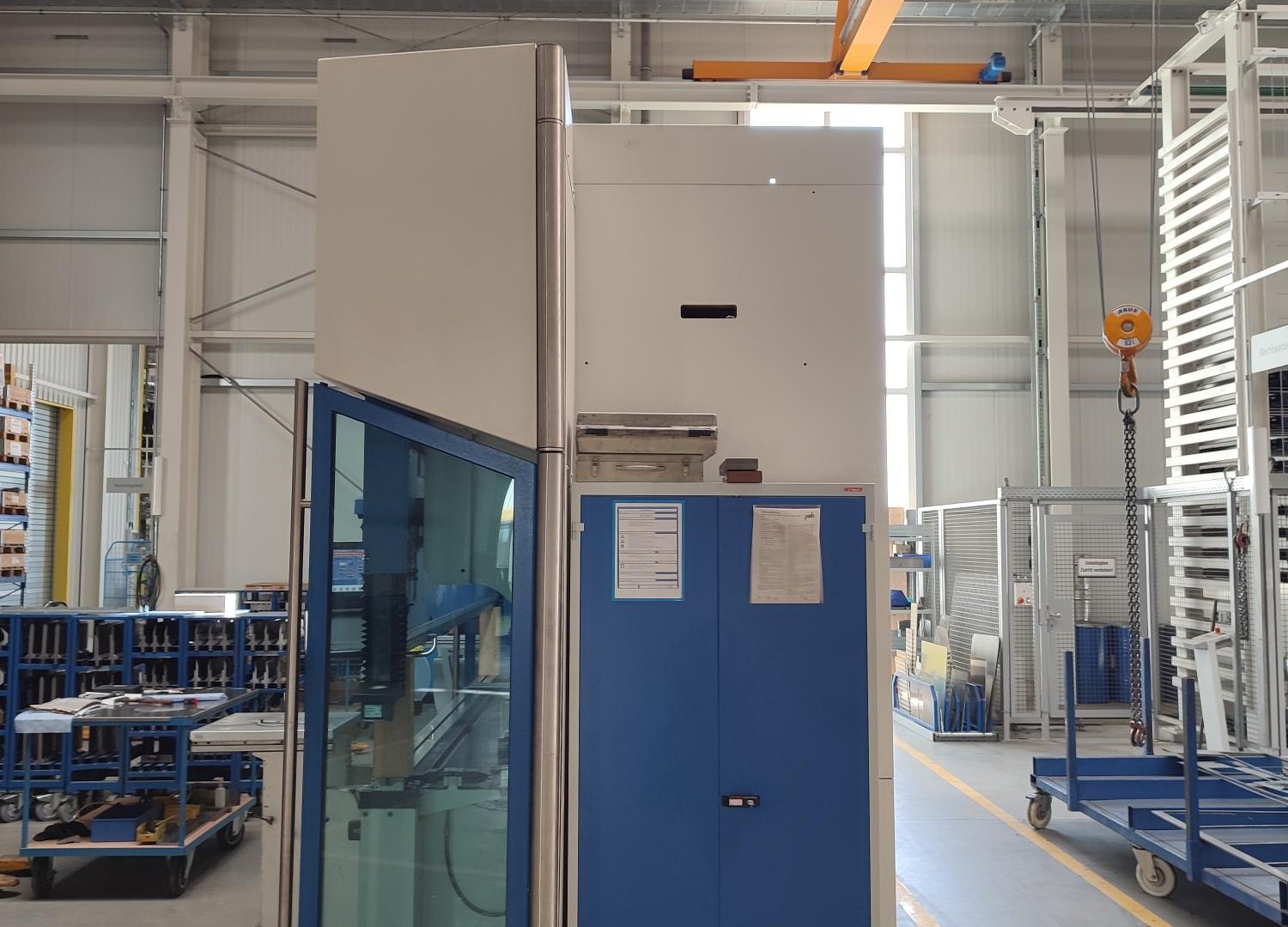

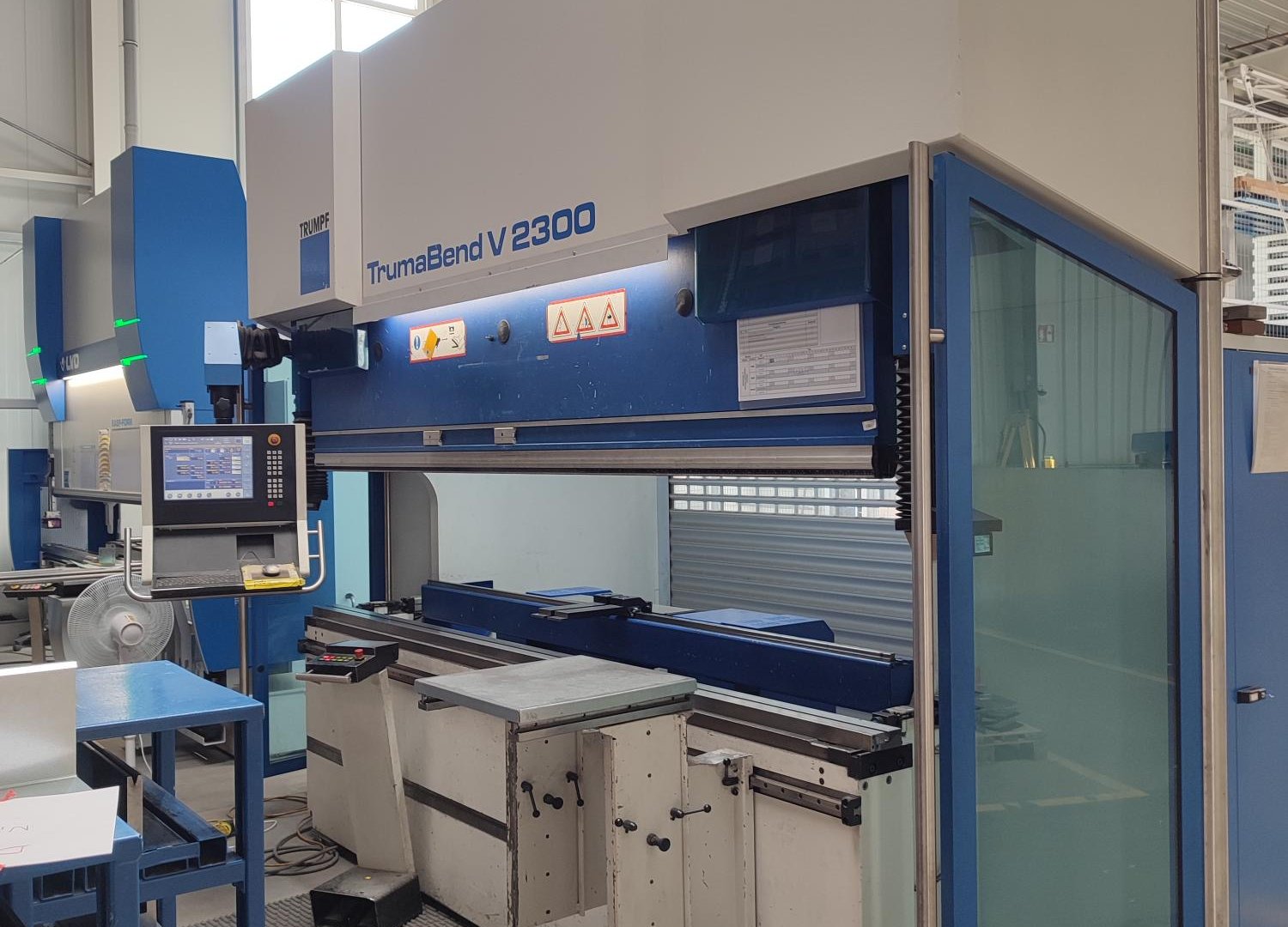

TRUMPF, Trumabend V2300, HYDRAULIC, PRESS BRAKES

Condition:Used
Category:PRESS BRAKES
Type:HYDRAULIC
Manufacturer:TRUMPF
Model:Trumabend V2300
YOM:2006
Location:Netherlands, BABBERICH
Price:On request
Stock No:7166

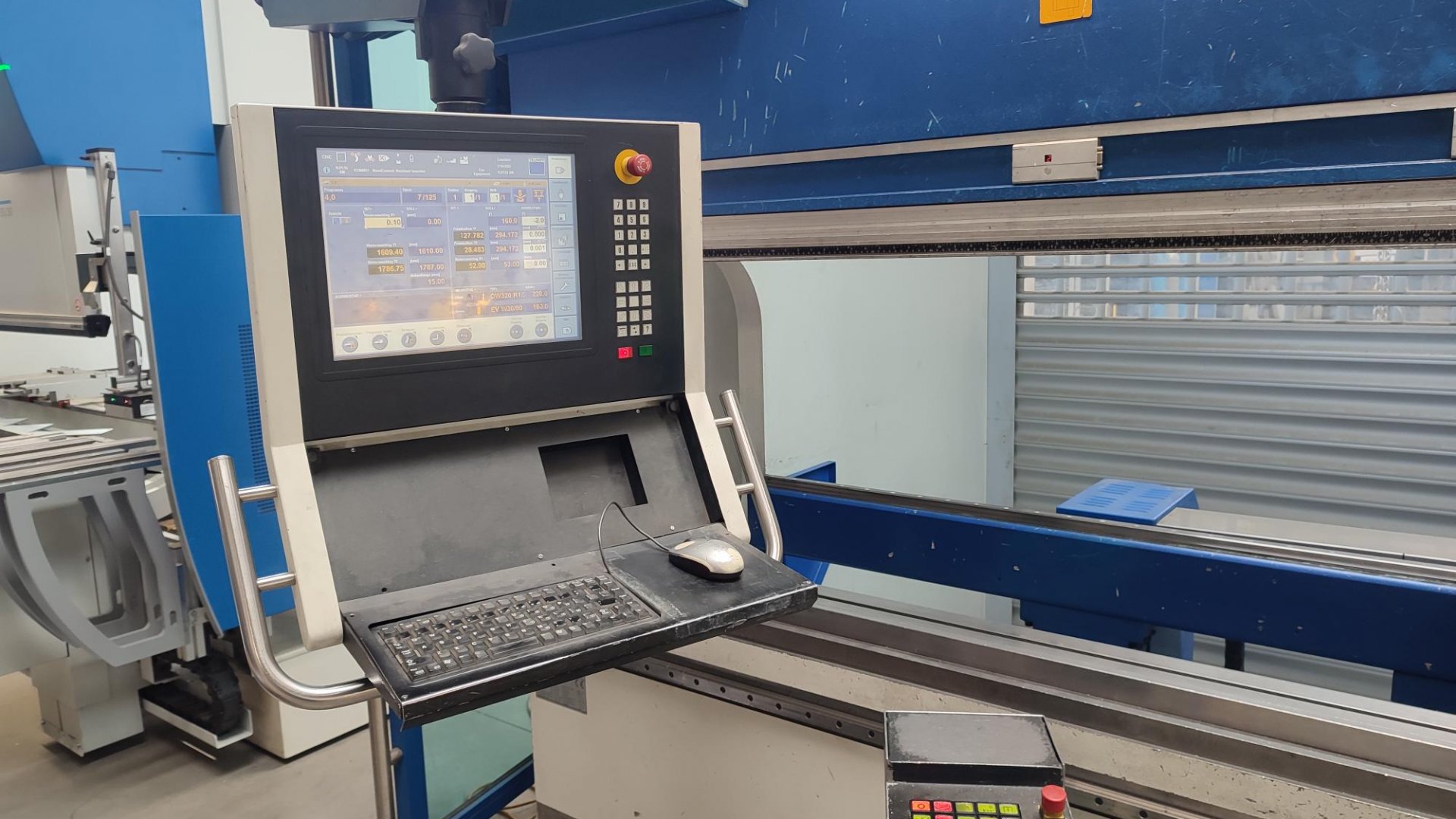

Control:CNC
ID:AS29338

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

Max. bending length: 3100mm
Distance between column: 2690mm
Max. pressing force: 230T
Dis. Beam - Table: 615mm
Beam stroke: 445mm
Table Width: 180mm
Troth beam: 420mm
Approch speed: 220mm/min.
Working speed: 10mm/min.
Return speed: 220mm/min.
Adjustment X-Axis back gauge:1000mm
Crowning: Yes
Hydraulic toolclamping: Yes
Power: 30kW
Length: 4270mm
Width: 2120mm
Height: 3200mm
Weight: 16000kg

Specifications:

Max. bending length: 3100mm
Distance between column: 2690mm
Max. pressing force: 230T
Dis. Beam - Table: 615mm
Beam stroke: 445mm
Table Width: 180mm
Troth beam: 420mm
Approch speed: 220mm/min.
Working speed: 10mm/min.
Return speed: 220mm/min.
Adjustment X-Axis back gauge:1000mm
Crowning: Yes
Hydraulic toolclamping: Yes
Power: 30kW
Length: 4270mm
Width: 2120mm
Height: 3200mm
Weight: 16000kg

Dealer name:

Mach4Metal Netherlands, Babberich
