Pressbrake

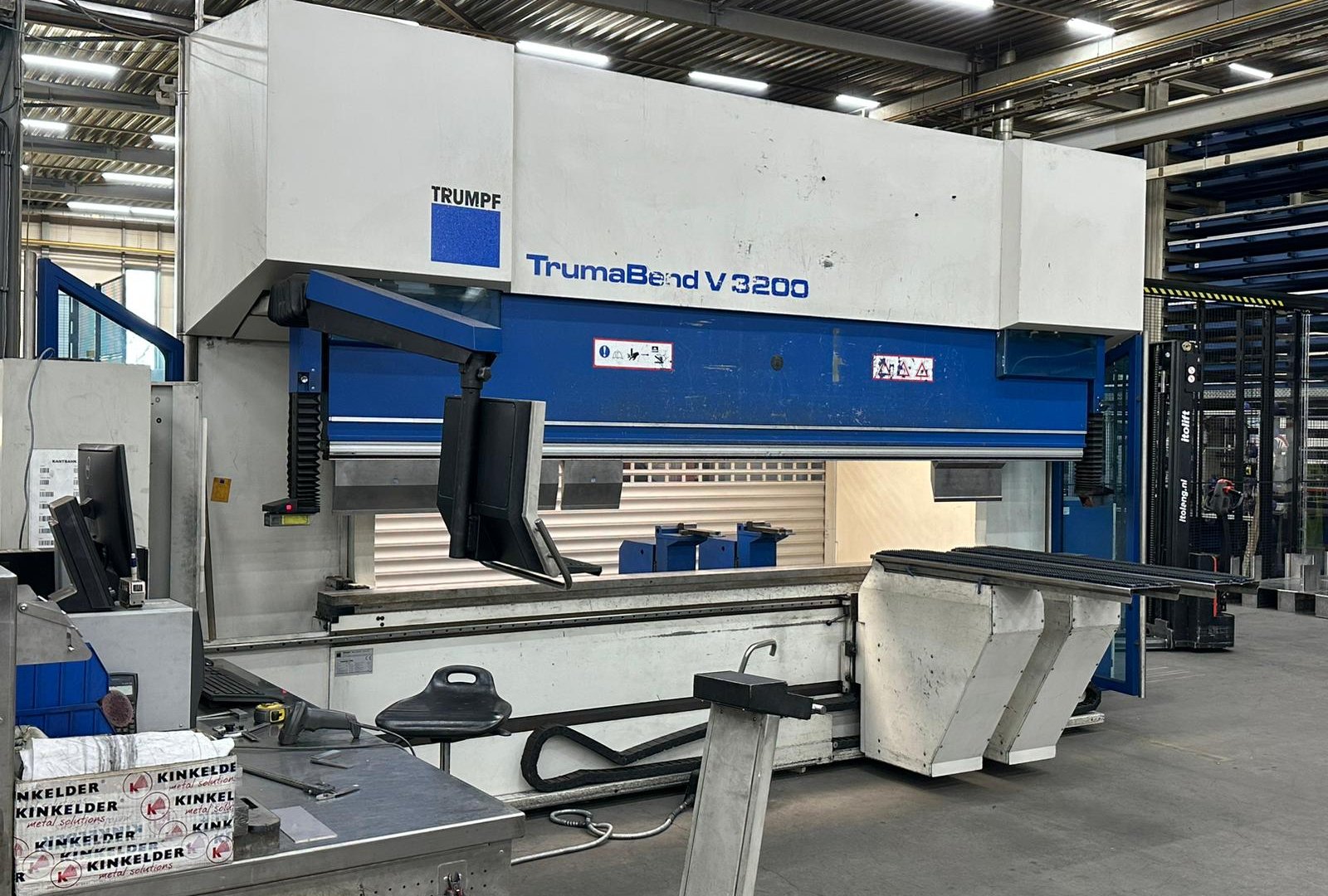

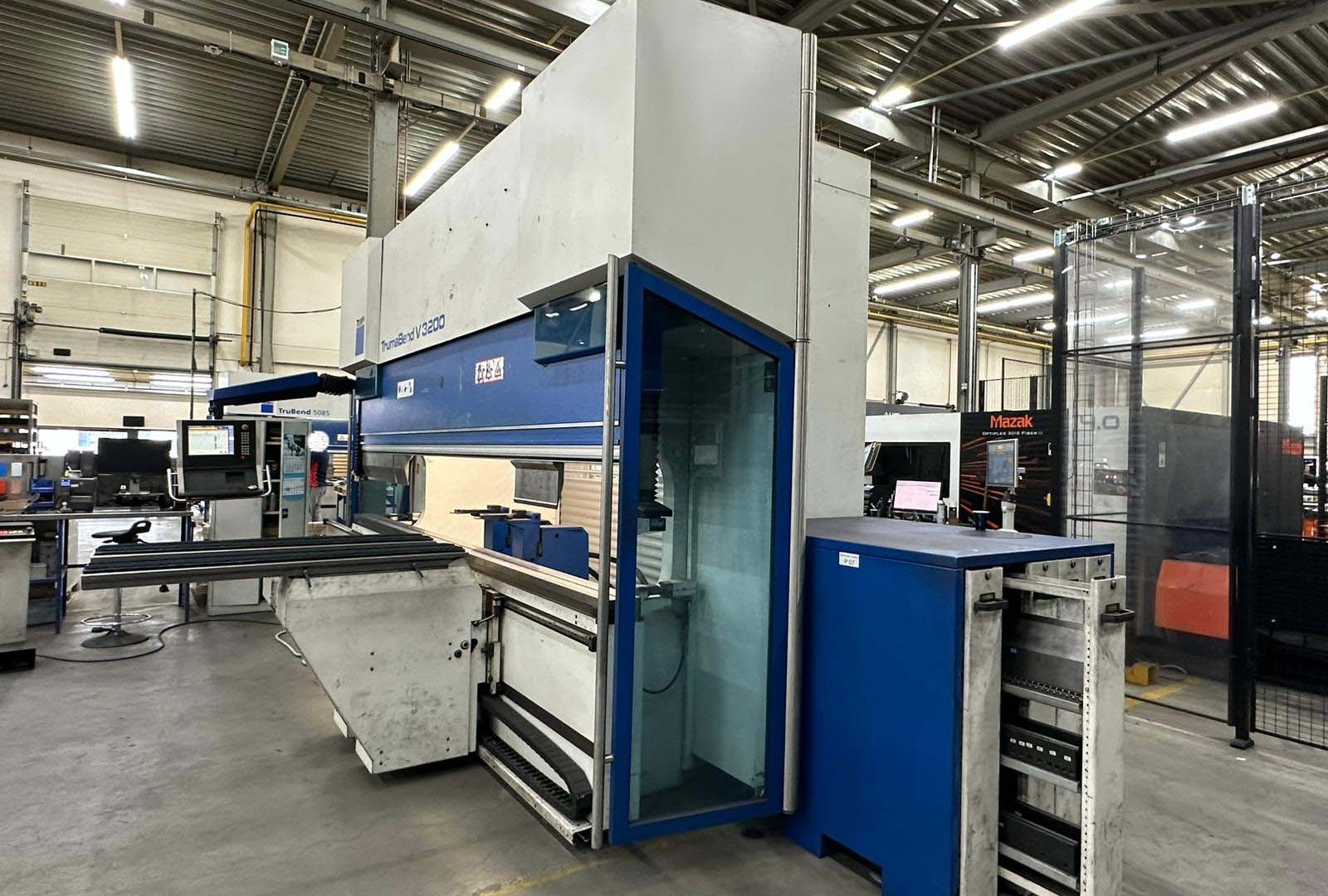

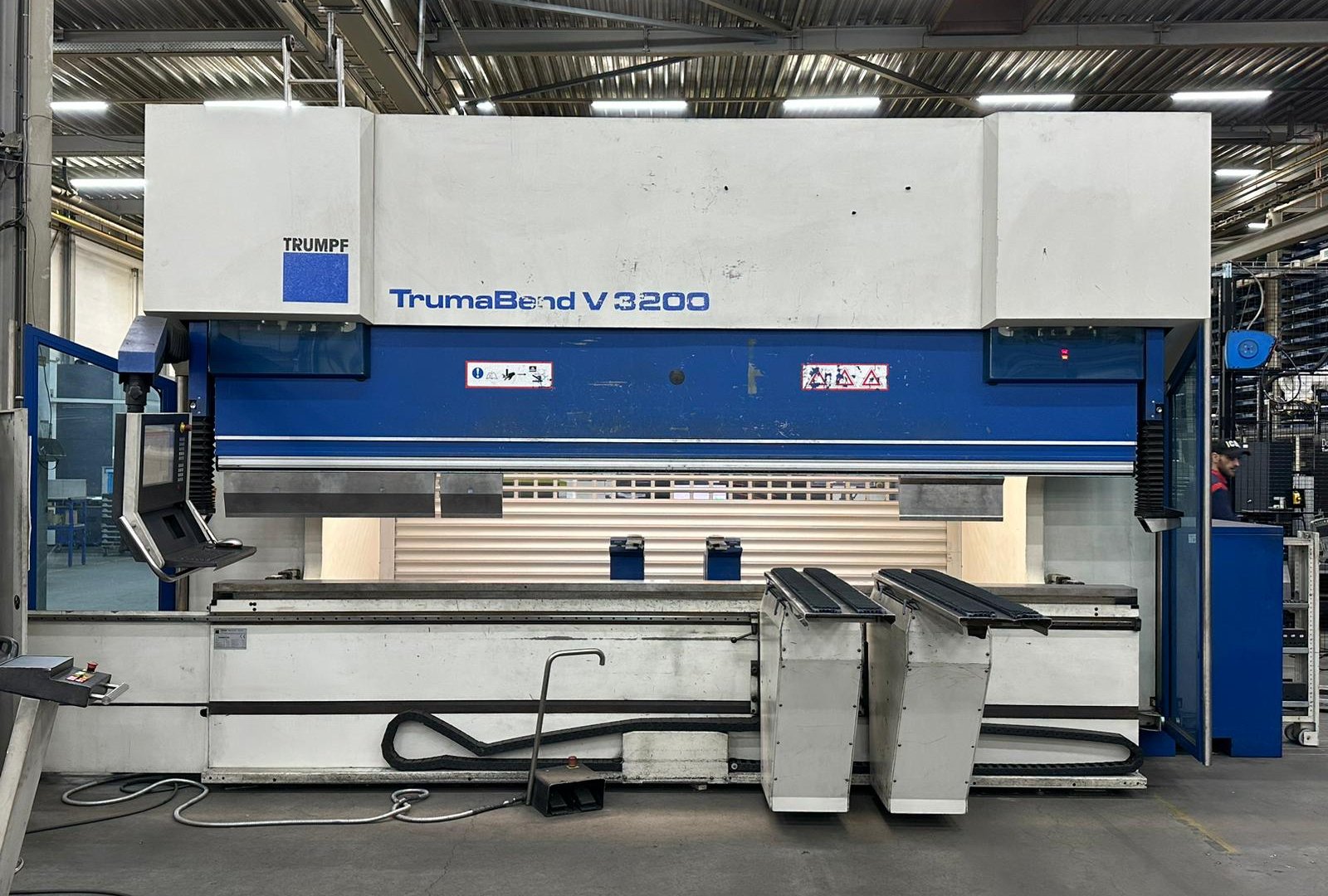

TRUMPF - Trumabend V3200
MACH-ID 7761
Make: TRUMPF
Type: Trumabend V3200
Control: TASC 6000
Year: 2006
4 Hydraulic cilinders 2 + 2 Left and Right

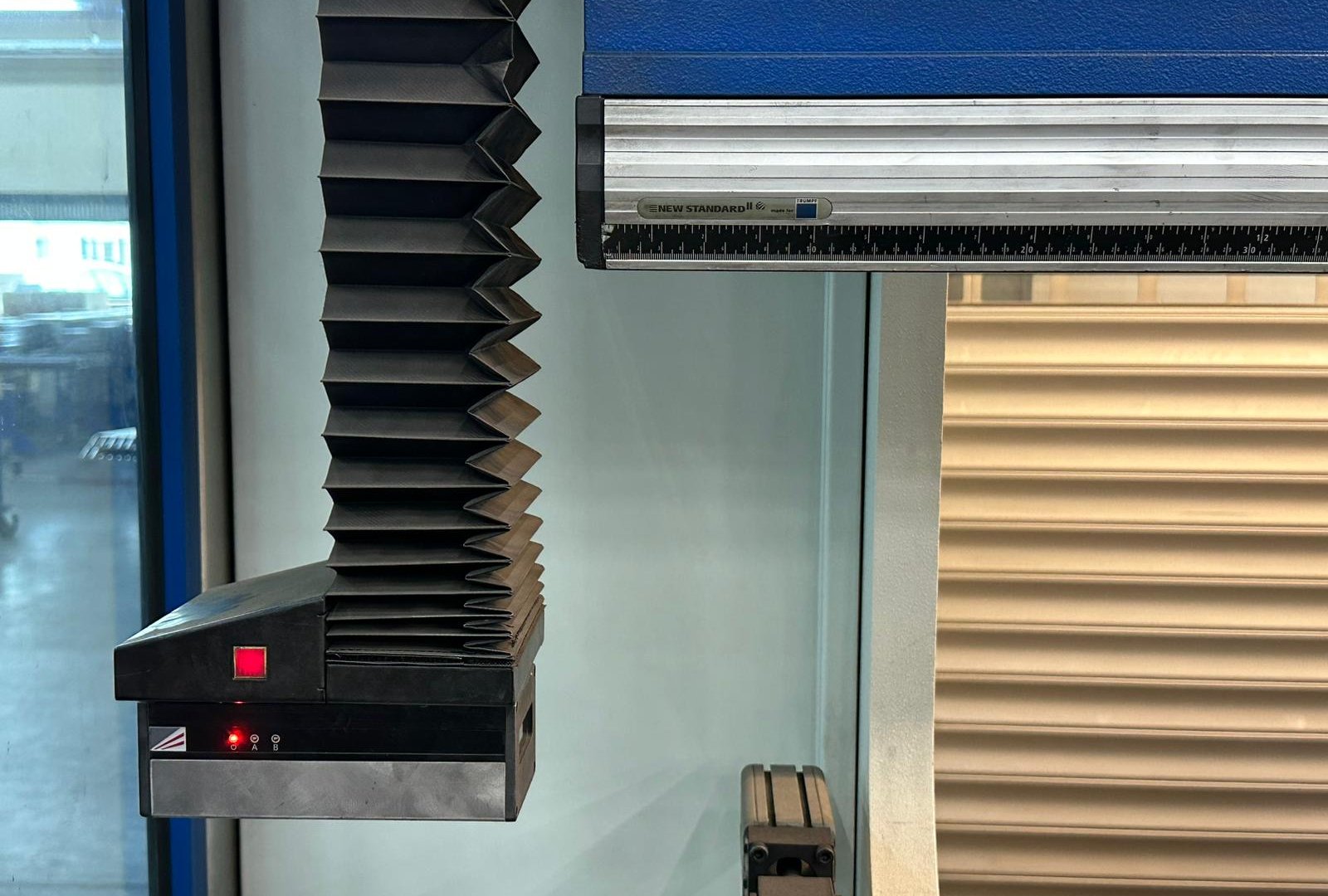

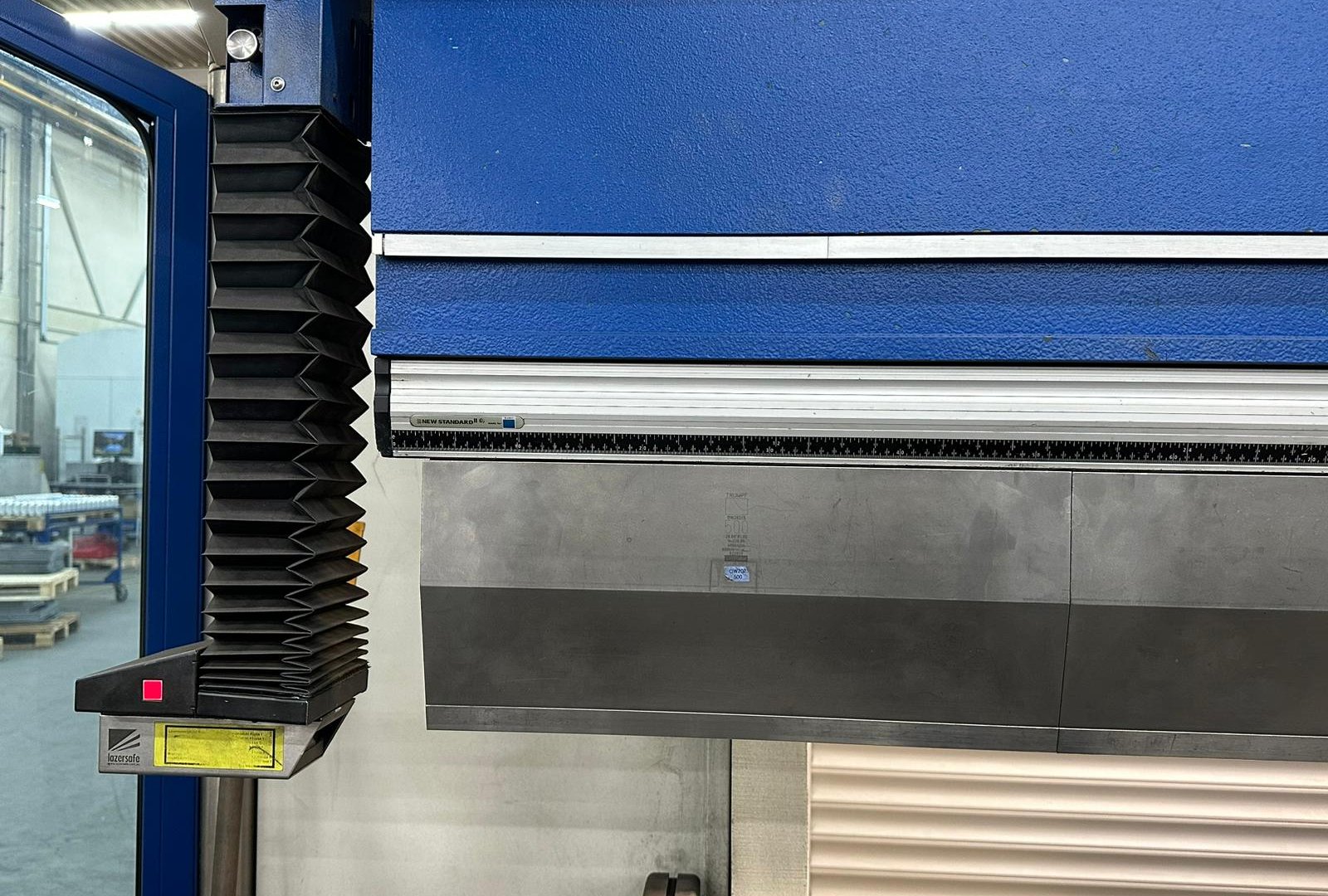

Lazer safe safety system
Hydraulic clamping
Electro hydraulic down stroking
Backgauge 4-axes system
Rack and pinion drive for X and R Axes

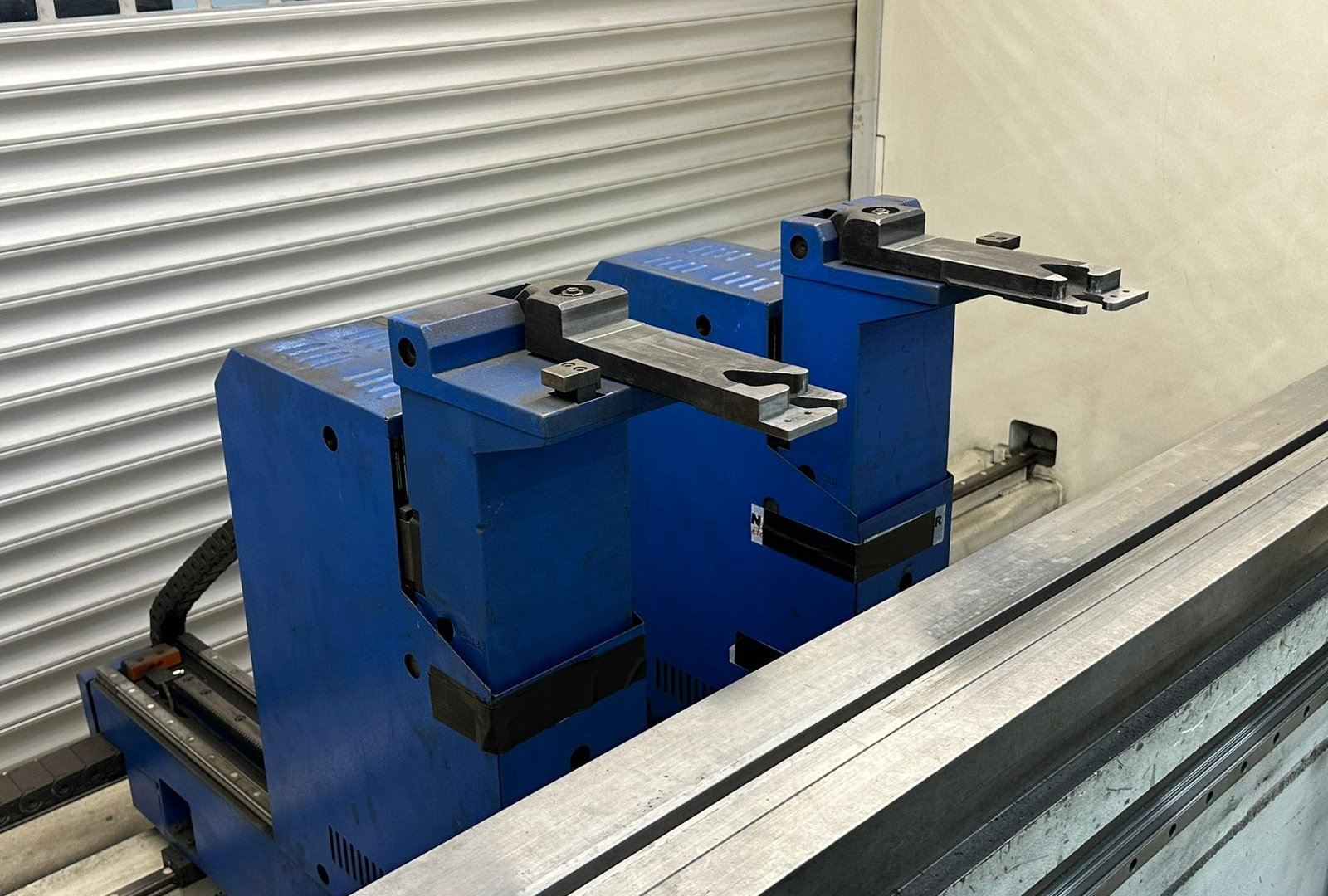

Bending help T1 and T2 on front machine
Availebel after summer 2023
Max. bending length: 4420mm
Distance between column: 3680mm
Max. pressing force: 320T
Dis. Beam - Table: 735mm
Beam stroke: 445mm
Table Width: 200mm
Troth beam: 420mm
Approch speed: 220mm/min.
Working speed: 10mm/min.
Return speed: 220mm/min.
Adjustment X-Axis back gauge:860mm
Number of controlled axis: X, R, T1, T2
Crowning: Yes
Hydraulic toolclamping: Wila New standard
Power: 30kW
Length: 5300mm
Width: 1950mm
Height: 3200mm
Weight: 22800kg
