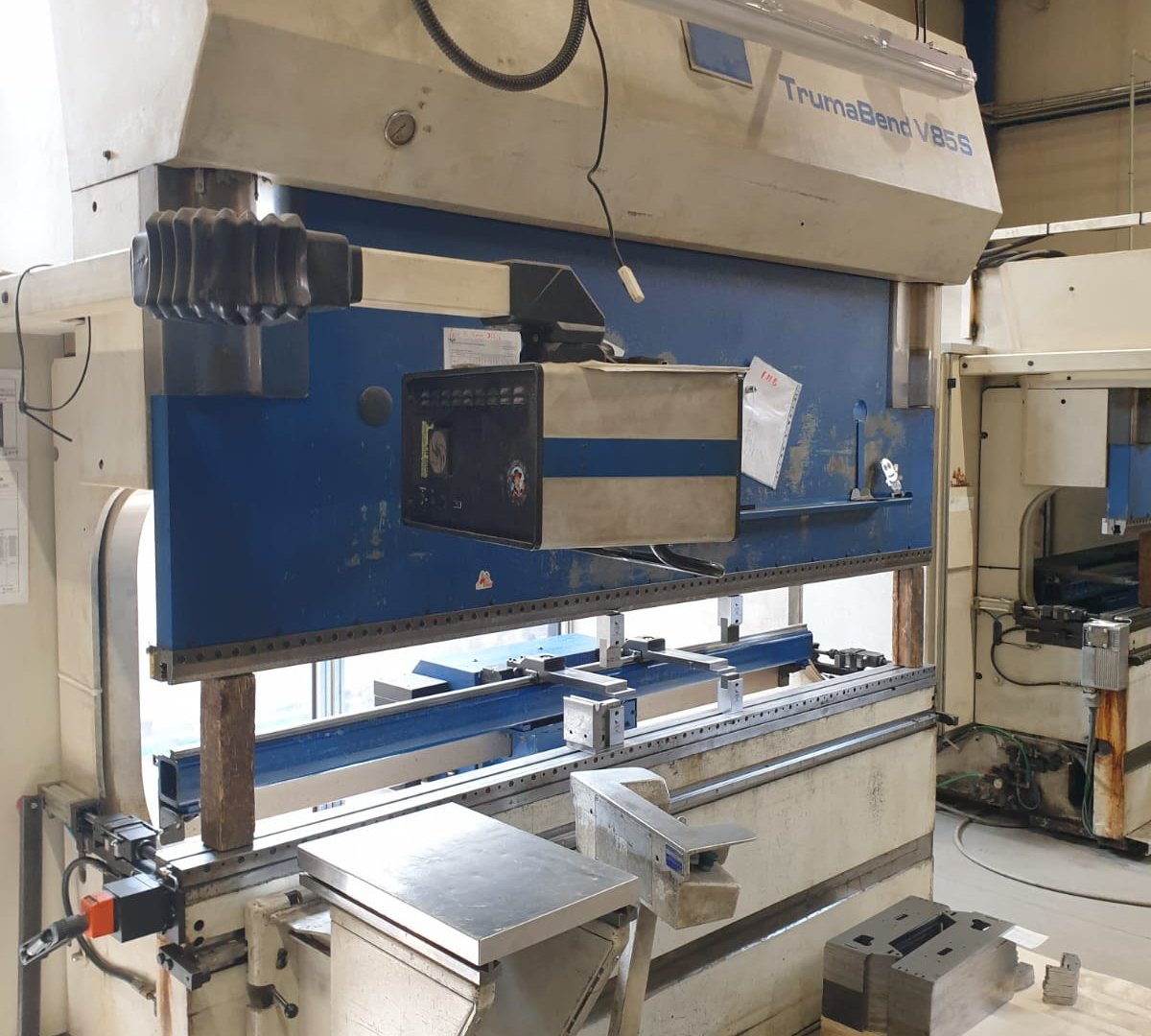

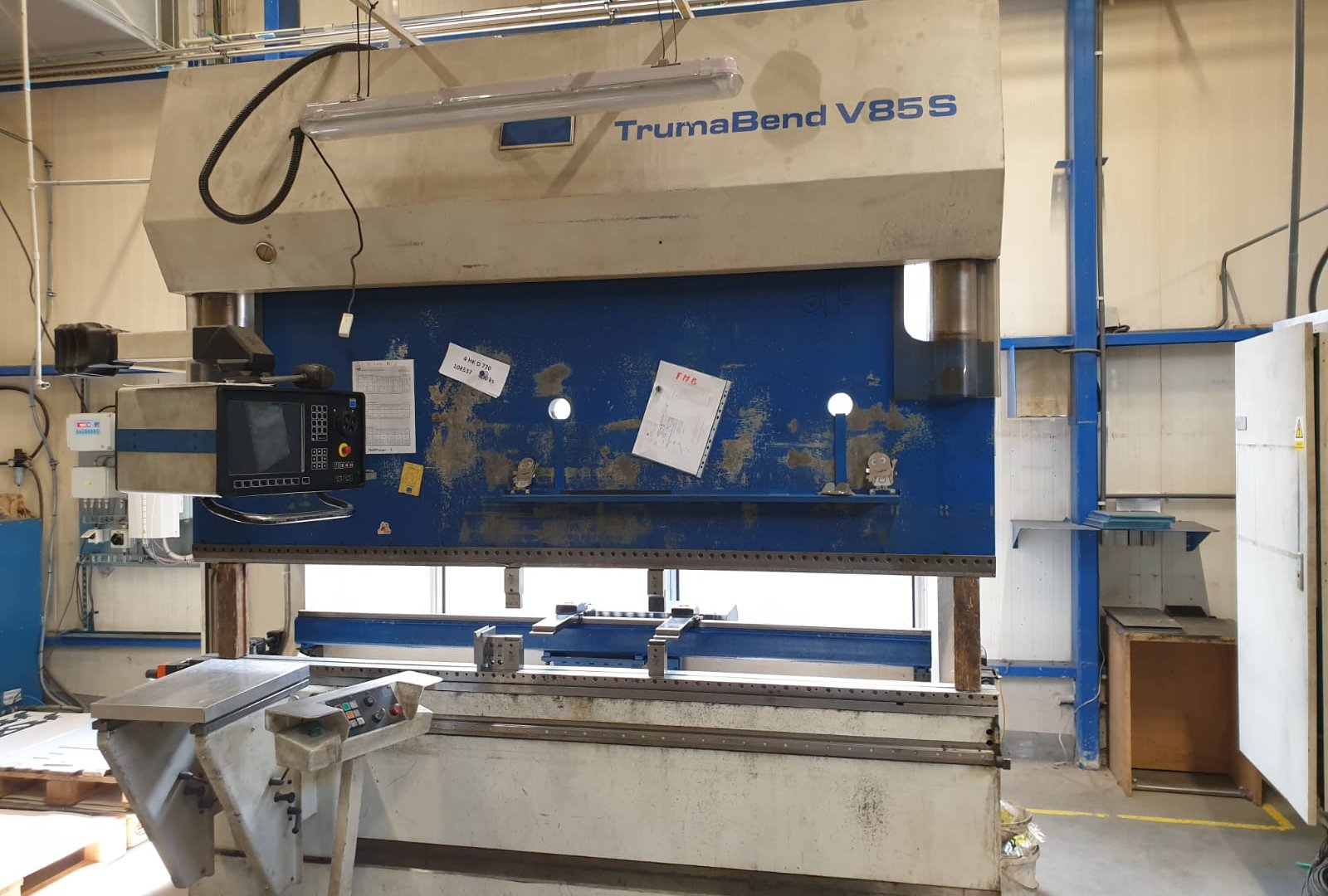

TRUMPF - TrumaBend V85S CNC Pressbrake 2550 x 85 T - 6 Axis 6513 = Mach4metal
Max. bending length 2.550 mm
Distance between column 2.260 mm
Max. pressing force 85
Dis. Beam – Table 385 mm
Beam stroke 215 mm
Table Width 120 mm
Troth beam 410 mm
Approch speed 200 mm/min.
Working speed 10 mm/min.
Return speed 135 mm/min.

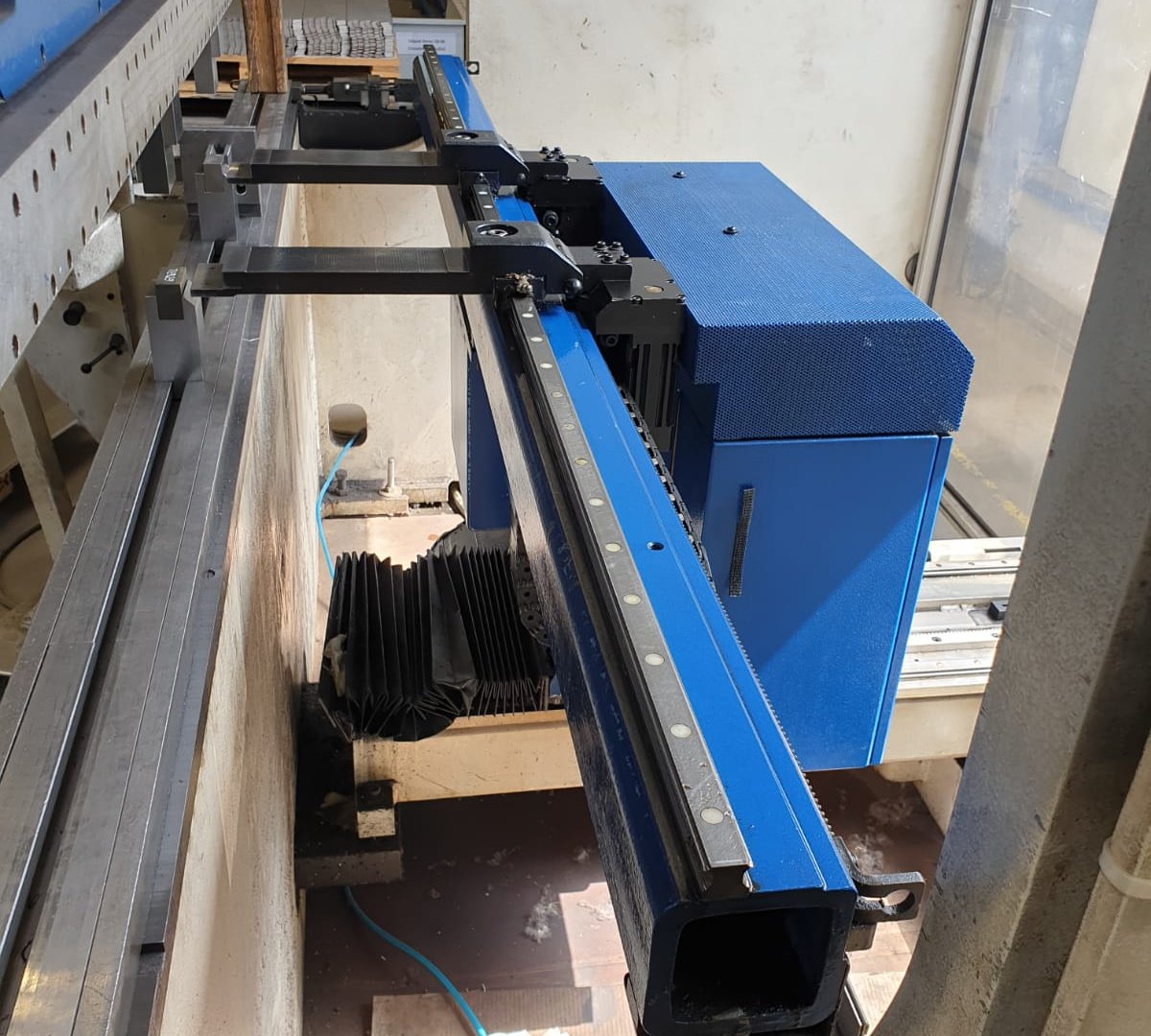

Adjustment X-Axis back gauge 1.000 mm
Number of controlled axis 6

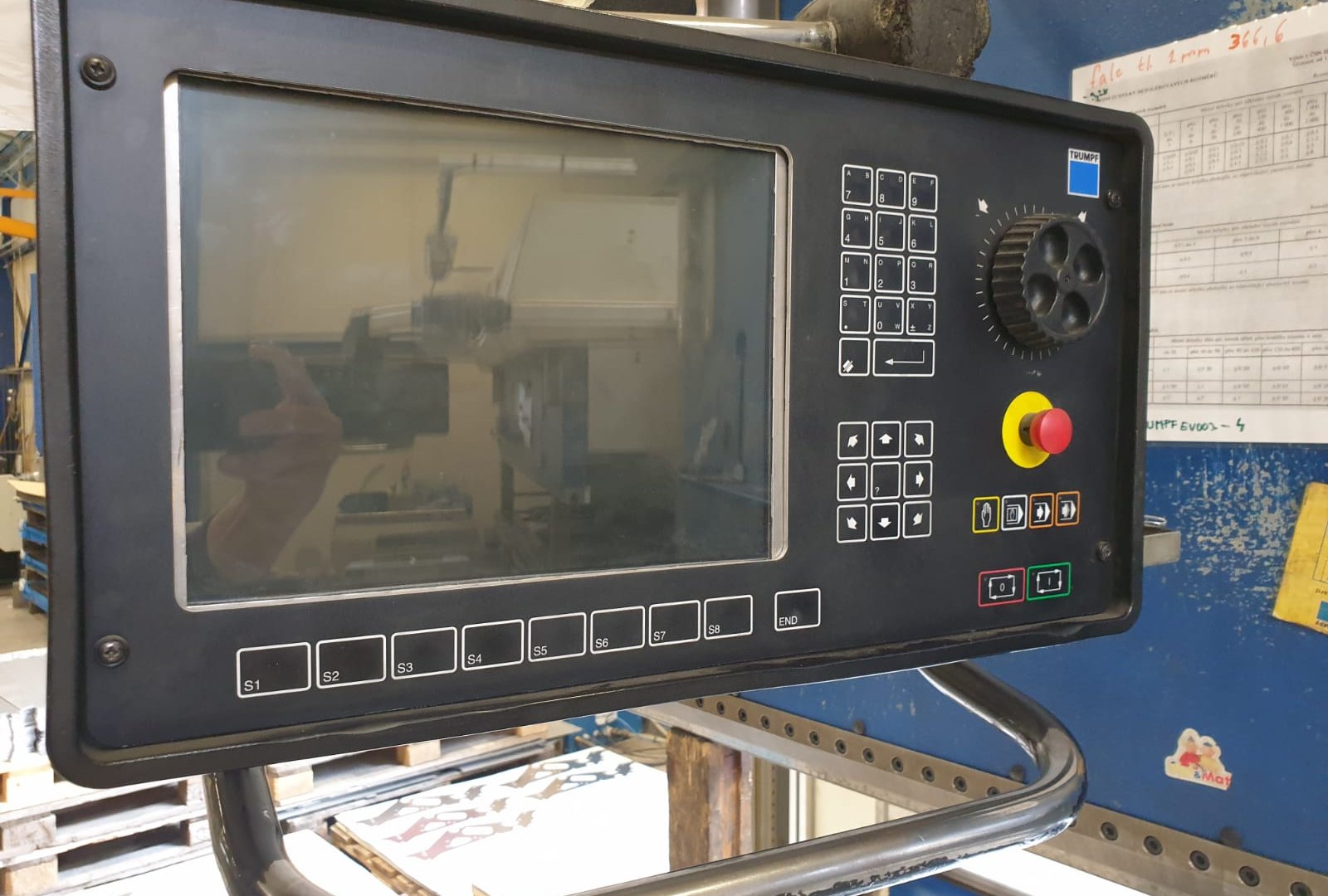

Control Delem
Specifications:
TRUMPF - TrumaBend V85S CNC Pressbrake 2550 x 85 T - 6 Axis 6513 = Mach4metal
Max. bending length 2.550 mm
Distance between column 2.260 mm
Max. pressing force 85
Dis. Beam – Table 385 mm
Beam stroke 215 mm
Table Width 120 mm
Troth beam 410 mm
Approch speed 200 mm/min.
Working speed 10 mm/min.
Return speed 135 mm/min.
Adjustment X-Axis back gauge 1.000 mm
Number of controlled axis 6
Control Delem
