Specifications
Tonnage:35T / 31.8 t
Hyd/Mech:Hyd
OA Length:4.20 ' / 1.3 m
OA (Overall) Length:52" / 1,320.8 mm
BH:3.20 ' / 1m
BH (Between Housings):38" / 965.2 mm
Stroke:2.500 " / 63.5 mm
Weight5650 lbs
Description

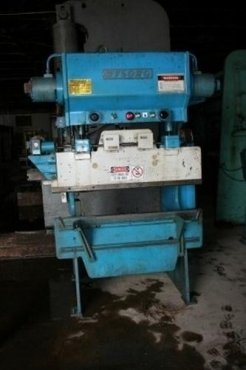

35 Ton, WYSONG, No. H-3552, 52" OA, 38" BH, 2.5" stroke, 5 HP, 1984
Capacity 35 tons
Bending length, overall 52"
Distance between housing 38"
Bending capacity 52" x 10 ga.
Stroke range 0 to 2-1/2"
Die space 9"
Ram adjustment 3"
Depth of gap 8-1/2"
Motor 5 HP
Electronics 230/460/3/60
Weight, approx. 5,650 lbs.
Dimensions (L x W x H)
EQUIPPED WITH:
Ram tilt adjustment, Adjustable stroke control
