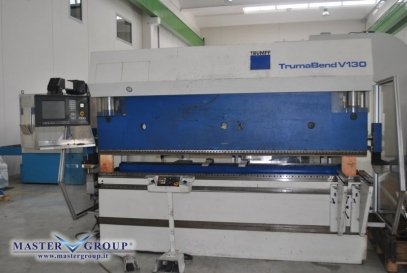

TRUMPF - TRUMABEND V130 USED 6-AXIS SYNCHRONISED CNC PRESS BRAKE
Specifications:
AXIS: Y1-Y2-Z1-Z2-X-R
BENDING LENGTH: 3050 mm
TONNAGE: 130 ton
THROAT DEPTH: 410 mm
DISTANCE BETWEEN UPRIGHTS: 2720 mm
UPPER BEAM TRAVEL: 205 mm
X-AXIS TRAVEL: 600 mm
R-AXIS TRAVEL: 250 mm
APPROACH SPEED: 200 mm/sec
RETURN SPEED: 135 mm/sec
WORKING SPEED: 1-11 mm/sec
CONTROL UNIT: DELEM
WEIGHT: 11250 Kg
OVERALL DIMENTIONS: 3640x2210x2375 mm
ACCESSORIES: HYDRAULIC TOOL LOCKING; DRIVEN CENTERING
NOTE: N.2 FRONT SHEET METAL SUPPORTS
