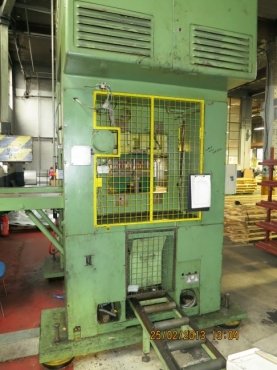

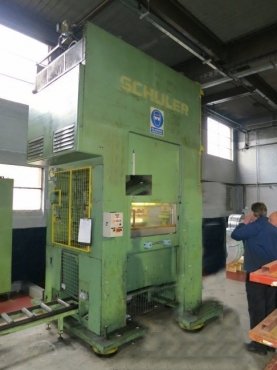

One used Schuler A2-125, double sided high speed blanking press.
Type of control conventional.
Capacity: 125 tons.
Fixed stroke 25 mm.
No of strokes per minute (speed range) 100 - 300 SPM.
Distance between columns 1000 mm.
Distance table/ram, max. stroke up, adjustment up 400 mm.
Table surface area 1150 x 1000 mm.
Drop hole in the table 900 x 220 mm.
Table height over floor 1200 mm.
Side window 300 mm.
Ram surface 1000 x 850 mm.
Slide drill hole x depth 65 mm.
Ram adjustment 60 mm.
Total power requirement 33,0 kW.
Weight of the machine 27 tons approx.
Dimensions of the machine 2.6 x 1.6 x 4.5 m approx.
Additional information -

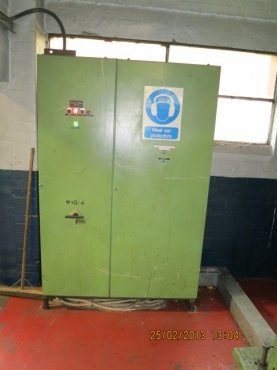

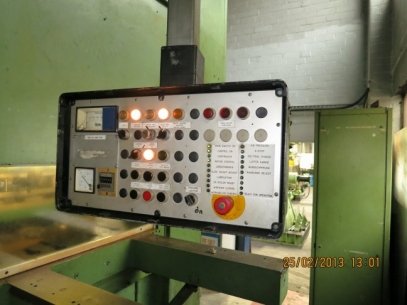

With infinitely variable drive, pneum. clutch, pneum. slide counterbalance, motorised slide adjustment, circular oil lubrication, operator's pendant control, electrical cabinet.
Mounted on 2 steel plates with Barry mounts attached.
