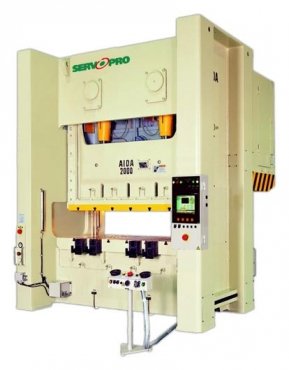

AIDA Direct Servo Former NS2-D Straightside Servo Press

AIDA presses that feature ServoPro technology, like the NS2-D Straightside Servo Press, have unique high torque, low RPM servo motors as well as a direct drive system that enables metalforming processes previously unavailable in conventional mechanical stamping presses.

Straightside Servo Press for Transfer or Progressive Die Forming
With a proven track record for transfer or progressive forming applications, the NS2-D double-crank straightside servo presses provide superior working space and user accessibility. This series fully meets the requirements for high-precision forming and high productivity.

AIDA's 2-Point Simultaneous Actuation Overload Protector
The NS2-D straightside servo press is equipped with metal seal-type hydraulic overload protectors at the left and right suspension points. When an overload occurs, the slide is instantly stopped in order to protect the die. High-precision dies can be used with confidence knowing that the slide and bolster will immediately stop and remain parallel if the overload protector is tripped by an eccentric load. Returning the slide to top dead center will automatically reset the system, without cumbersome valve operation, etc.
