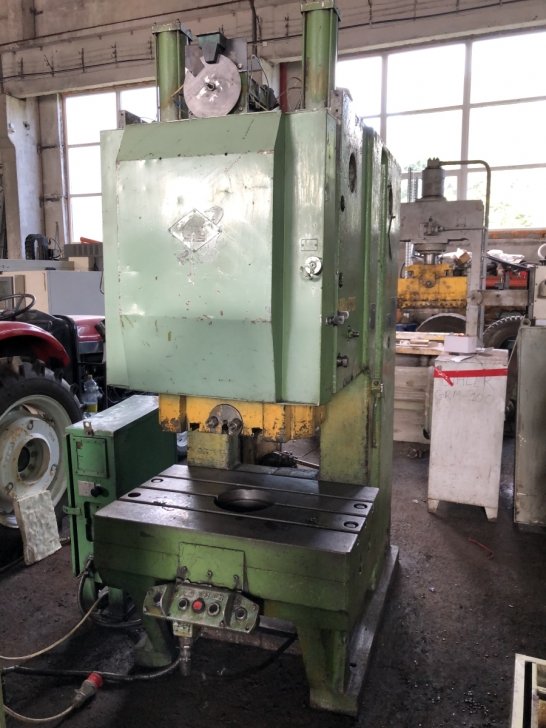

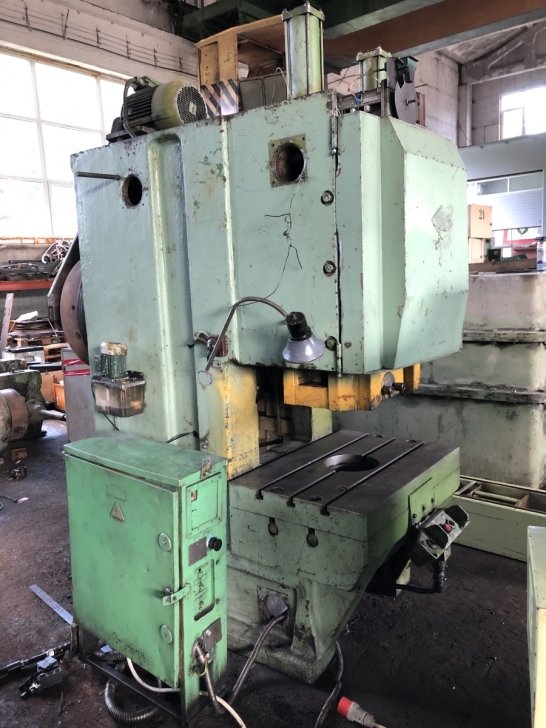

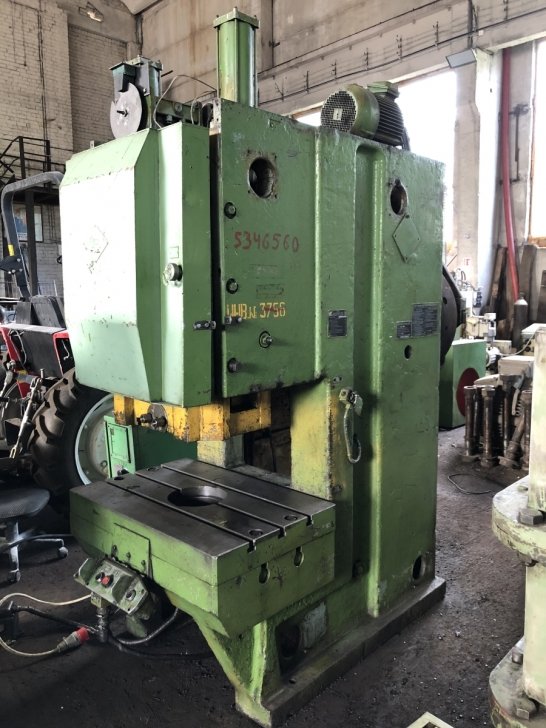

Open single-crank single-action press BARNAUL KE2130 made in USSR.
Specifications:
Nominal force: 1000 kN
Number of continuous strokes per minute: 72
Material width: 250 mm
Material thickness: 0,5-5 mm
Max. step of feed: no more than 250 mm
Feed speed: no more than 18 mm
External roll diameter: 1200 mm
Unwinding drum diameter:
-Max.: no more than 430 mm
-Min.: at least 350 mm
Roll weight: no more than 1800 kg
Slide stroke adjustable:
-Max.: at least 130 mm
-Min.: no more than 10 mm
Slide strokes per minute:
-Continuous, not adjustable: at least 100
-Single: at least 45
Max. distance between table and slide in its lower position at max. stroke: 400 mm
Distance adjustment between table and slide: at least 100 mm
