For Sale Listings
VORONEZH, K3034, C-FRAME, PRESSES
  • Condition:Used
  • Category:PRESSES
  • Type:C-FRAME
  • Manufacturer:VORONEZH
  • Model:K3034
  • YOM:-
  • Location:Lithuania, Vilnius
  • Price:On request
  • Stock No:-
  • Control:-
  • ID:AS28687
Description:

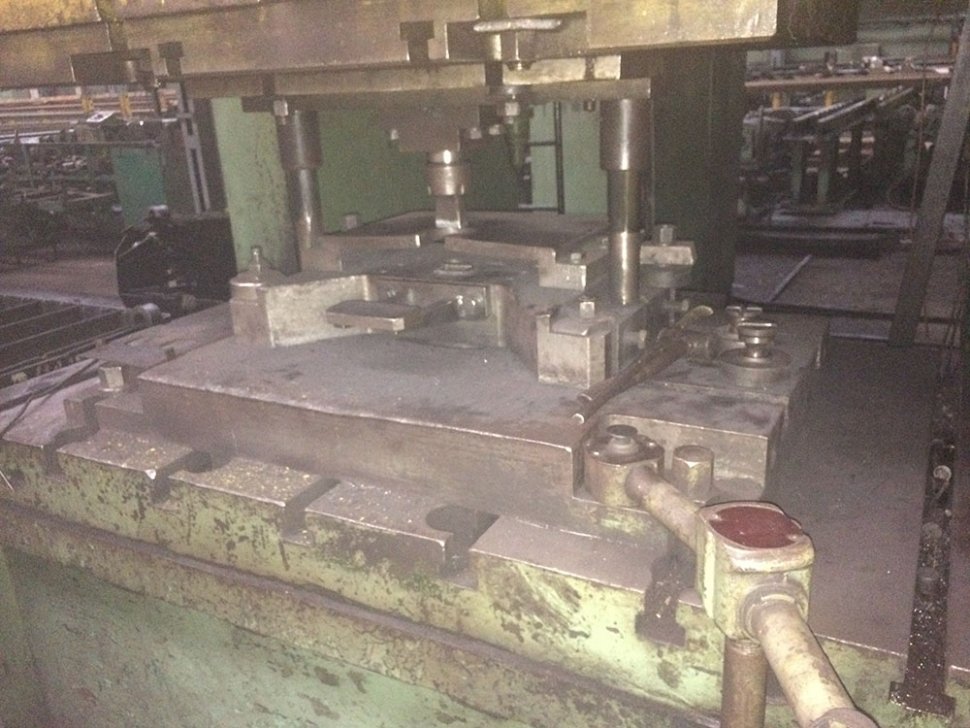

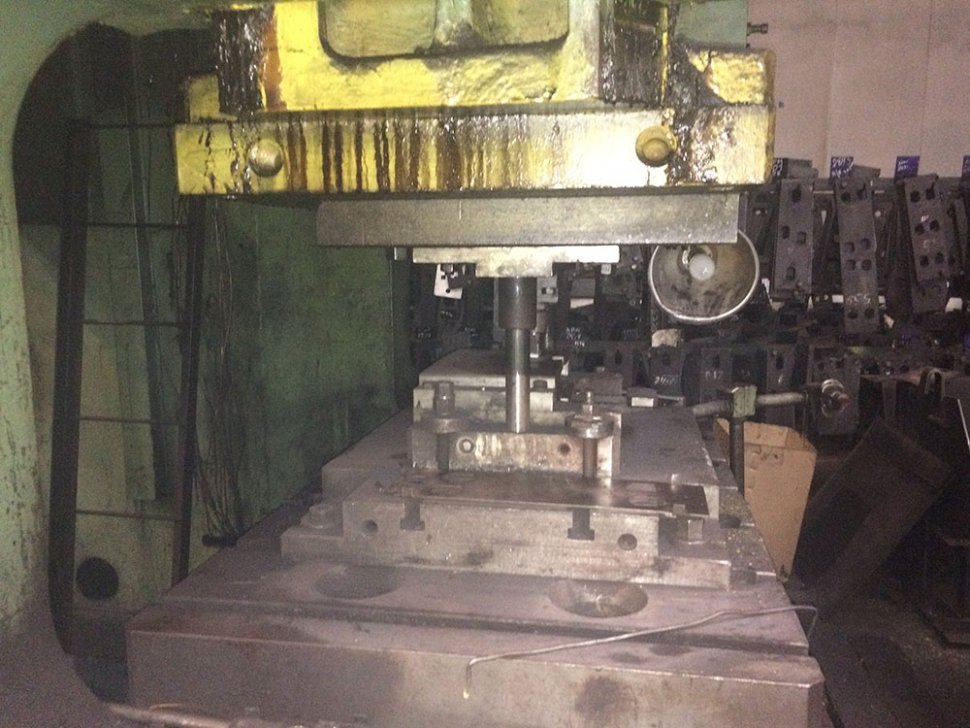

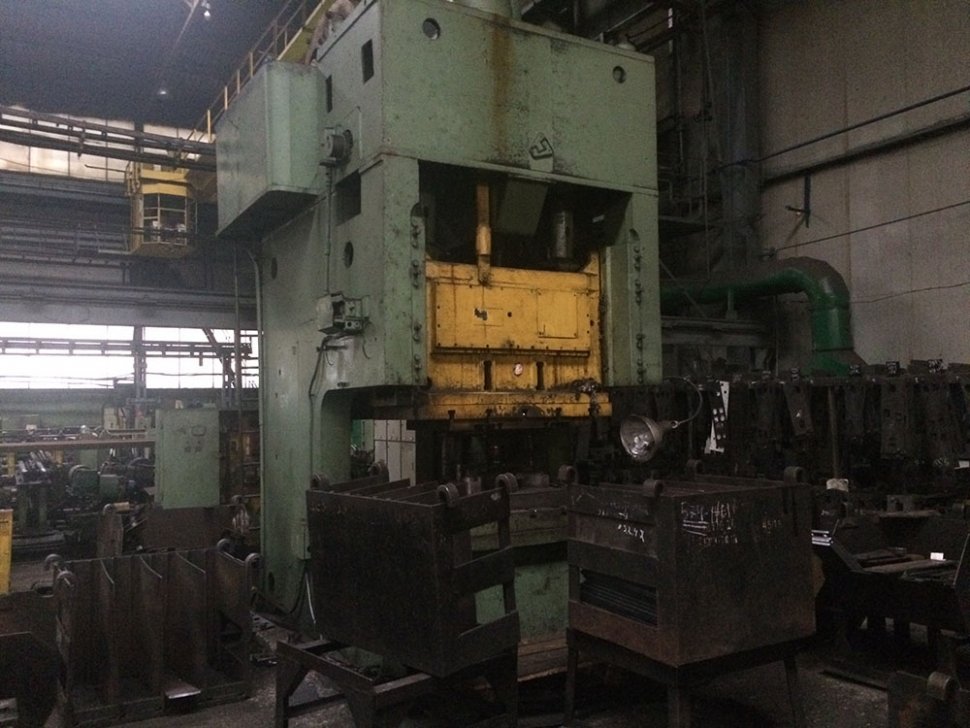

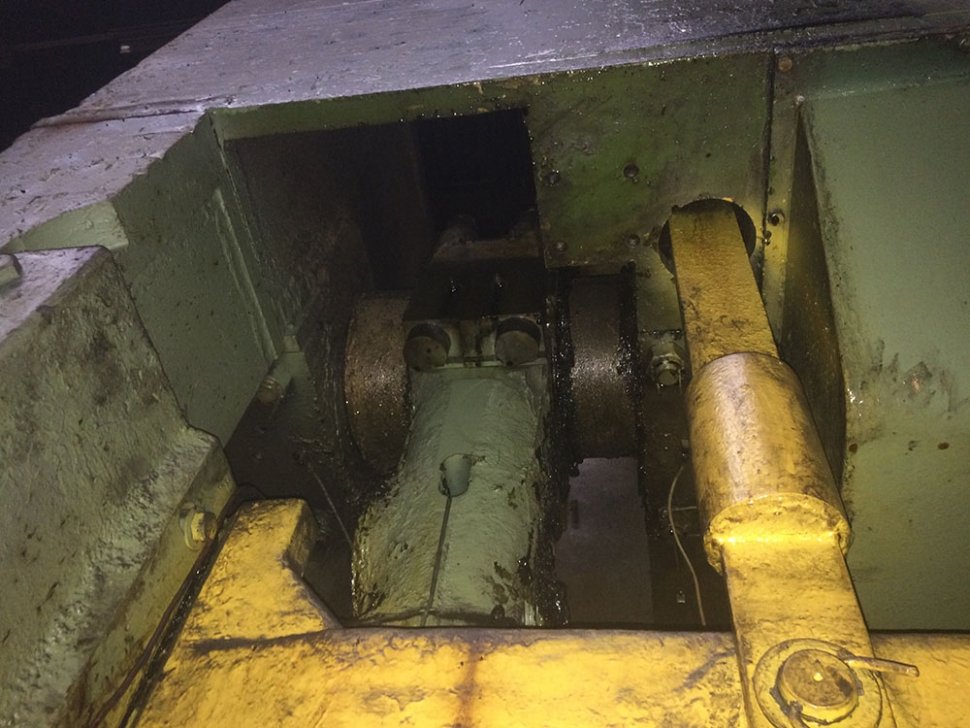

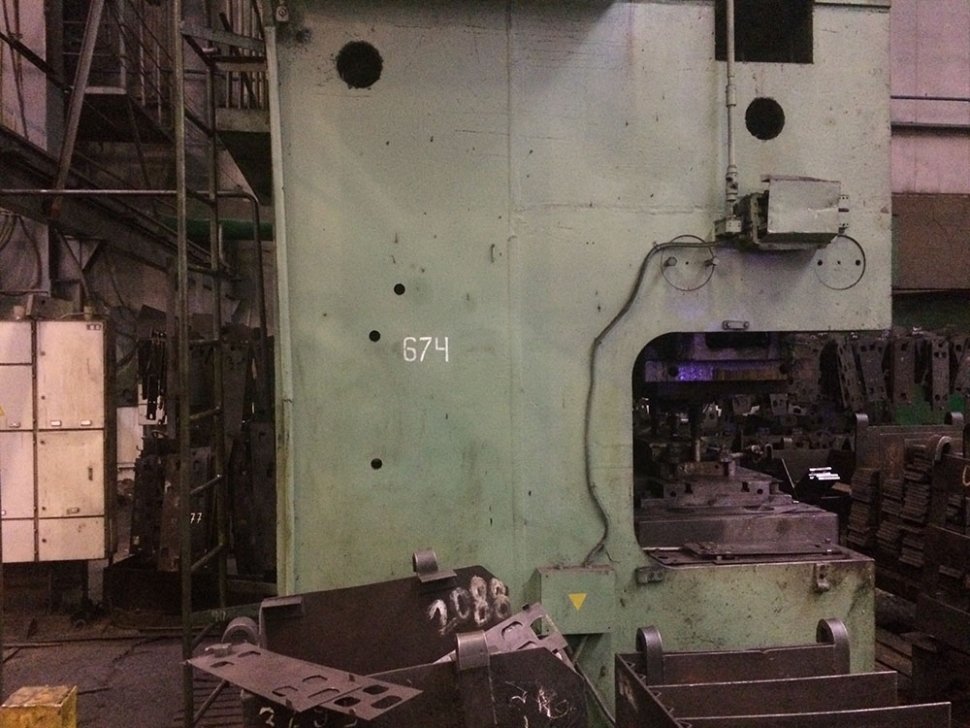

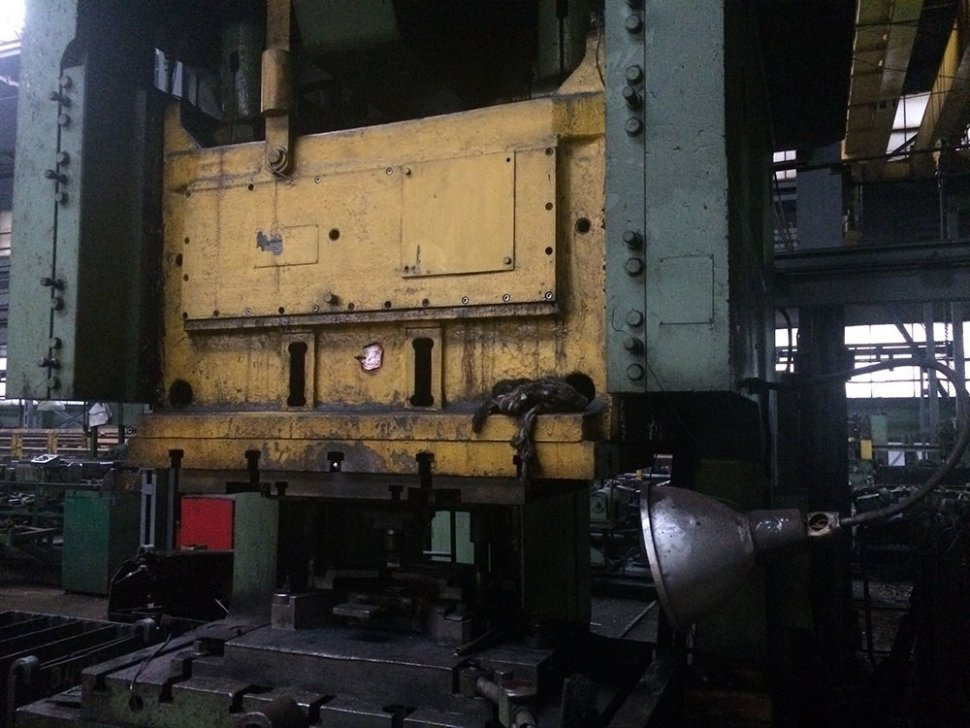

Double-crank single-action closed press VORONEZH K3034 made in Russia.
Specifications:
Nominal press force: 250 tons
Slide stroke: 350 mm
Number of slide strokes per minute: 30
Distance between bolster plate and slide plate in its lower position at upper position of adjustment: 510 mm
Size of distance adjustment between table and slide: 200 mm
Bolster plate thickness: 150 mm
Slide plate thickness: 100 mm
Table dimensions:
-Left-to-right: 2330 mm
-Front-to-back: 1020 mm
Distance between bed columns in daylight: 1850 mm
Bolster plate dimensions:
-Left-to-right: 1800 mm
-Front-to-back: 1020 mm
Distance between slide axis and bed: 610 mm
Slide plate dimensions:
-Left-to-right: 1550 mm
-Front-to-back: 860 mm
Table opening dimensions:
-Left-to-right: 1090 mm
-Front-to-back: 690 mm
Stroke of pneumatic cushions: 130 mm
Main drive electric motor: 33 kW, 930 rpm
Press dimensions:
-Left-to-right: 3050 mm
-Front-to-back: 3070 mm
-Height above floor level: 5380 mm
Weight:
54040 kg
Dealer name:
EMTC Machinery Lithuania, Vilnius
