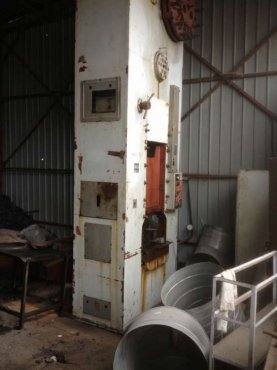

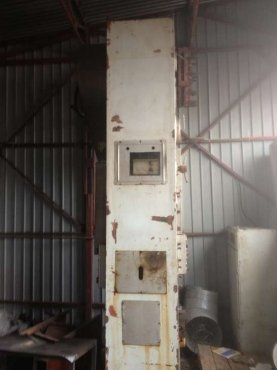

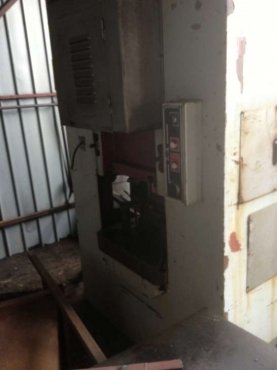

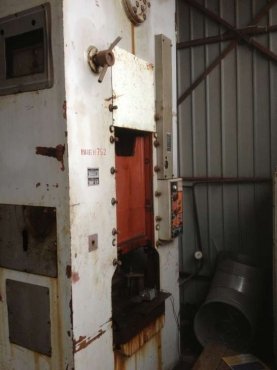

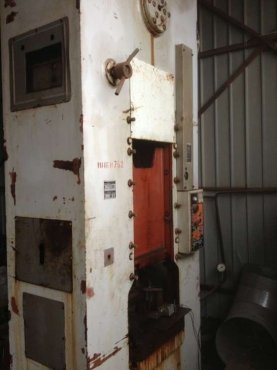

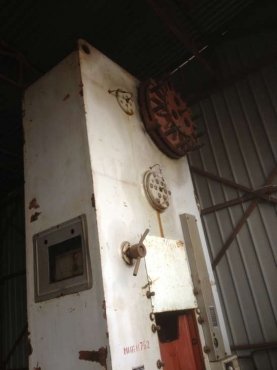

Double column crank press LU 160 made in Czechoslovakia.
Specifications:
Nominal force: 160 ton
Passage: 630 mm
Ram stroke: 125 mm
Number of ram strokes per min: 33
Working way: 18,7 mm
Shut height: 510 mm
Bolster plate surface: 572 mm
Force of holder: 150 kN
Force of top ejector: 63 kN
Force of low ejector: 160 kN
Ram adjustment: 110 mm
Stroke of top ejector: 40 mm
Stroke of low ejector: 250 mm
Clamping surface of ram: 620 x 610 mm
Clamping cavity in ram: 63/95 mm
Dimensions of faceplate: 625 x 795 mm
Thickness of faceplate: 110 mm
Overflow in table: 315 mm
Diameter of drift: 60 mm
Number of electromotors: 2
Output of main electromotor: 22 kW
Consumption of intake air for 1 engagement of clutch: 15 dm3
