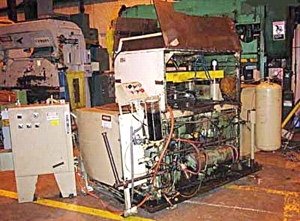

60 TON MODEL 60TP DAHLSTROM SLIDING DIE TYPE 4 POST CUTOFF PRESS

60 TON MODEL 60TP DAHLSTROM SLIDING DIE TYPE 4 POST CUTOFF PRESS

Serial No. P773New - 1980

EQUIPPED WITH:
Air Clutch and Brake. Pushbuttons For Start - Stop. Selector Switches For Forward - Reverse - Hand - Automatic & Safe - Run. Automatic Oil Lubrication
Air Surge Tanks. 10 HP 1200 RPM 230/460/3/60 Motor.

SPECIFICATIONS:
Tonnage Capacity: 60 Tons
Stroke: 2"
Shut Height SDAU: 6.25" - 8.25"
Die Area: 29"
Post Diameter: 3"
Distance Between Posts: 31" L-R x 14" F-B
Floor to Top of Bed: 40"
SPM Approximate: 110
Approximate Weight: 4,000 lbs
Approximate Overall Dimensions: 103" L-R x 78" F-B x 70" H

103 x 78 x 70

14,000
