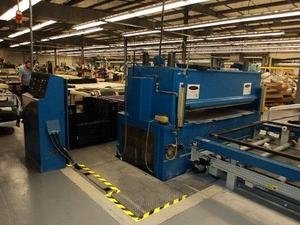

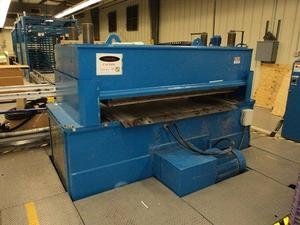

200 TON PEDERSON 4-POST HYDRAULIC DIE CUTTING PRESS - PREOWNED
Model NO.: #VP-T-200-20 / 1602M500-2012
Capacity: 200 TON
Maximum Stroke: 13"
Maximum Daylight: 18"
Shut Height to Bed: 5" (WITH POWER ADJUSTMENT)
Maximum Die Space: 78-1/2" RL X 49" FB
Upper Platten Size: 3" TH X 79" RL X 47" FB
Post Size: (4) 4-1/2" O.D.
Dist Between Posts: 83"
Floor to Bed (Existing): 31-1/2" (W/16-1/2" PIT)
Dist Bottom of Base to Bed: 48"
Electrics: 30 HP MAIN MOTOR, 1758 RPM, 575 V
W/ ELECTRICAL CONSOLE
Approx. Dimensions: 7'6" H X 10'4" RL X 6'4" FB
Approx. Weight: 15,000 LBS.
Equipped With:
DIE CONVEYOR 86" W X 20'6" L X 7' FB - FLOOR MOUNTED 5,000#
DIE CART 10'H X 8'W X 18'L,ELECTRICAL PANEL-2 AB SLC'S 6,000#
(USED IN AN AIR BAG MFG PRODUCTION LINE)
Year: 1988
Condition: EXCELLENT
Location: COLUMBIA, TN (Nashville area)
