Some information:

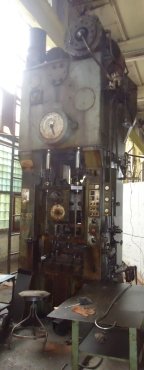

Mechanical( double action) press Erfurt PKnT 160
160 tn effort
year of manufacturing
Erfurt,Germany
Specifications:
Mechanical( double action) press Erfurt PKnT 160
Specification:
Max.effort of inner ram: 95 t
(at a distance of to the bottom dead point: 22mm)
Max.effort of outer ram: 65 t
(at a distance of to the bottom dead point: 4mm)
Stroke of inner ram: 425mm
Stroke of outer ram: 265mm
Adjustment of rams; 130mm
Max. stroke of cushion: 200mm
Max. effort of retention: 25 t
Max. effort of ejection: 4 t
