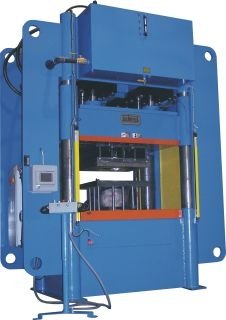

Used to draw metal toilet bowls to be used in prison facilities
5” x 48” x 60” bolsters
20” stroke Parker Cylinders
Ram speeds: 116 IPM approach; 23 IPM pressing; 147 IPM return
Hydraulic power system
Automatic ram slide lubrication system
Industry leading oversized ram guide bushings for superior ram guidance and rigidity
Programmable bed cushion
Straight side end-frame design serve to unitize the frame and offers superior structural integrity
TEFC (behind the pump) motor mounted oil cooler
Light curtain guards front and rear openings of the press
Two pedestal mounted control stations with dual ergonomic zero force touch buttons with anti-tie down, anti-repeat cicuitry
Allen Bradley PLC, programmable control system with touch screen and recipe handling - Level 2
