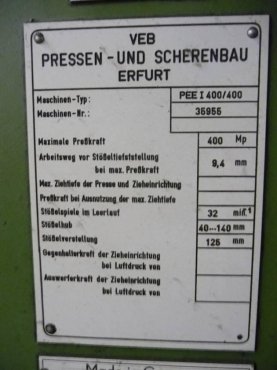

nominal pressure: 400 t
no. of strokes: 32/min
adjustable stroke: 40 - 140 mm
main power motor: 30 kW
throat: 400 mm
bed area: 1.250 x 750 mm
ram area: 800 x 630 mm
adjustment of slide: 125 mm
distance bed to slide: 450 mm

machine dimensions
length: 3,7 m
width: 1,6 m
height over floor: ca. 3.500 mm
machine weight: 25 tons

-
