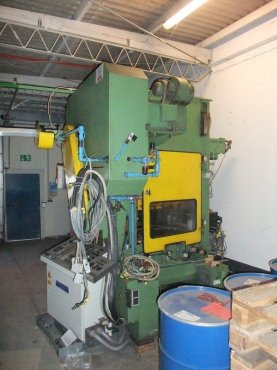

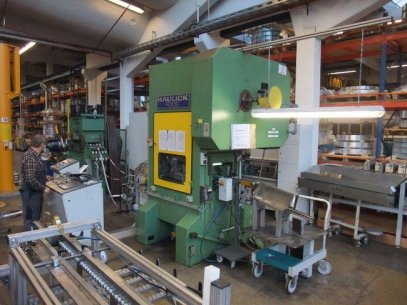

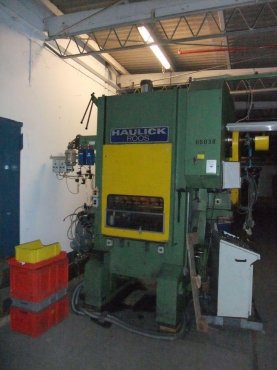

HAULICK + ROOS RVD 100-910 with H. SCHLEICHRE unwinding reel + leveler



Specifications punching machine

Speed ​​range 30-300 min-1
Drive power 29 kW
Ram stroke 10-100 mm
Ram adjustment 0-80 mm
Peg-hole diameter. 50 mm
Weight 15000 kg
Of ram clamping surface 870 x 550 mm
Working table 810 x 700 mm
Distance between uprights 910 mm along
Distance between table and ram at max. Stroke 320 mm (ram adjustment up)

Equipment

IMCO pressing force display device 518-2 / overload protection

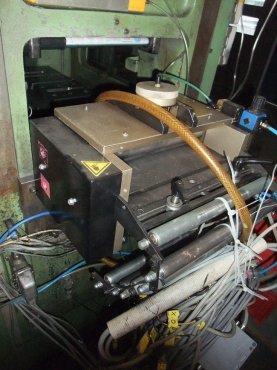

Roll feeder (+ summer Zehnder type V 132 AM)
DC drive Baumueller GNA
A system for roller lubricator

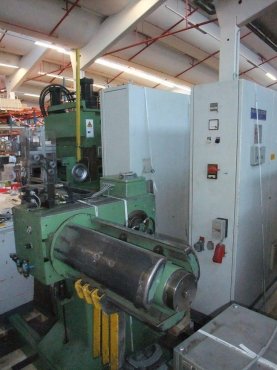

H.SCHLEICHER HD 100-650 unwinding reel

Specifications

Maximum load 2 x 1.5 tons.
Bandwidth 15 - 450 mm
Voltage 24/50 Hz 380V
Maximum cross section 675 mm ²

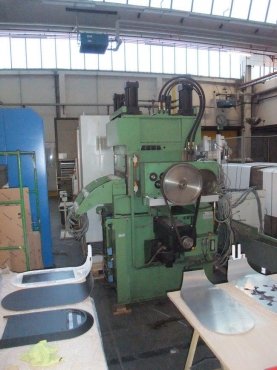

H.SCHLEICHER RMS 8-53 / 160-450 leveler

Specifications

Drive power 11 kW
Strip thickness 0.5 - 1.5mm
Bandwidth 15 - 320 mm
Straightening rollers 8 pieces

-
