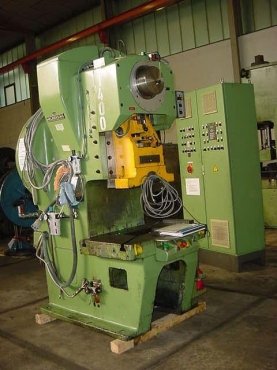

Hydraulic clutch-brake combination with integrated Zsatzbremse, gear train in an oil bath, fixed table, front end support, break device, hydraulic unit, UVV 2-Hand-Bedienung/Handeinlegearbeiten, motor 11 kW, 1460 min-1, 400/690 Volt, Gew.5.800 kg Page yield approx 100 t throat 300 mm Ram adjustment 80 mm ram area approximately 540 x 290 mm Hubverstellbarkeit of 20 - 128 mm stroke rates continuously variable from 30 - 100 min-1 table area approximately 920 x 600 mm Durchfalloch in table 300 x 180 mm size. Distance between table and ram at gr stroke up, adjustment up 440 mm stem with pneumatic stroke adjustment with automatic. Automatic lubrication with cabinet electric drive 400/690 Volt
