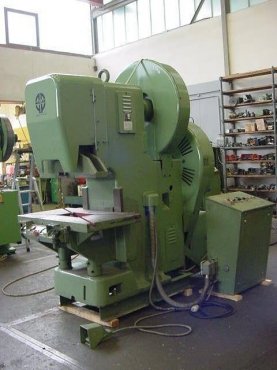

Pneum. actuated disc clutch and spring-loaded disc, with DESCH LUTEX auxiliary brake, PIV variable speed, wheel gear, adjust. Table, UVV 2-Hand-Bedienung/Handeinlegearbeiten, motor 5.5 kW, 380 V, weight approx 3950 kg Capacity 60 t throat 280 mm Ram adjustment 60 mm ram surface 800 x 200 mm of Hubverstellbarkeit approximately 10 - 90 mm stroke rates infinitely adjustable bar of about 40 - 75 min-1 table top approx 1000 x 560 mm hole in table 300 x 200 mm platen approximately 980 x 540 x 70 rd mm hole in the plate. 100 mm tool-installation height adjustment up at gr stroke and 360 mm with break device with a foot switch with manual lubrication Electric heater with machine feet Drive 380 Volt
