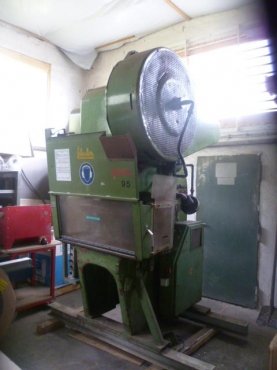

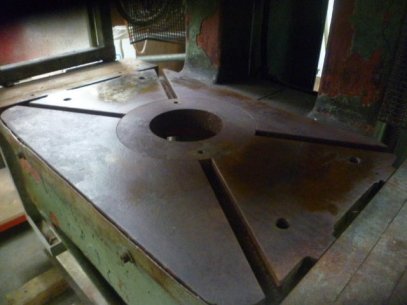

Press force 63 tons. Depth 250 mm Table dimensions (width x depth) 710 x 500 mm diameter through the table. sold up to 280/250 mm stem dimensions (width x depth) 450 x 280 mm in diameter in the depth distance between the platen and ram in area. Stroke down, adjustment up ram 230 mm Distance between table and ram area at max. Stroke down, adjustment up ram stroke 315 mm adjustable to 8100 mm ram adjustment 63 mm thickness of the clamping surface 85 mm diameter through the mounting surface. 110 mm through 290 mm between the body contact distance between the table and guided 505 mm Number of strokes min 120 /. Motor power 5.5 kW motor with speed 1500 to shield the rest to Info Request
