Stock-No. 1106-PR133
Type of machine Eccentric Press - Single Column
Make SCHULER
Type PDr 40/220
Year of manufacture 1962

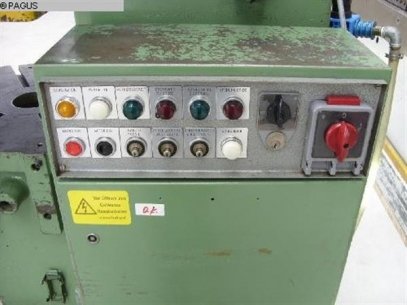

Type of control konventionell
Storage location Pagus NL. Jena Germany
Country of origin Germany
Specifications:
Technical details
pressure 40 t
throat 220 mm
stroke 8 / 88 mm
table pass ΓΈ- abgesetzt 225/200 mm
ram head dimension 400 x 250 mm
distance table/ram 228 mm
stroke adjustable from - to 30 - 140 mm
ram adjustment 63 mm
thickness of bolster 80 mm
no. of strokes 70 Hub/min
total power requirement 5,5 kW
weight of the machine ca. 2600 kg
dimensions of the machine ca. 1100 x 1300 x 2300 mm
