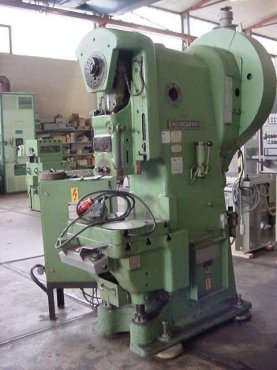

Friction clutch, flywheel drive, adjustable table, front end support, rupture, UVV 2-Hand-Bedienung/Handeinlegearbeiten, hand lubrication, machine feet, cabinet, with motor 3 kW, 380 V, Weight 3220 kg pressure output of 40 t throat 240 mm Ram adjustment ca . 63 mm ram surface 250 x 200 mm Hubverstellbarkeit of approximately 8 - 88 mm stroke rate about 130 min-1 table area about 560 x about 450 mm hole in the table. approx mm platen 550 x 440 x 80 mm hole rd in plate. 90 mm size. Distance between table and ram at max. Stroke down, adjustment up 400 mm 380-volt electric drive
