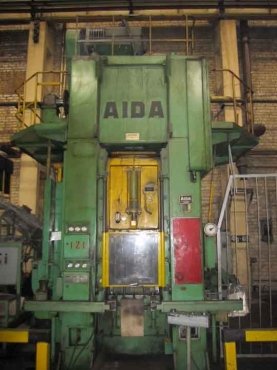

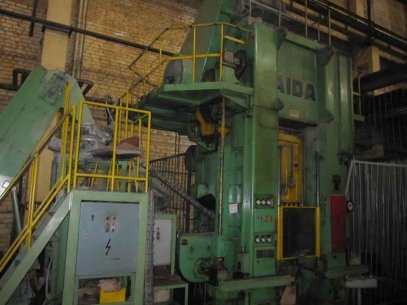

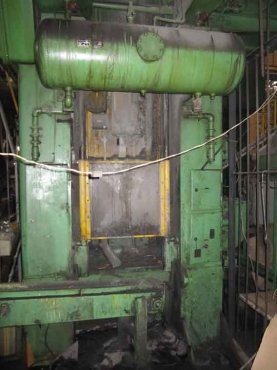

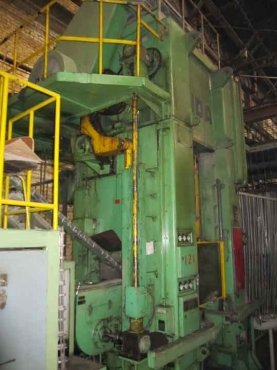

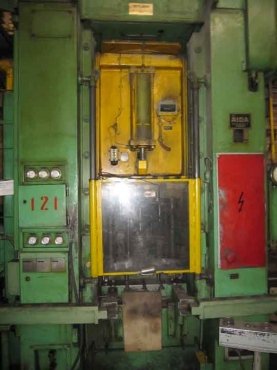

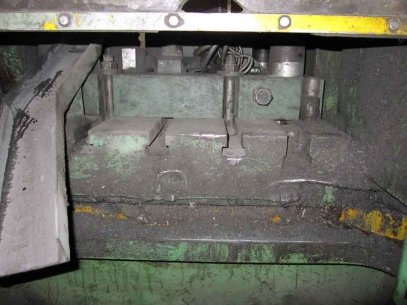

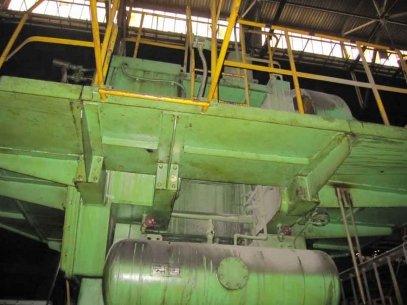

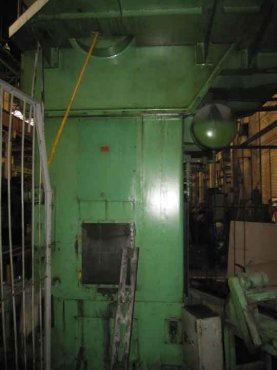

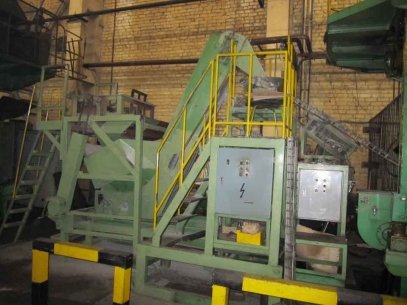

Cold forging mechanical press AIDA PS-30 made in Japan. This press is pneumatic eccentric twin-pillar for cold forging of metal.
Specifications:
Capacity: 300 ton
Slide stroke: 250 mm
Slide strokes per 1 min: 25-35
Die height (adjustment up, stroke down): 650 mm
Slide adjustment: 125 mm
Bolster thickness: 150 mm
Bolster area (LRxFB): 750x900 mm
Slide area (LRxFB): 750x750 mm
Knockout pressure (Upper die): 5 ton
Knockout stroke (Upper die): 70 mm
Knockout pressure (Lower die): 15 ton
Knockout stroke (Lower die): 80 mm
Main motor power: 45 kW
Feeder specification (Gripper transfer):
Feed line height: 370 mm
Feed stroke: 200 mm
Feed direction: left-to-right
Number of stages: 1
