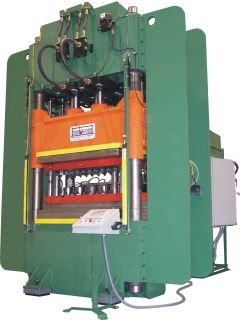

Used to cold forge parts with an integrated progressive die for a leading automotive supplier
3" x 44" x 58" bolsters
10" stroke Parker Cylinders
Ram speeds: 222 IPM approach; 45 IPM pressing; 258 IPM return
Remote hydraulic power system with 400 gallon oil reservoir
36" tall ram slide bushings, instead of Beckwood's standard oversized 18" dimension, for superior bed to ram parallelism
2" thick x 20" wide straight side type, end frame supports to reinforce housing posts side frames and provide additional resistance to off center loading
Heavy duty tie rod construction
Applied force centerline of the press can be shifted left or right via operator control
High speed parallelism control for side to side ram correction
Six station integrated part transfer system with sensory & part verification
18.8 ton capacity, 6" stroke double acting bed ejector cylinder in position #1 of the transfer system and individually controlled
20 ton capacity, 6" stroke double acting bed ejector cylinders in forge positions #2 through #6 of the transfer system and individually controlled
10 ton capacity, 1" stroke ram ejector cylinders above forge positions #3 through #6 of the transfer system and individually controlled
Automatic ram slide lubrication system
Four (4) Vibro Dynamic vibration dampening leveling pads
Fixed stops included in the die
Water cooled heat exchanger with modulating valve
Light curtain guards front opening of the press
Pedestal mounted controls with two hand touch buttons
Inch, semi-auto and full-auto cycle controls
Allen Bradley SLC 5/03 PLC control system with an Allen Bradley VersaView Interface
