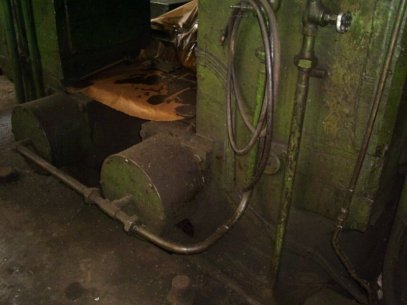

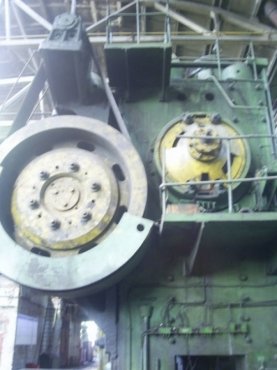

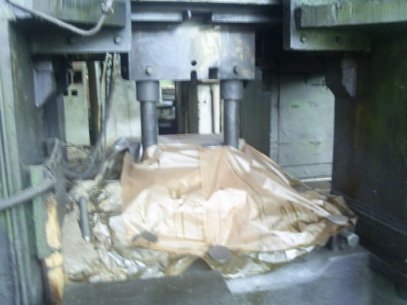

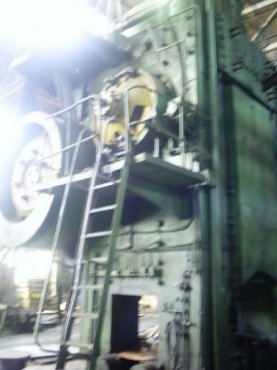

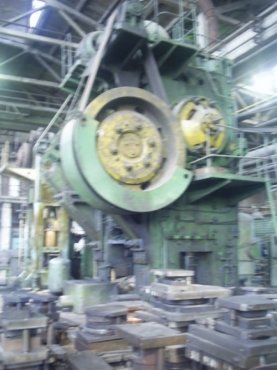

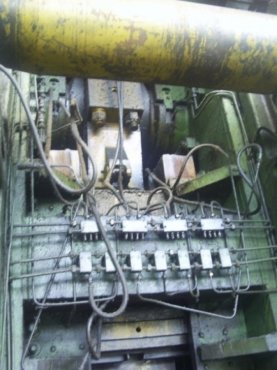

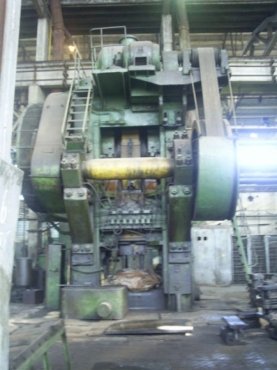

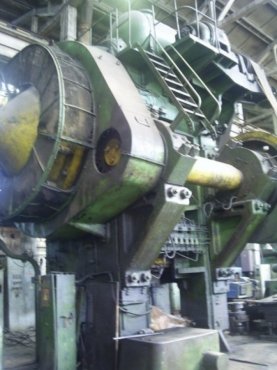

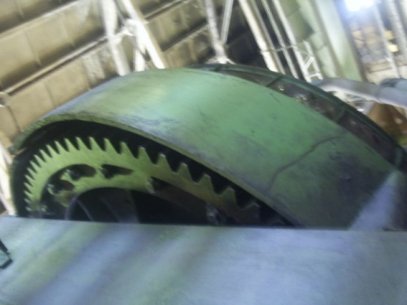

Hot forging crank-stamping press PKKS-4000 made in 1967, Ukraine. Inspection under power is possible.
Specifications:
Capacity: 4000 ton
Ram stroke: 400 mm
Number of ram strokes: 50/1 min
Closed height: 1000 mm
Ram adjustment: 15 mm
Stroke of upper ejector: 60 mm
Stroke of lower ejector: 125 mm
Table size:
- Front-to-back: 1620 mm
- Left-to-right: 1570 mm
Ram size: 1420x1420 mm
Main drive motor output: 185 kW; 980 rpm
Dimensions of angular gaps: 770x995 mm
Dimensions of press according plan: 6100x4710 mm
Height of press: 8680 mm
Height over floor: 6820 mm
