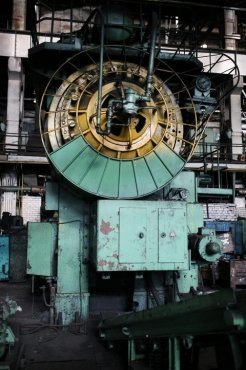

Special model with wide table and ram,
this press has transfer system.
Automatic change height open die.
Good condition, press stopped in 1992 YOM and after not used.
Nominal capacity, t
1600
Slide stroke, mm
300
Number of continuous stroke, min-1
85
Number of single switches, min-1
26
Die height, mm
850
Adjustment, mm
10
Table dimensions, mm
Left to right 1260
Front to back 1300
Slide dimensions, mm
Left to right 1120
Front to back 1400
Dimensions of side windows in press, mm
Height 910
Width 800
Overall dimensions of the press, mm
Left to right 5340
Front to back 4090
Height from floor level 5640
Press weight, kg
120000
