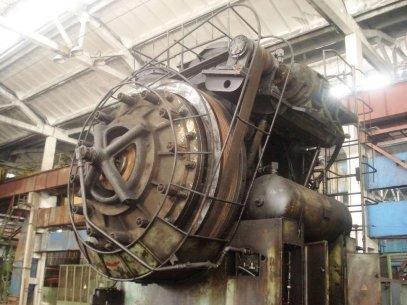

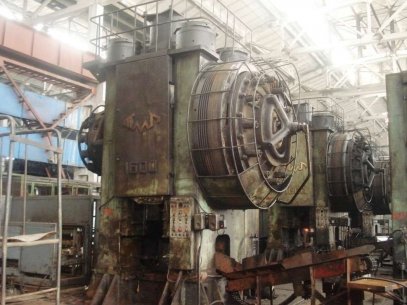

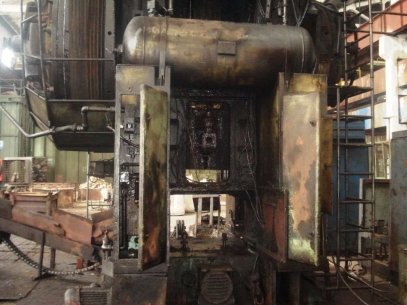

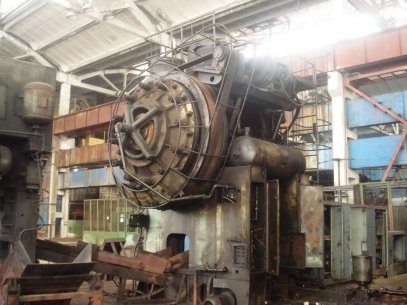

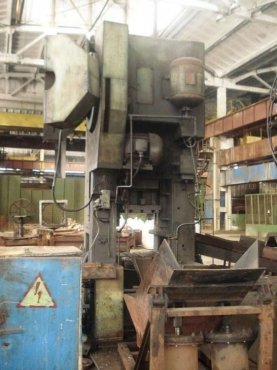

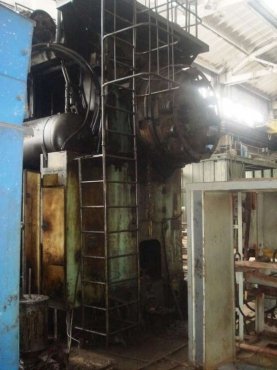

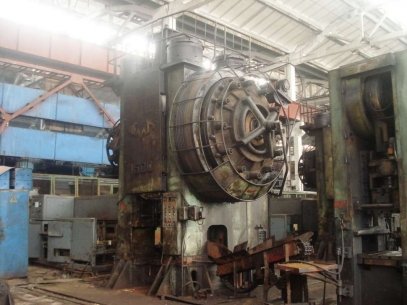

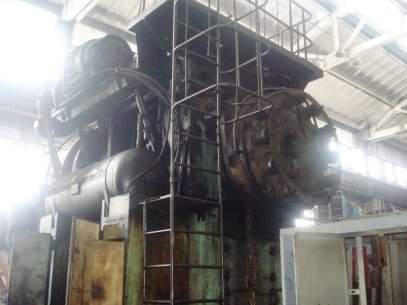

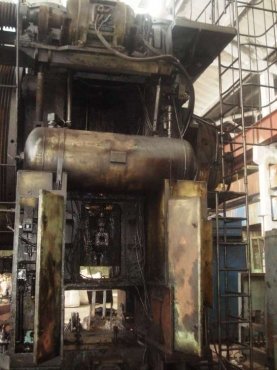

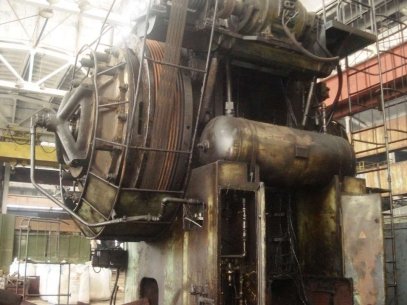

Hot forging press VORONEZH K04.038.842 made in Russia.
Specifications:
Capacity: 1600 ton
Distance adjustment between table and slider: 10 mm
Slide strokes in 1 min: 85
Max distance between table and slider (in lower position of slider): 660 mm
Slide stroke length:
-Of top pusher: 40 mm
-Of bottom pusher: 32 mm
Table overall dimensions:
-From left to right: 1080 mm
-From front to back: 1200 mm
Slider overall dimensions:
-From left to right: 894 mm
-From front to back: 944 mm
The size of lateral windows:
-Height: 710 mm
-Width: 630 mm
Main motor: 90 kW
