Description:

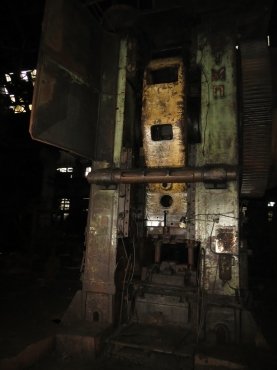

Hot forging press 2500tn,type K8544,1980 year

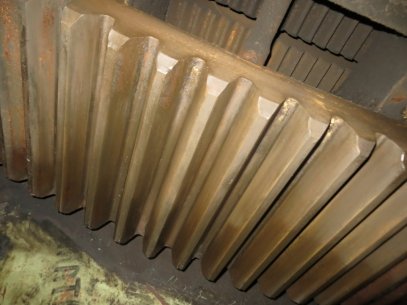

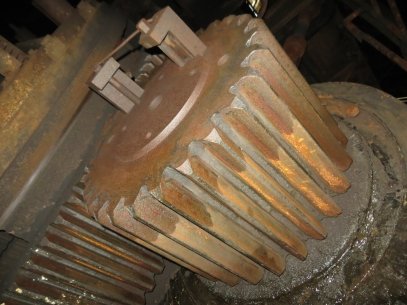

Condition: no cracks or welds. Press was working all time in one production line, all bronze parts and gears are good condition, without wear-out.
Specifications:
Capacity, ton 2500
Table dimensions, mm 1200 x 1400
Ram dimensions, mm 1070 x 1120
Ram stroke, mm 350
Shut height, mm 890
Table-to-ram adjustment, mm 10
Distance between columns, mm 1320
Table height above floor, mm 450
Upper knockout stroke, ton x mm 6,3 x 50
Lower knockout stroke, ton x mm 10 x 50
Number of strokes per minute 60
Working strokes per minute 20
Working air pressure, kg/cm 5
Main motor power, kW 132
Voltage, V 380
Overall press dimensions, mm 5350 x 4680 x 8250
Press weight, kg app. 203000
