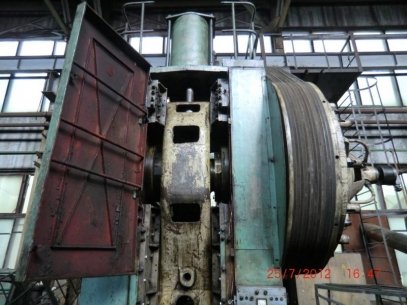

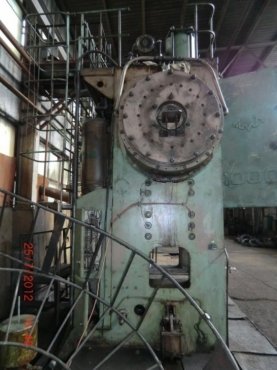

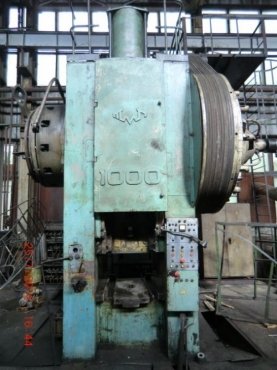

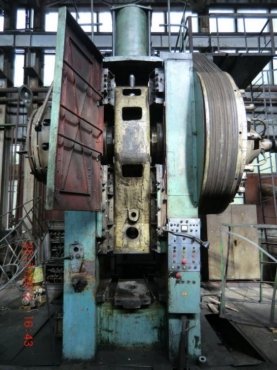

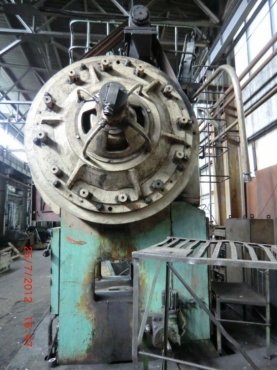

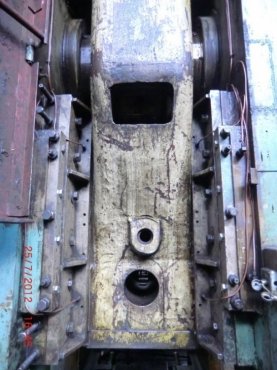

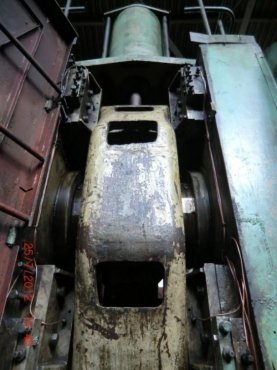

Hot forging crankshaft press VORONEZH K04.019.840 made in 1984, Russia.
Specifications:
Tonnage: 1000 ton
Slide stroke: 250 mm
Frequency of slide strokes: 90/1 min
Distance between table and punch plate of slider in case of upper table location: 560 mm
Adjustment of distance between table and slider: 20 mm
Upper ejector:
-Stroke: 40 mm
-Power: 31,5 kN
Bottom ejector:
-Stroke: 40 mm
-Power: 50 kN

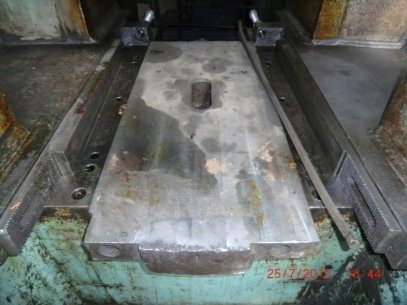

Bed dimensions: 770x990 mm

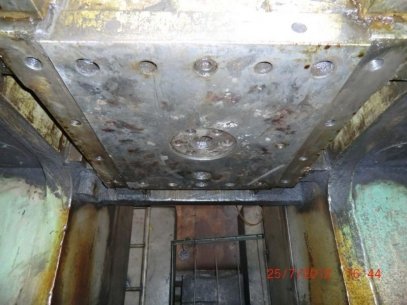

Slide dimensions: 720x720 mm
Window size in the column: 560x560 mm
Lower extractor: 5
Upper extractor: 3,15
