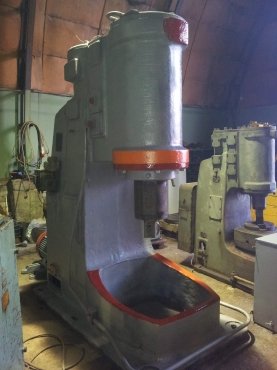

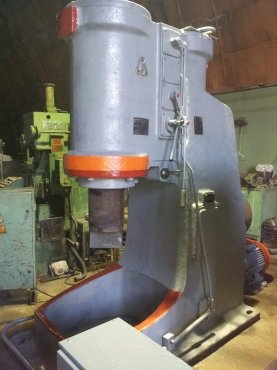

The hammer is in a very nice condition. There are no cracks or welded parts present. it is under power and ready for immediate delivery.
Specifications:

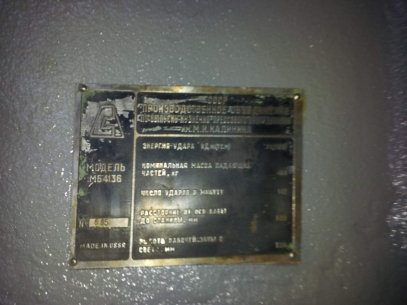

Manufactured by Kalinin plant (Russia)
Nominal weight of falling parts, kg 400
Energy of impact, Kj 11
The greatest number of impacts in a minute, 142
Ram axis-to-frame distance, mm 530
Working zone daylight, mm 530
Die impression size, mm 250 x 90
Lower die impression-to-floor distance, mm 750
Optimum workpiece cross-sectional dimensions, mm:
- square 100
- rounded 115
Main electric motor power, kW 30
Weight of a hammer with an anvil-block, kg 13100
