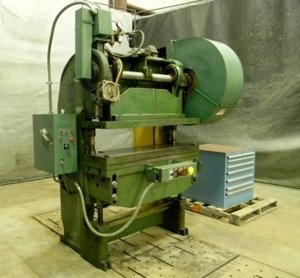

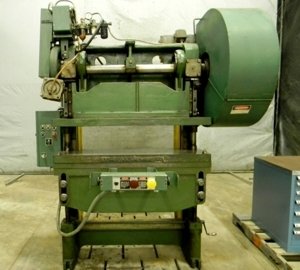

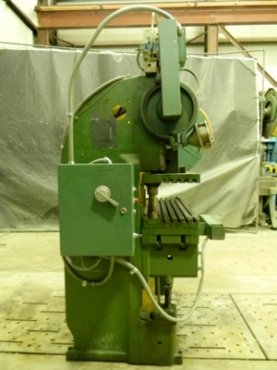

40 TON ROUSSELLE GAP FRAME, DOUBLE CRANK PRESS - PREOWNED
Model NO.: #4W48
Capacity: 40 TON
Stroke: 2"
Shut Height to Bed: 11"
Bed Area: 48" RL X 14" FB
Ram Adjustment: 5"
Ram Area: 37" RL X 9" FB
Speed: 110 SPM
Dist Uprights/Floor to Bed: 37-1/2" / 31-36"
Electrics: 3 HP, 1160 RPM, 208-220/440-3-60V

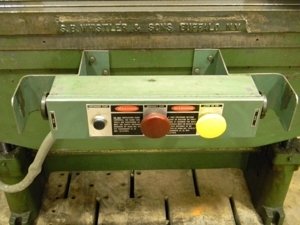

MOTOR & PALM BUTTON CONTROLS
Approx. Dimensions: 8' H X 6' RL X 4' FB
Approx. Weight: 6,000 LBS.
Equipped With: CAST STEEL FRAME CONSTRUCTION

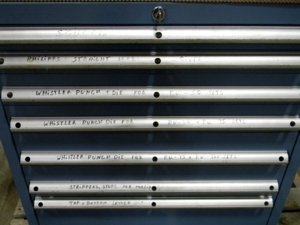

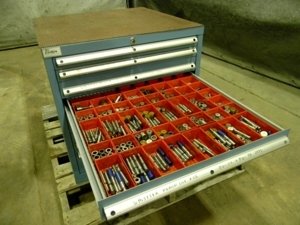

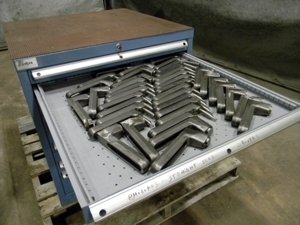

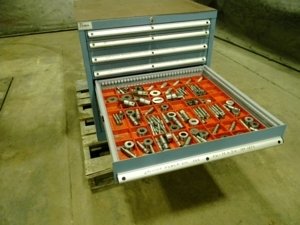

BOLSTER PLATES AND A CABINET OF TOOLING
(2) SPRING TYPE COUNTERBALANCES
PRODUCTION COUNTER
FLOOR MOUNTED BASE

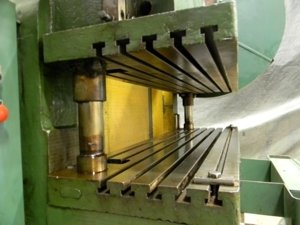

Whistler Die Set: (2) 2-1/4" X 48" RL X 14" FB (T-SLOTTED)
Year: 1962
Condition: VERY GOOD
Location: COLUMBIA, TN (Nashville)
