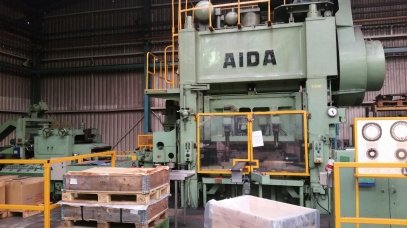

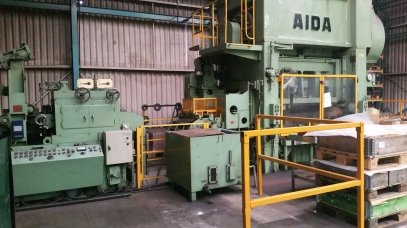

AIDA 300 ton High Speed Press Line PDA-30(3)

No longer required in our production.
Fully overhauled in 2003 and had little use since.
Still under power.

Specification:
300 tons
Stroke: 75mm
Strokes per minute: 30-150
Die height:(adj up stroke down) 550mm
Slide adjustment: 80mm
Bed Area: 1840x1090mm
Feed length range: 600-1200mm

Roll feed

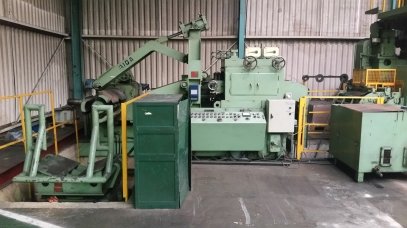

Leveller LA-8023:
Material width 200-800mm
Material thickness 0.5-1.0 mm

Decoiler EAA-5-80
Coil weight: 5000kg
coil diameter: 508x1300mm

Coil car C-5-80:
Coil weight 5000kg
coil width 200-800mm
coil lift range 400mm
coil transverse range 1500

End shearer.
