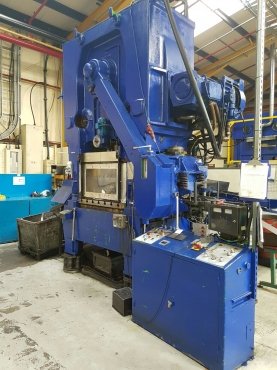

One used Bruderer BSTA 110H high speed punching press.
Year of mfg 1977. Swiss origin.
110 tons nominal capacity.
Adjustable stroke 16 – 75 mm.
Ram adjustment 89 mm.
Speed range 100 to 850 SPM max.
Bolster (table) clamping area 1150 mm x 1070 mm.
Max tool loading width 1170 mm left to right.
Fitted with roll feed BBV 320/200 on right-hand side.
Max width of strip 400 mm.
Max strip thickness 12 mm.
Spring feet dampers.
Power supply 400 Volt, 50 Hz.
Weight of machine approx 24600 kgs.
