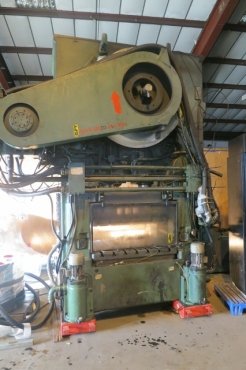

One used Bruderer BSTA 125H high speed press.
Year of manufacture 1992. Swiss Origin.
125 ton capacity (1250 kN).
Adjustable stroke: 16 - 75 mm.
Manual stroke adjustment
Variable speed: 100 - 850 SPM max.
Bolster area: 1150 x 1070 mm.
Ram area: 1040 x 600 mm.
Ram adjustment: 89 mm.
Equipped with BBV 320/200 roll feed on left-hand side.
Max strip width 400 mm. Max strip thickness 12 mm.
Feed angle 180°.
Strip inlet height 80-180 mm
Spring feet dampers fitted. oil cooler.
Power supply 415 Volt, 50 Hz.
Weight 26000 kgs approx.
